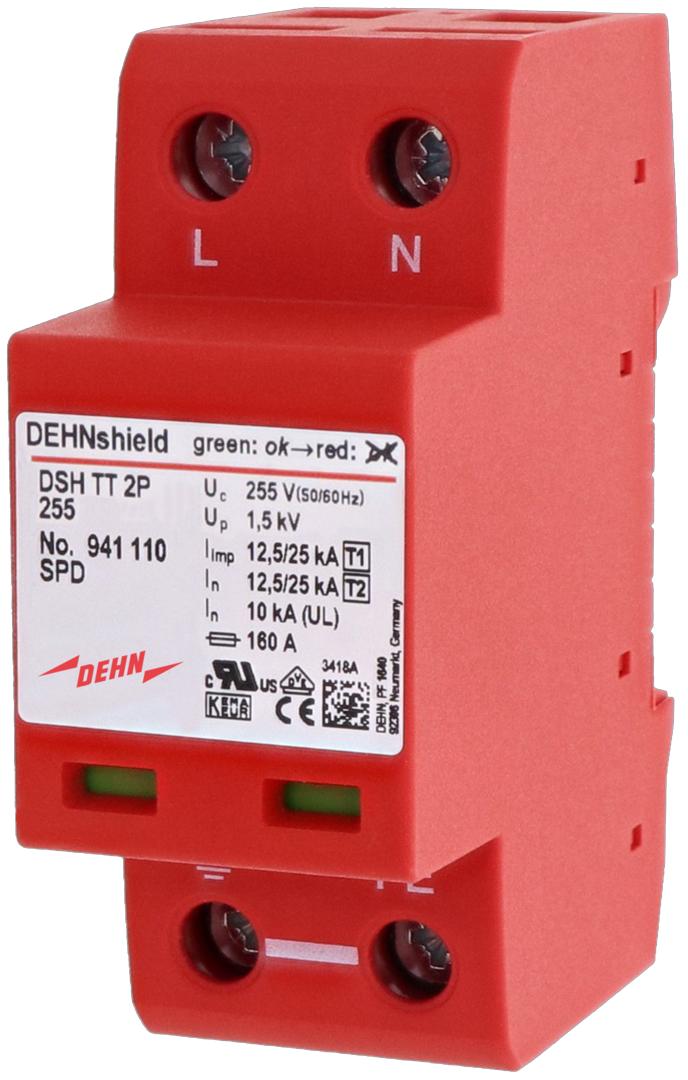

Dehnshield TT 2P 255 Type 1+2 Single Phase Arrester - 941110
The Dehn DEHNshield combined surge arrester employs type 1 and type 2 spark-gap technology in accordance with EN 61643-11. Its compact design, with a width of just 1 module/pole, allows for implementation in residential settings and other special applications. It's effective in protecting terminal equipment and can safeguard low-voltage installations from surges, even in the event of direct lightning strikes. The device operates with a maximum continuous AC voltage of 255V, a nominal AC voltage of 230V, and a safety level of 1.5kV. Designed for installation at the boundaries from 0A to 2 according to the lightning protection zone concept.
- Regular price
- $425.19 USD
We sell only to registered businesses
Description
The Dehn DEHNshield combined surge arrester employs type 1 and type 2 spark-gap technology in accordance with EN 61643-11. Its compact design, with a width of just 1 module/pole, allows for implementation in residential settings and other special applications. It's effective in protecting terminal equipment and can safeguard low-voltage installations from surges, even in the event of direct lightning strikes. The device operates with a maximum continuous AC voltage of 255V, a nominal AC voltage of 230V, and a safety level of 1.5kV. Designed for installation at the boundaries from 0A to 2 according to the lightning protection zone concept.
