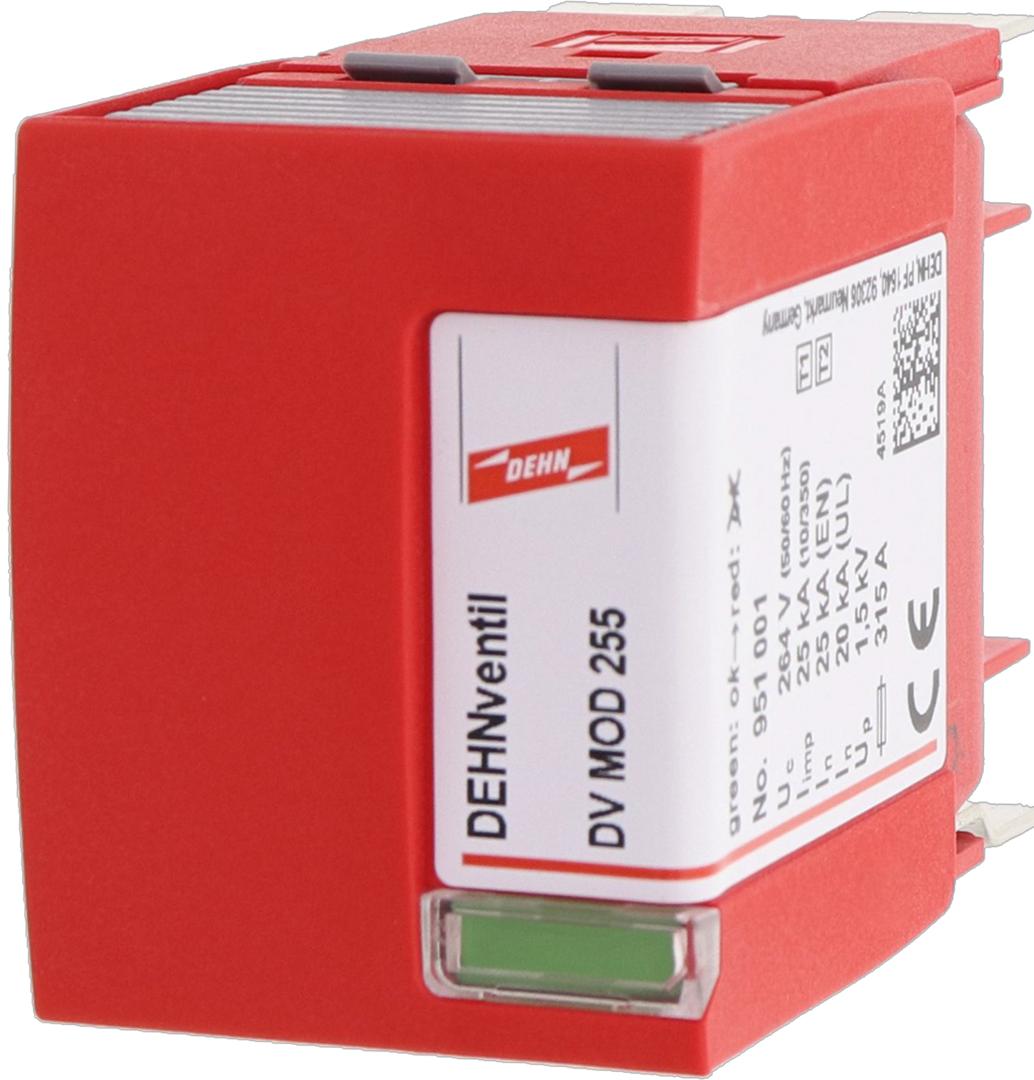

DEHN Spark Gap Protection Module Type 1 and 2 - 951001
The DEHN DEHNventil is a combined energy technology diverter suitable for IT, TN, TN-C, TN-C-S, TN-S, TT and other network forms. It features a single pole and provides lightning surge protection with a response of 25kA during thunderstorms. The device operates at a maximum continuous AC voltage of 264V and a nominal AC voltage of 230V. This type 1 protection module, according to EN 61643-11, is spark-gap-based and designed for the DEHNventil modular. It comes with a high safety level of 1.5kV.
- Regular price
- $365.60 USD
Description
The DEHN DEHNventil is a combined energy technology diverter suitable for IT, TN, TN-C, TN-C-S, TN-S, TT and other network forms. It features a single pole and provides lightning surge protection with a response of 25kA during thunderstorms. The device operates at a maximum continuous AC voltage of 264V and a nominal AC voltage of 230V. This type 1 protection module, according to EN 61643-11, is spark-gap-based and designed for the DEHNventil modular. It comes with a high safety level of 1.5kV.
