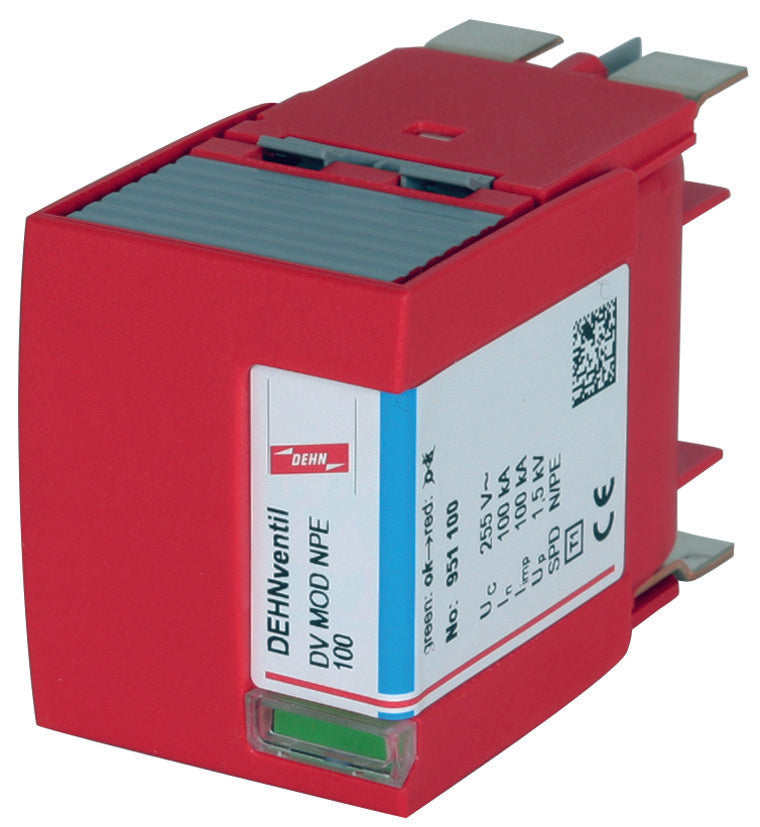

Dehn N-PE Spark-Gap-Based Protection Module Type 1+2 For Dehnventil - 951100
The DEHN DEHNventil is a combined surge protector suitable for TN-S and TT networks, with 4 poles and capable of handling a lightning impulse current of 100kA (10/350). It is designed for a maximum continuous voltage of 264V AC and a nominal voltage of 230V AC. This device offers a safety level of 1.5kV on all levels: L-N, L-PE. It also boasts a follow current extinguishing capability of 100kA. It is a Type 1 protector, compliant with EN 61643-11. This module is based on spark-gap technology, ensuring reliable protection.
- Regular price
- $461.86 USD
We sell only to registered businesses
Description
The DEHN DEHNventil is a combined surge protector suitable for TN-S and TT networks, with 4 poles and capable of handling a lightning impulse current of 100kA (10/350). It is designed for a maximum continuous voltage of 264V AC and a nominal voltage of 230V AC. This device offers a safety level of 1.5kV on all levels: L-N, L-PE. It also boasts a follow current extinguishing capability of 100kA. It is a Type 1 protector, compliant with EN 61643-11. This module is based on spark-gap technology, ensuring reliable protection.
