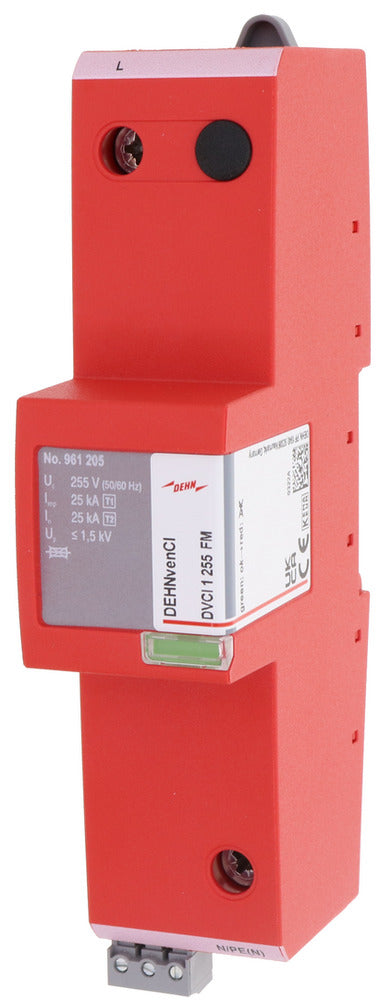

DEHN DVCI 1 255 FM Combined Arrester Type 1+2 Single Phase Protection - 961205
The DEHNvenCI is a single-pole combined lightning current and surge arrester with an integrated backup fuse that complies with type 1 and type 2 according to EN 61643-11 standards. It offers maximum availability due to RADAX FLOW follow current limitation and is capable of protecting terminal equipment. It is designed to guard low-voltage consumer's installations against surges and even direct lightning strikes. It can be installed following the lightning protection zone concept at the boundaries from 0A - 2. It safely operates at an AC nominal voltage of 230V with a maximum continuous voltage of 255V. It can handle a lightning impulse current of 25kA and a 1.5kV safety level.
- Regular price
- $406.79 USD
We sell only to registered businesses
Description
The DEHNvenCI is a single-pole combined lightning current and surge arrester with an integrated backup fuse that complies with type 1 and type 2 according to EN 61643-11 standards. It offers maximum availability due to RADAX FLOW follow current limitation and is capable of protecting terminal equipment. It is designed to guard low-voltage consumer's installations against surges and even direct lightning strikes. It can be installed following the lightning protection zone concept at the boundaries from 0A - 2. It safely operates at an AC nominal voltage of 230V with a maximum continuous voltage of 255V. It can handle a lightning impulse current of 25kA and a 1.5kV safety level.
