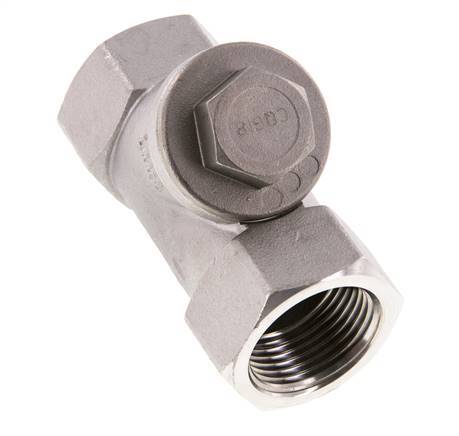

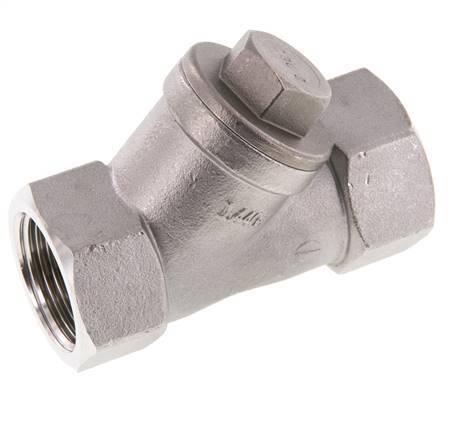

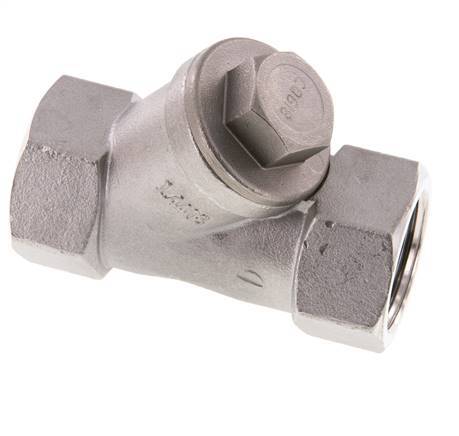

G1'' Stainless Steel 316 Y Check Valve PTFE 0.4/0.8-40bar - CLYS
G1 inch (F/F) check valve (brand Tameson) made of stainless steel with PTFE seal. For a maximum pressure of 40 bar and temperature range of -20 to 200°C.
- Regular price
- $85.96 USD
We sell only to registered businesses
Description
G1" Stainless steel check valve with parallel thread (BSPP) and PTFE seal. The minimum differential pressure across the non-return valve must be higher than 0.6 bar. The valve has a light spring to close the valve. The maximum operating pressure is 40 bar and the valve is suitable for temperatures between -20 and 200°C.
This non-return valve can be installed horizontally or vertically. The angle seat design leads to a higher flow rate than a same sized inline valve. The angle seat form is sometimes referred to as 'Y-shaped check valve' or Y check valve. Thanks to the high quality components of stainless steel 316 and PTFE, the valve is suited for high pressures, a large pressure range and a wide variety of (aggressive) media.
Pros:
- High lifespan thanks to the corrosion resistant stainless steel housing (casted 316)
- PTFE has a large temperature range and is resistant to almost all fluids
CLYS series
The CLYS Y check valves are made of stainless steel 316 and have PTFE sealing. They're available from G 1/4 up to 2 inch. With a PN 40 pressure rating and maximum temperatures of 200° C (392° F), the valves are suitable for harsh media such as steam.
