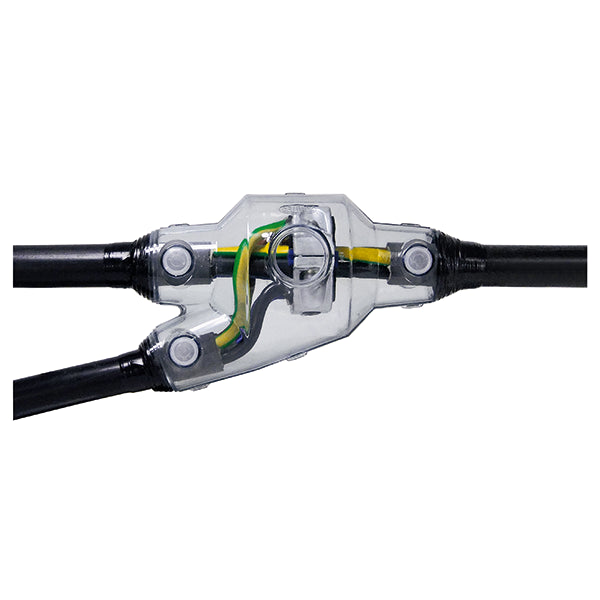

Cellpack Y Cable Junction Box - 147533

Cellpack Y Cable Junction Box - 147533
Cellpack Y Cable Junction Box - 147533
Image may vary slightly
See specifications for accurate information.
Reference: E2RGJ
Brand: Cellpack
Mfr. Part: 147533

Cellpack Y cable junction socket cast resin, nominal conductor cross-section main cable 25mm², type Y junction, nominal conductor cross-section branch cable 25mm², outer diameter branch cable 19 - 33mm, 5 conductors, outer diameter main cable 23 - 37mm, halogen-free, flame-retardant, rated voltage U0/U (Um) 0.6/1 (1.2) kV.

View all
$112.78 USD
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Cellpack Y cable junction socket cast resin, nominal conductor cross-section main cable 25mm², type Y junction, nominal conductor cross-section branch cable 25mm², outer diameter branch cable 19 - 33mm, 5 conductors, outer diameter main cable 23 - 37mm, halogen-free, flame-retardant, rated voltage U0/U (Um) 0.6/1 (1.2) kV.

Downloads

Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Type
Y-branch
Number of conductors
5
Nominal cross section conductor branch cable
25..25 mm²
Nominal cross section conductor main cable
25..25 mm²
Cable diameter branch cable
19..33 mm
Cable diameter main cable
23..37 mm
Mining sector approval
No
Suitable for
N(A)YY
Halogen free
Yes
