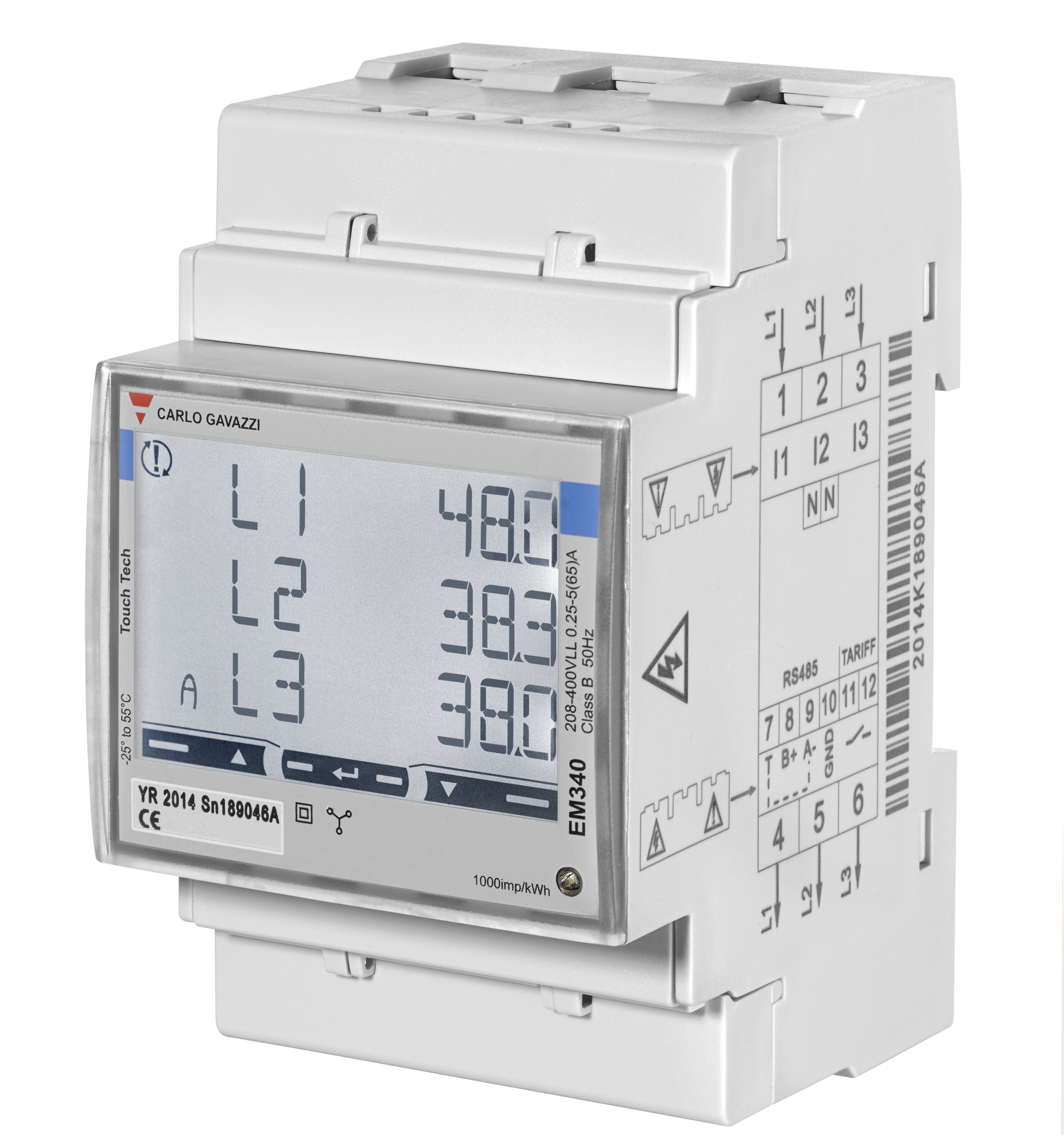

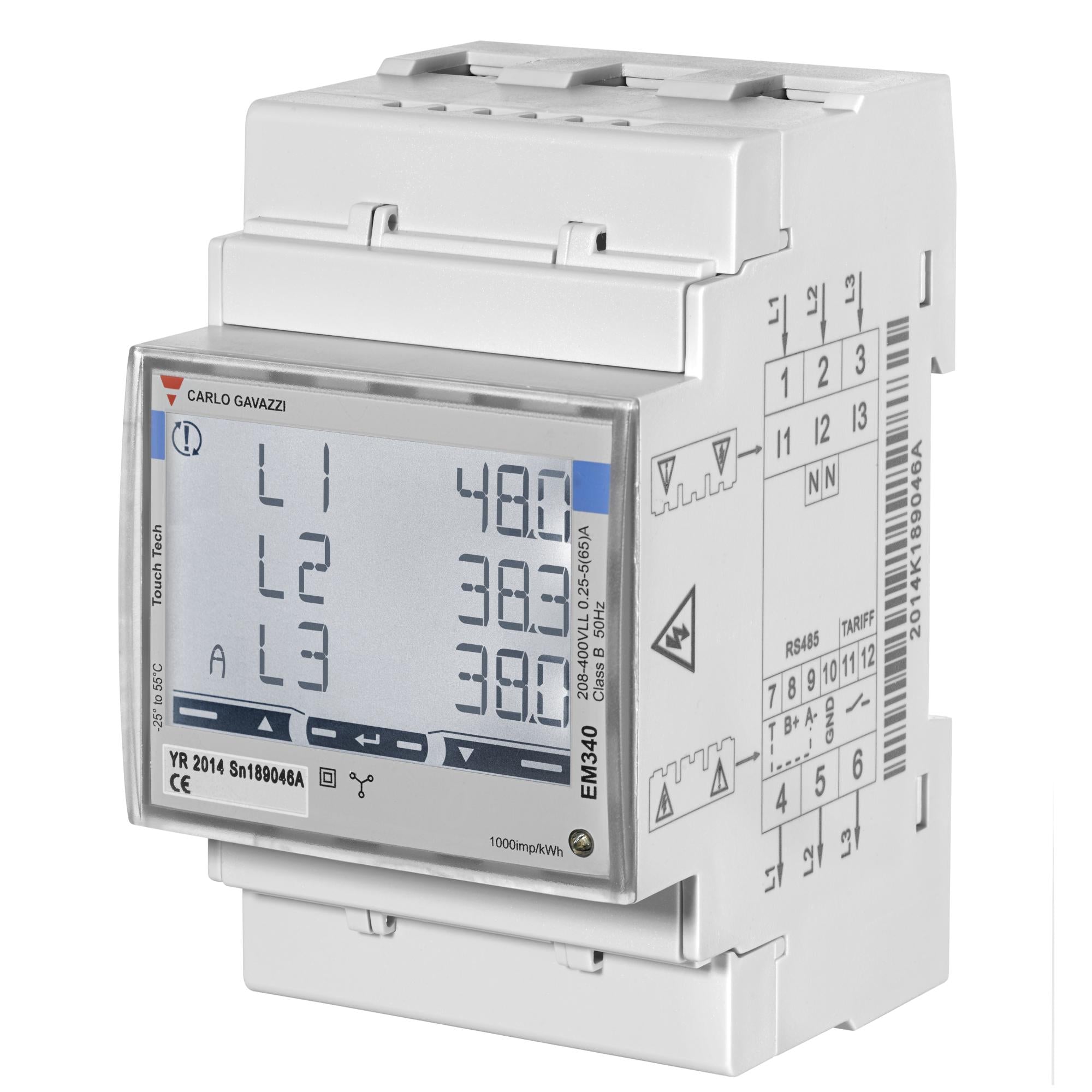

Carlo Gavazzi Electricity Meter - EM340DINAV23XO1X

Carlo Gavazzi Electricity Meter - EM340DINAV23XO1X
Carlo Gavazzi Electricity Meter - EM340DINAV23XO1X
Carlo Gavazzi Electricity Meter - EM340DINAV23XO1X
Carlo Gavazzi Electricity Meter - EM340DINAV23XO1X
Image may vary slightly
See specifications for accurate information.
Reference: T23JU
Brand: Carlo Gavazzi
Mfr. Part: EM340DINAV23XO1X

The carlo gavazzi em340 series is three-phase energy meter with backlit lcd display with integrated touch keypad. Particularly indicated for active energy metering and for cost allocation in applications up to 65 a (direct connection), with dual tariff management availability. It can measure imported and exported energy or be programmed to consider only. Pulse output. Self power supply. Protection degree for front is ip51. Easy connection or wrong current direction detection.

View all
$175.08
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

The carlo gavazzi em340 series is three-phase energy meter with backlit lcd display with integrated touch keypad. Particularly indicated for active energy metering and for cost allocation in applications up to 65 a (direct connection), with dual tariff management availability. It can measure imported and exported energy or be programmed to consider only. Pulse output. Self power supply. Protection degree for front is ip51. Easy connection or wrong current direction detection.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Type of meter
Electronic
Nominal current (In) (A)
5
Max. current (Imax) (A)
65
Nominal voltage (Un) N-L (V)
113 V to 265 V
Nominal voltage (Un) L-L (V)
196 V to 460 V
Frequency (Hz)
45 Hz to 65 Hz
Accuracy class
B
Pole type
Three conductor/four conductor
Model
Direct measurement
Energy type
Effective power and blind power
Suitable for
Purchase/supply
Tariff type
Two-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
No
Calibrated
Yes
Pulse output
Electrical
Pulse type
S0
Pulse rate (Imp/kWh (kvarh))
100 Imp/kWh (kvarh) to 1500 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
3
Type of interface
Other
EEC40 signature
No
With lock code
Yes
Number of positions total (counter)
8
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP51
Degree of protection (NEMA)
1
