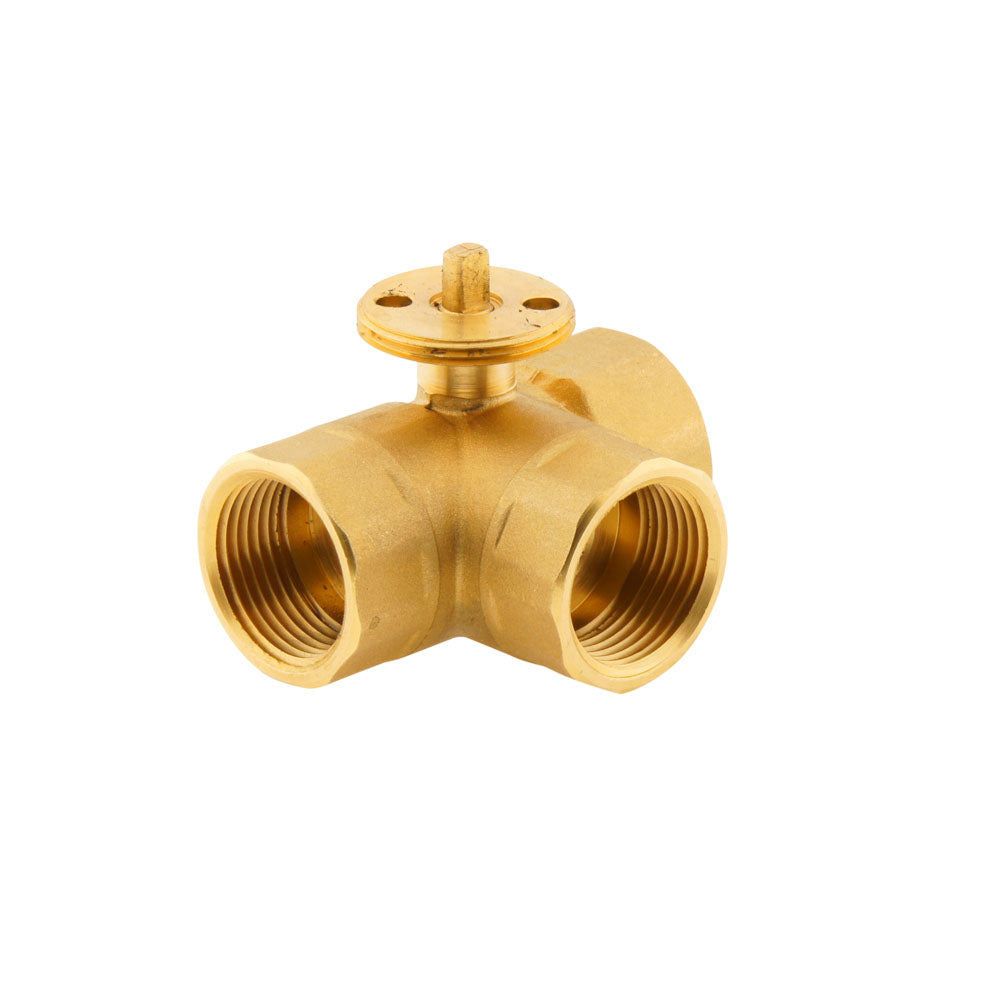

BW3 1'' 3/2-way ball valve
1 inch 3-way brass ball valve with chrome plated ball and PTFE seal. Suitable for liquids and gases (from -10 to 110°C). Regularly used in heating systems. The valve is compatible with the AW1 actuator. The orifice has a diameter of 18 mm, the Kv-value is 16 m3/h (266.7 l/min at dP=1 bar, water).
- Regular price
- $71.90 USD
Description
This 3/2 way ball valve by JP Fluid Control is meant to be electrically operated (compatible with AW1 actuator). The valve has G1 inch inner port threads (BSPP) and is suitable for neutral liquids and gases (-10 up to 110°C). This type of valve is often used in heating systems. A ball valve is less sensitive to dirt than a solenoid valve. It is however recommended to install a filter before the valve. The valve body is made of brass, and features a chrome plated ball and a seal of PTFE (Teflon). The orifice has a diameter of 18 mm and the valve has a Kv-value of 16 m3/hr. This means that the flow is approximately 266.7 l/min at a differential pressure of 1 bar. This 3/2-way ball valve is best used to change flow direction from one output to the other, not stop the flow.
Important
- Suitable for clean gases and liquids, including cold & hot water.
- Make sure that the valve is suitable for the application and that the materials are suitable for the medium and the temperature
Note: this valve is not suited for dry gases such as unlubricated compressed air.
