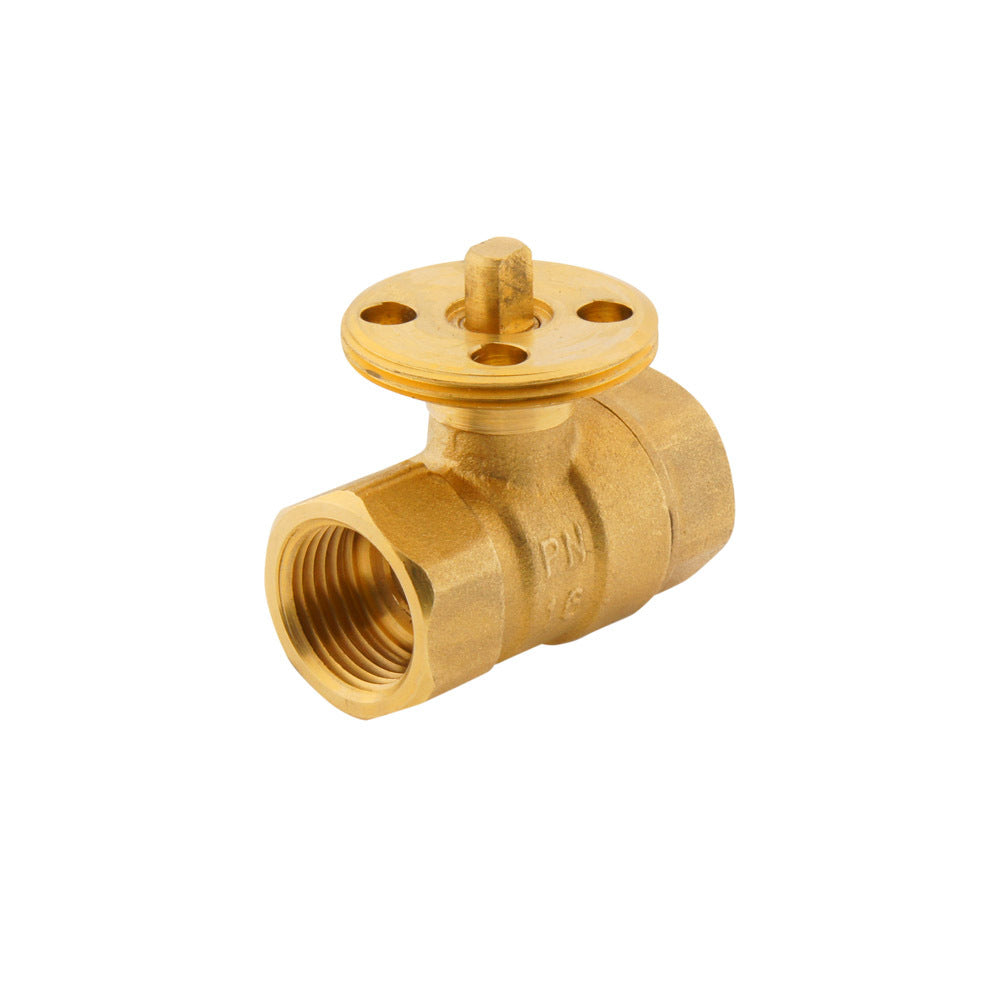

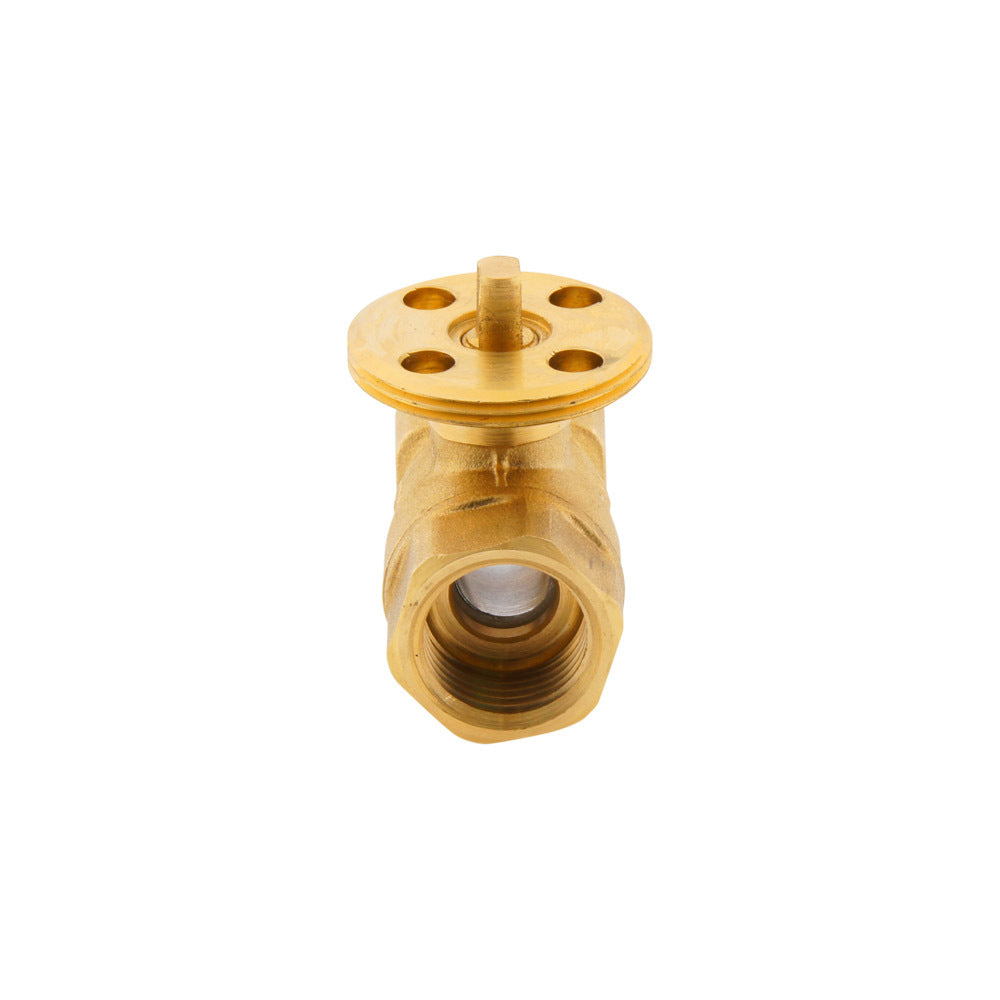

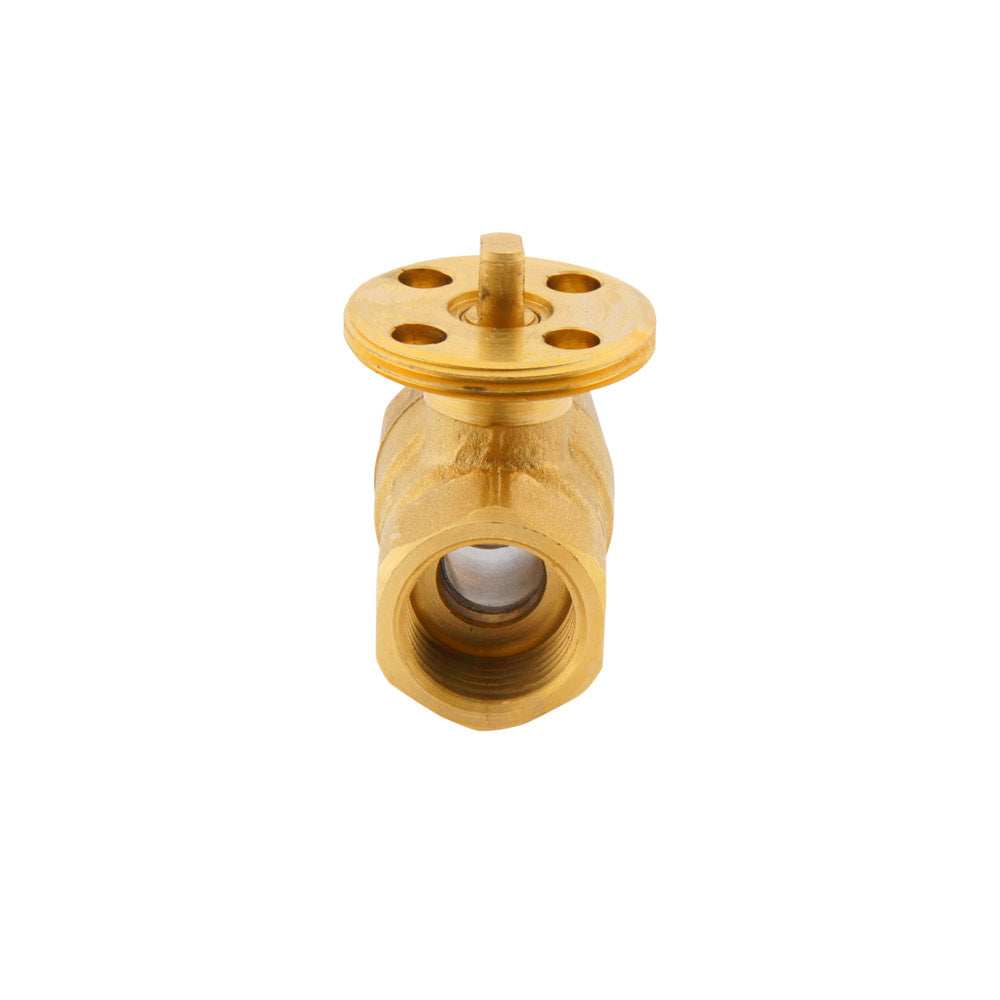

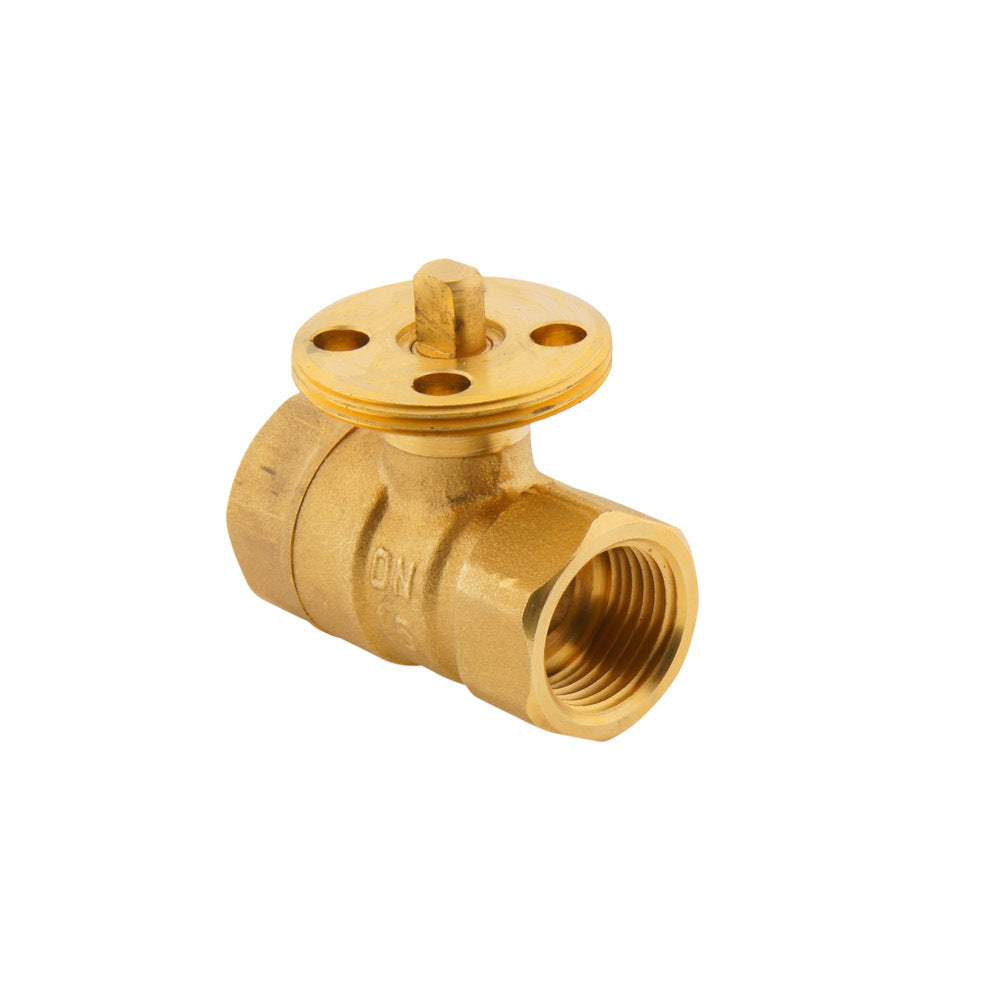

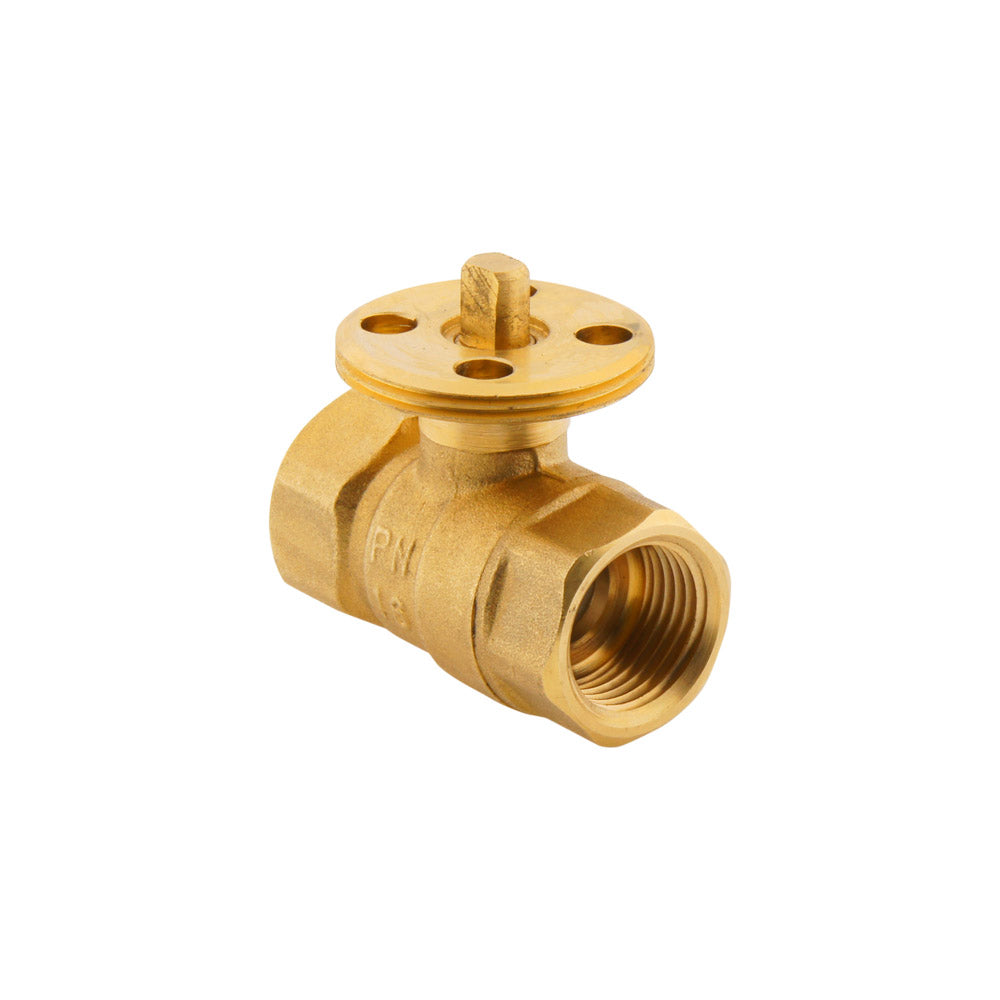

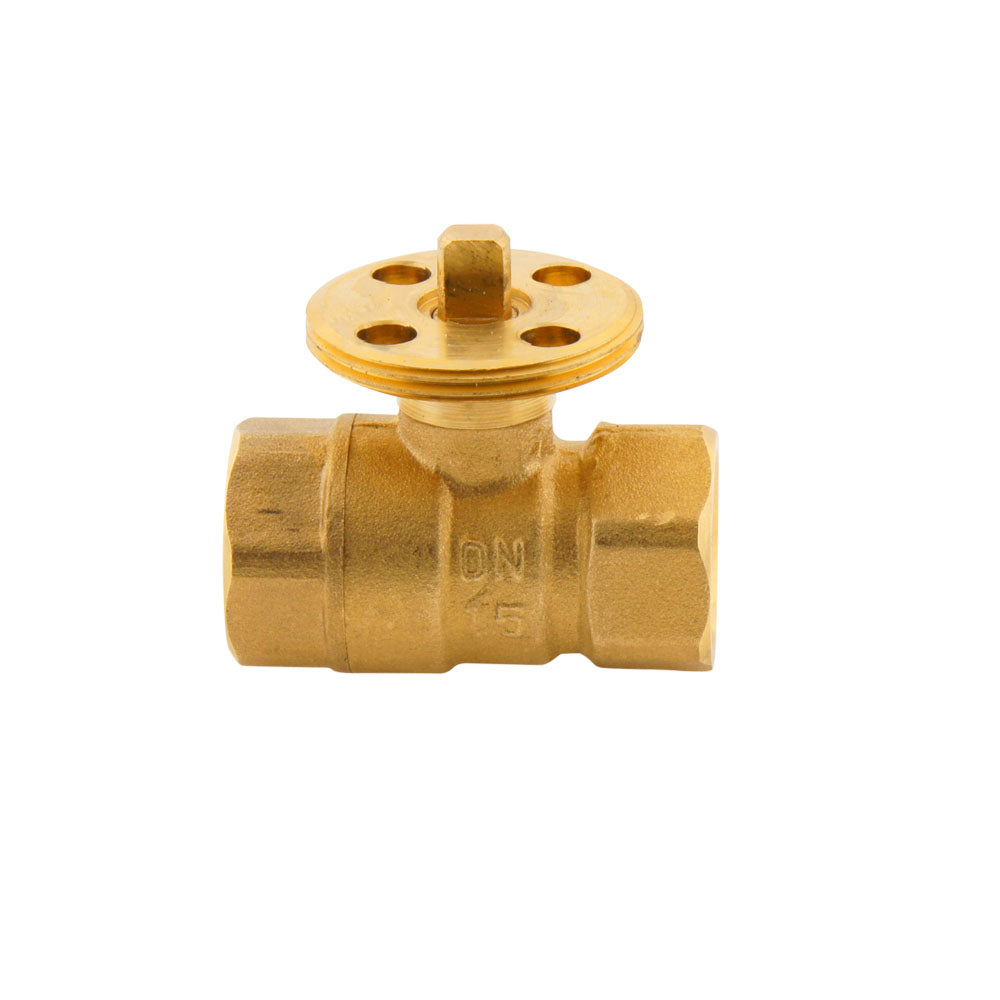

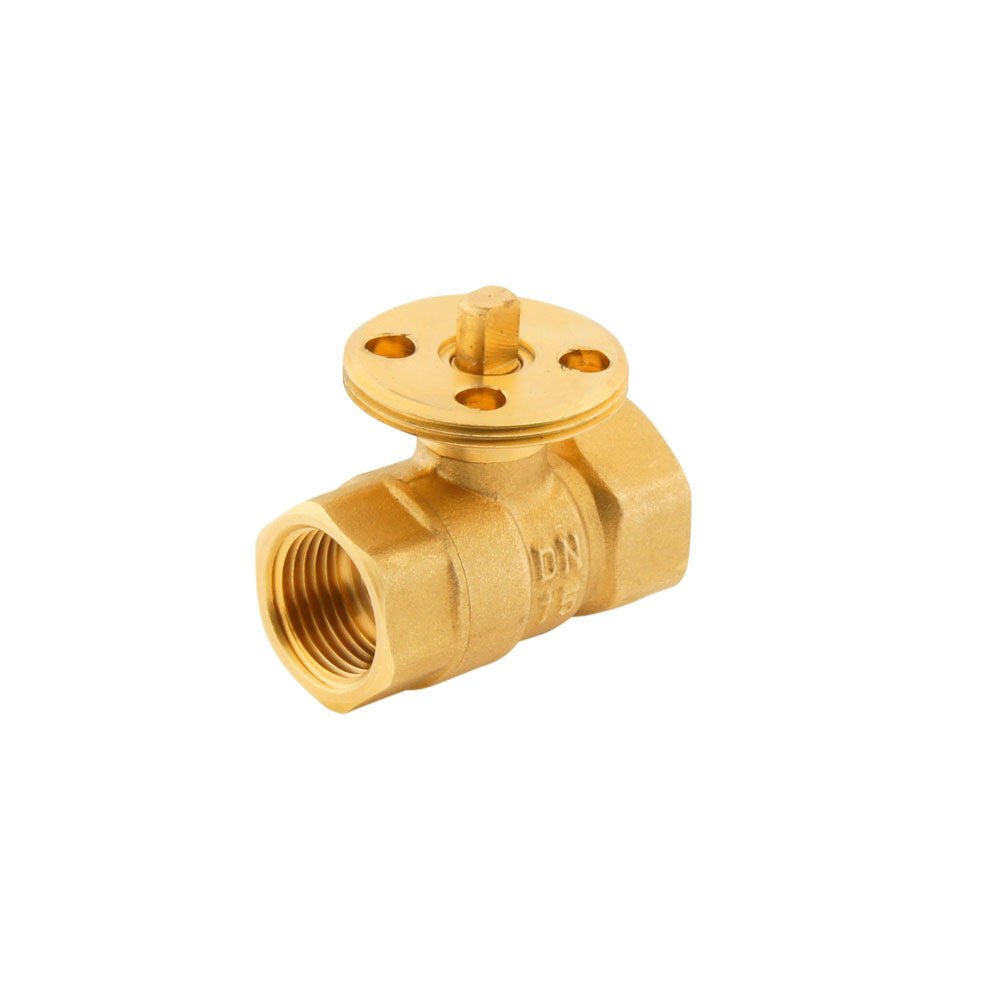

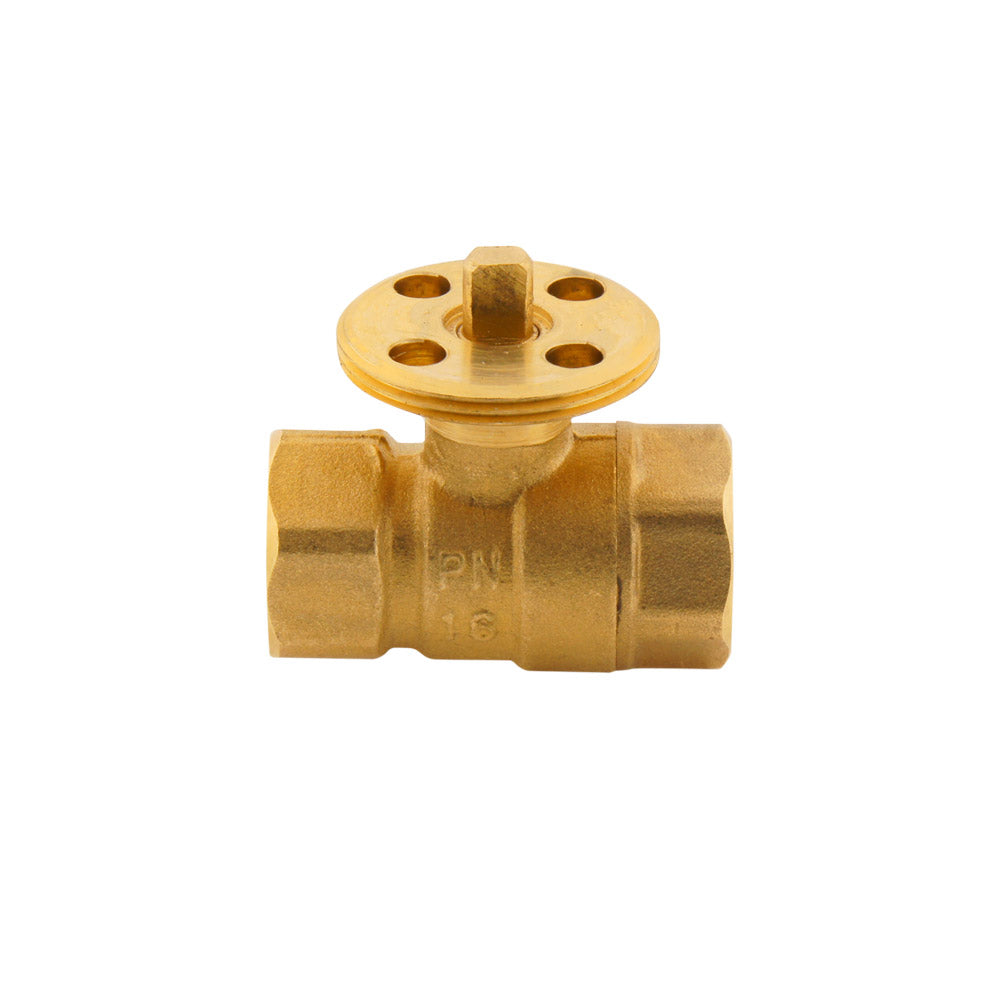

BW2 1/2'' 2/2-way ball valve
1/2 inch 2/2 way brass ball valve with chrome plated ball and PTFE seal. Suitable for liquids and gases (from -10 to 110°C). Regularly used in heating systems. The valve is compatible with the AW1 actuator. The orifice has a diameter of 12mm, the Kv-value is 8.6m3/h (143.4 l/min at dP=1 bar, water).
- Regular price
- $20.05 USD
Description
This 2/2 way ball valve by JP Fluid Control is meant to be electrically operated (compatible with AW1 actuator). The valve has G1/2 inch inner port threads (BSPP) and is suitable for neutral liquids and gases (-10 up to 110°C). This type of valve is often used in heating systems. A ball valve is less sensitive to dirt than a solenoid valve. It is however recommended to install a filter before the valve. The valve body is made of brass, and features a chrome plated ball and a seal of PTFE (Teflon). The orifice has a diameter of 12 mm and the valve has a Kv-value of 8.6 m3/hr. This means that the flow is approximately 143.3 l/min at a differential pressure of 1 bar.
Important
- Suitable for clean gases and liquids, including cold & hot water.
- Make sure that the valve is suitable for the application and that the materials are suitable for the medium and the temperature
Note: this valve is not suited for dry gases such as unlubricated compressed air.
Assembly
