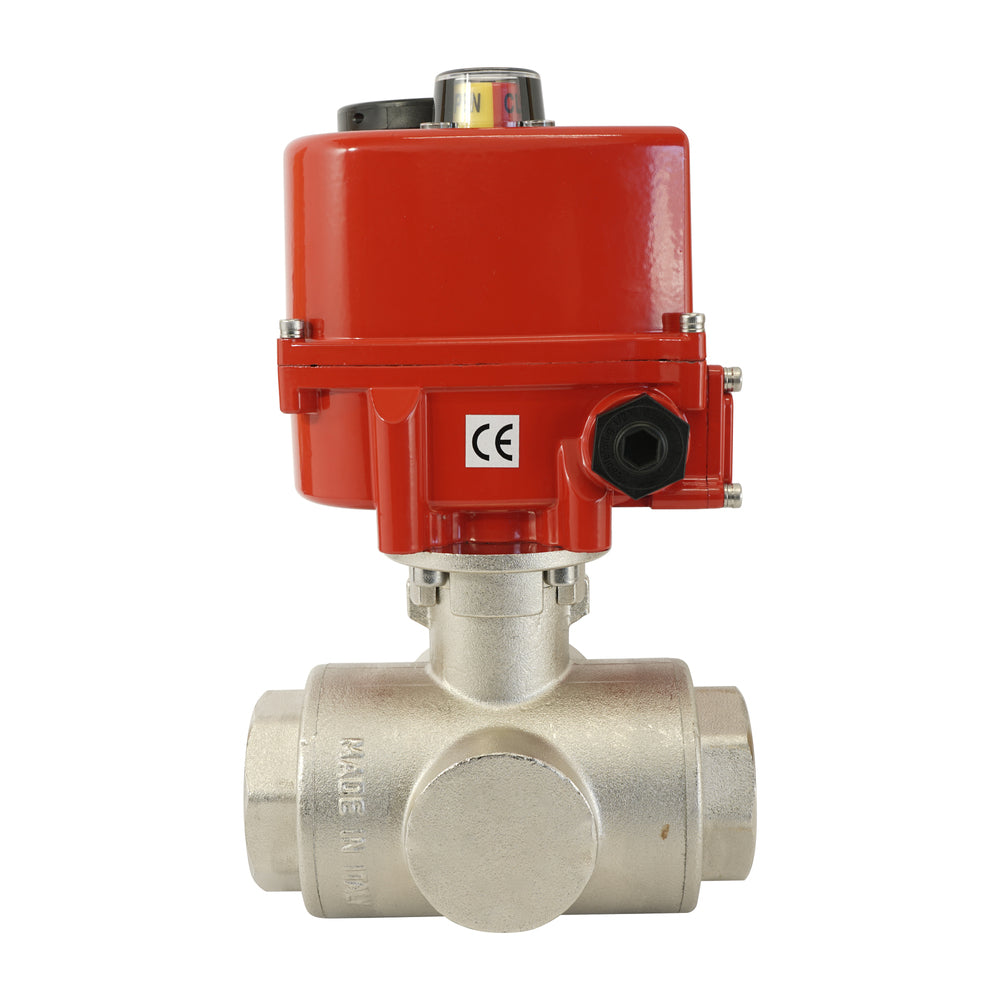

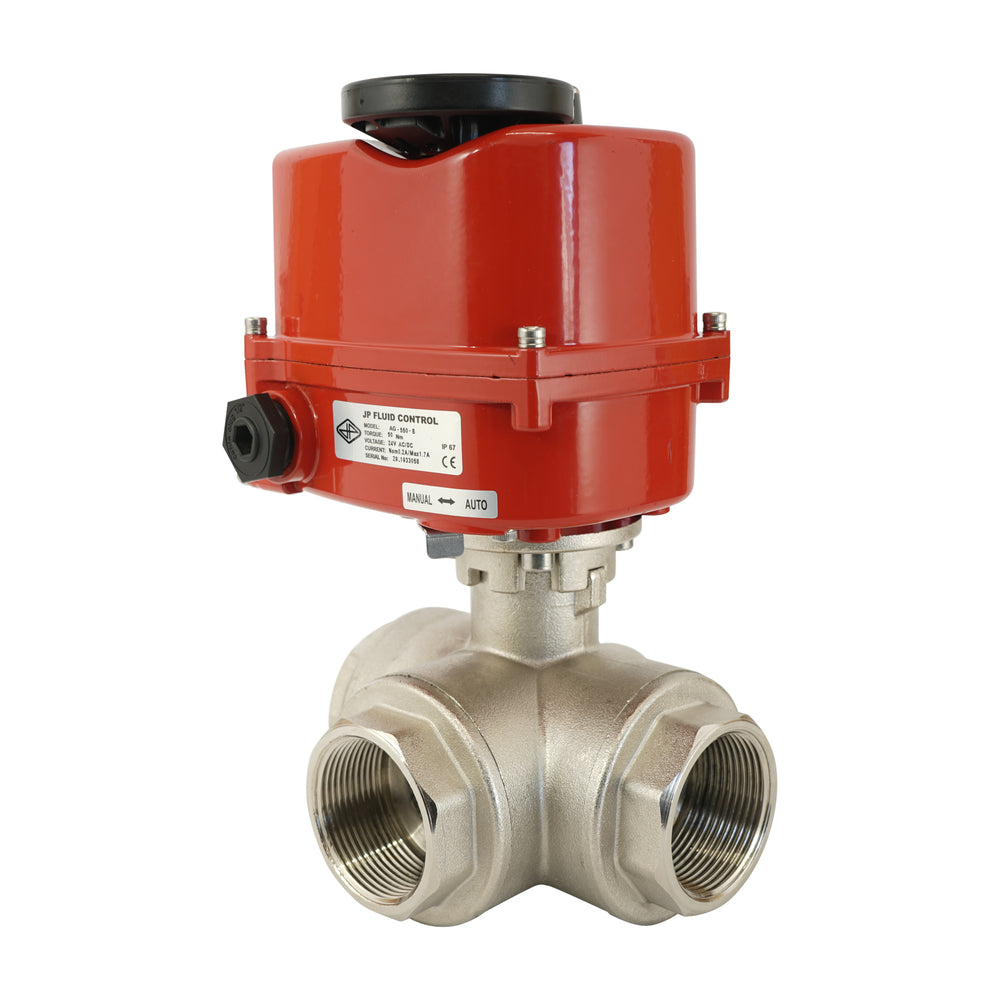

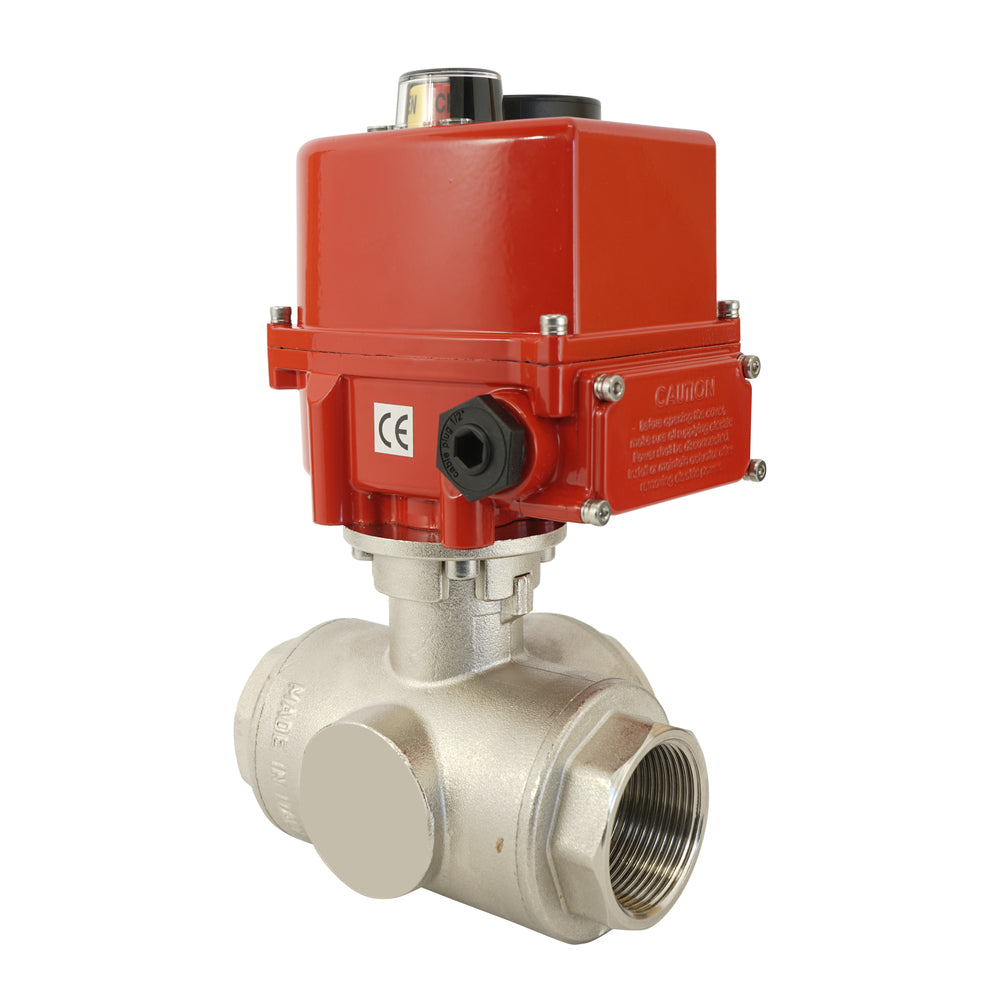

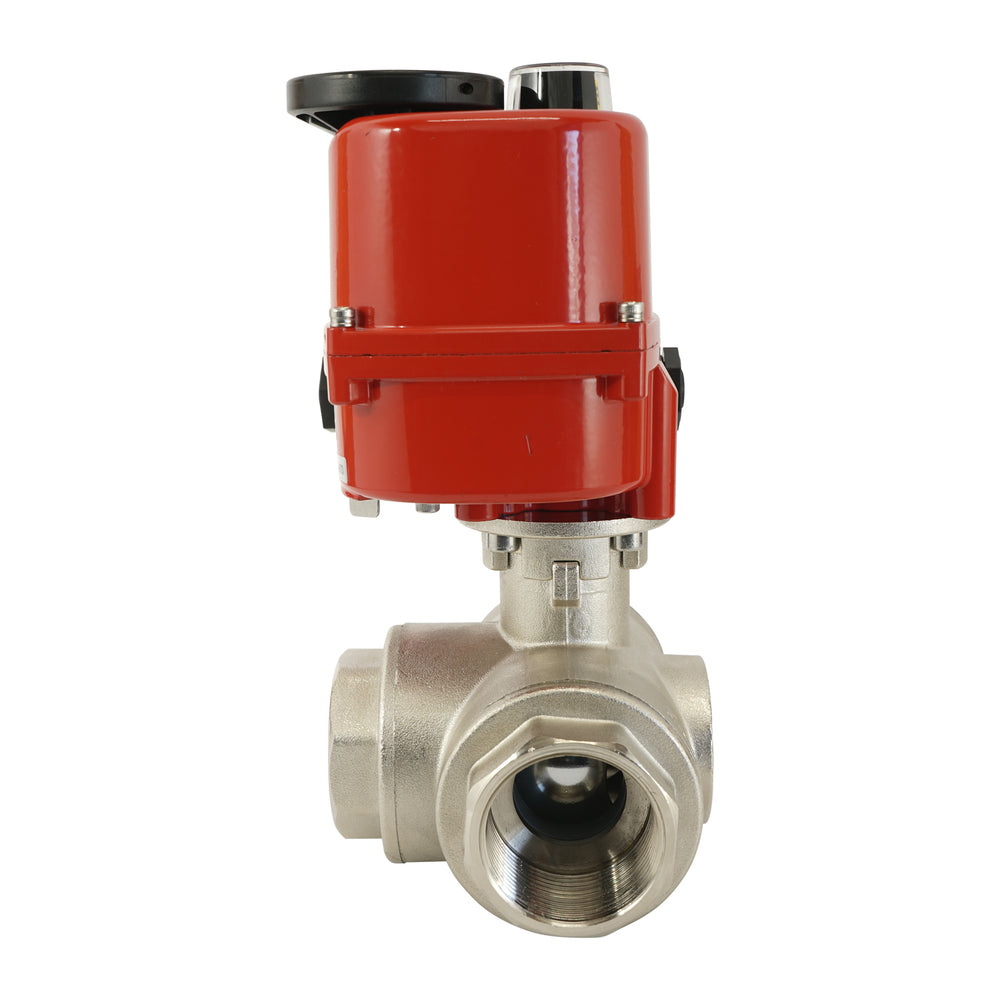

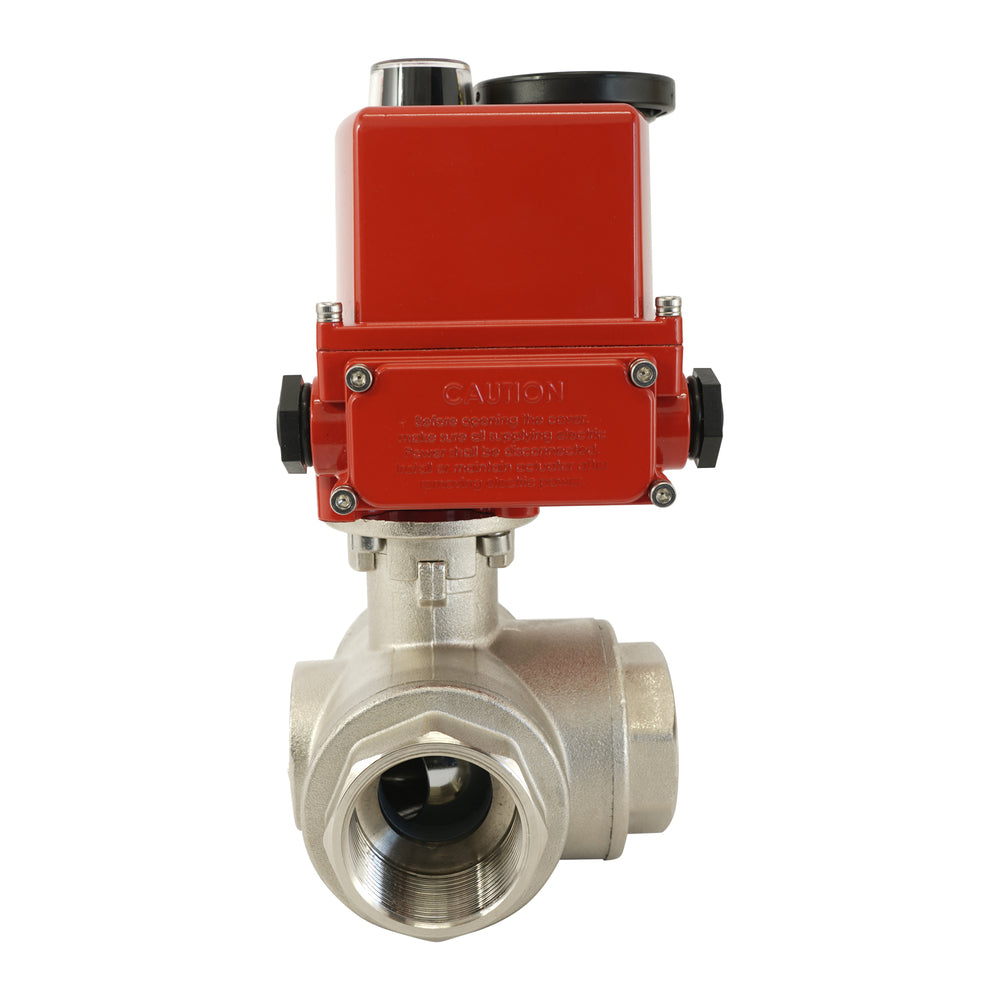

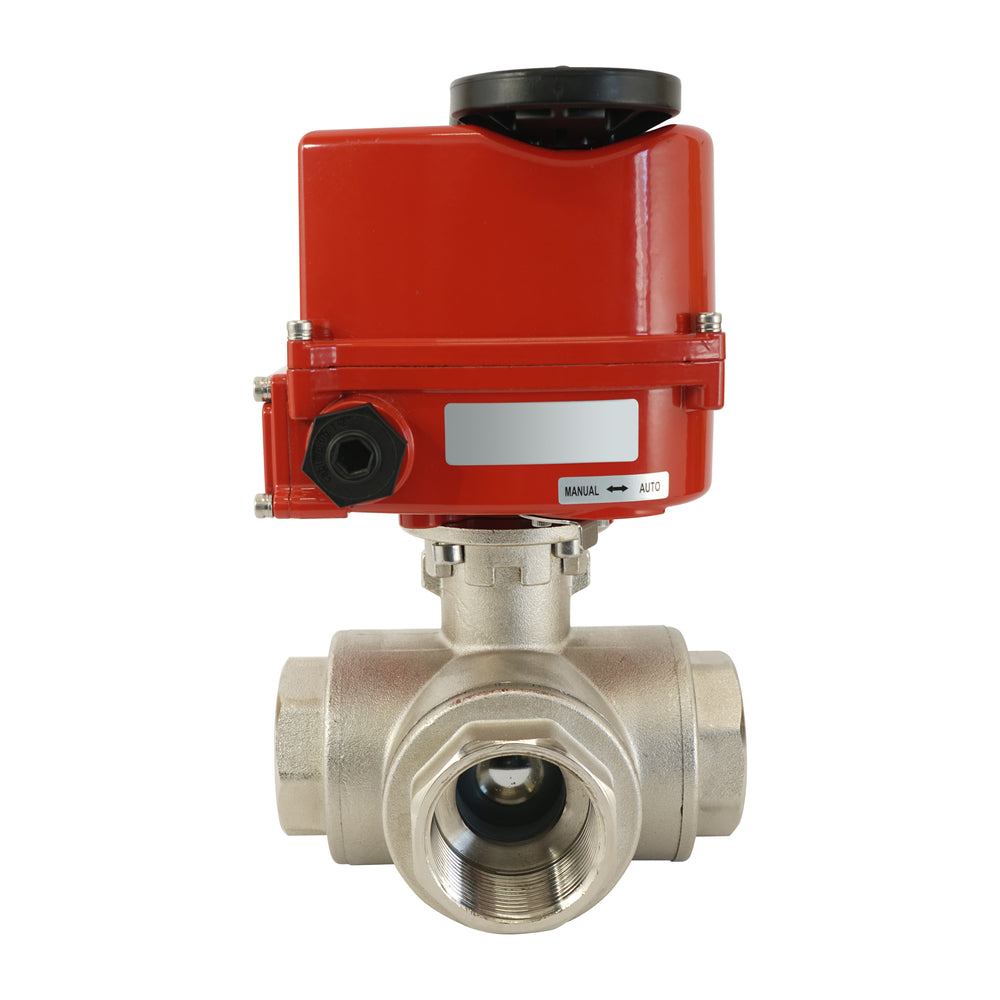

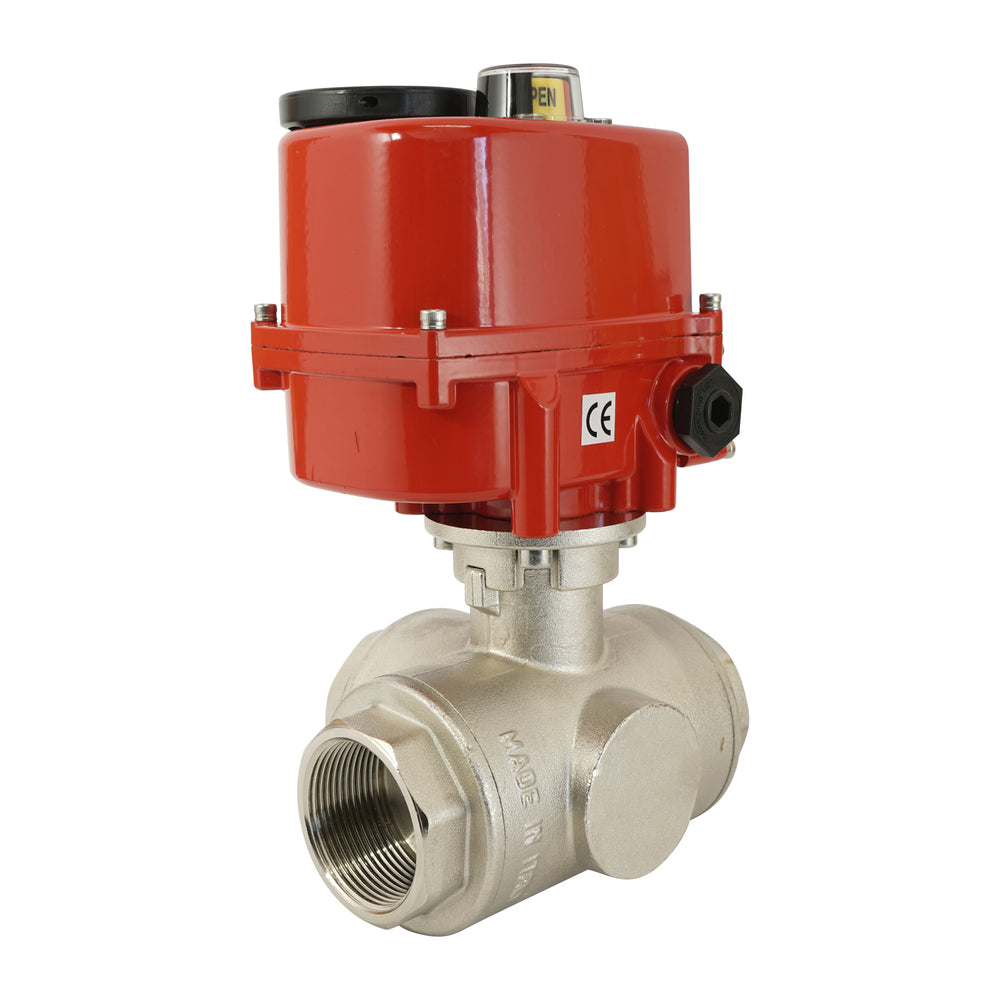

G 1 1/4 inch 3-Way Brass Modulating electric ball valve (L-port) 24 V AC/DC
This modulating electrical actuator is offered in combination with a 3-way brass ball valve (L-mm bore). Actuator requires 24 V AC/DC to operate. It is a modulating actuator with a digital positioning system (DPS). The ball valve has three G 1 1/4 inch inner thread connection points. Orifice of 25 mm (Kv value 21 m3/h), medium temperature range of -10 to 100 °C, and a max pressure of 40 bar. With the actuator’s housing, it gives the unit a protection of IP67 for an environmental temperature of -10 to 50 °C.
- Regular price
- $954.38 USD
We sell only to registered businesses
Description
This modulating electrical actuator is offered in combination with a 3-way ball valve. It can turn the valve from 0-90 degrees with an operating torque of 40 Nm (higher break torque so please see the manual) in a time of 13 seconds. It requires a supply voltage of 24 V AC/DC, has a duty cycle of S2, and comes with a visual positioning indicator on top of the unit to clearly see valve position. As a modulating actuator, it is equipped with a digital positioning system (DPS) meaning it can position the valve anywhere between 0-90 degrees. It requires a control signal of 4-20 mA (and 0-10V, 2-10V) for positioning. The actuator is mounted on the valve via the ISO 5211 F03, F05 or F05 flange. The 3-way brass valve has three connection points of G 1 1/4 inch. The medium flows through a 25 mm bore (Kv value of 21 m3/h) and the temperature can be between -10 to 100 °C at a pressure under 40 bar. It has a spindle seal material of PTFE. Due to the actuator's durable housing, it has a protection rating of IP67 and can withstand an environmental temperature of -10 to 50 °C. Before connecting the actuator, please read the manual carefully.
Pros:
- It is a modulating actuator with a digital positioning system (DPS) to position the valve anywhere between 0-90 degrees with a control signal of 4-20 mA
- It has a robust IP67 housing
- It has a clear visual position indicator to see the valve’s state
Cons:
- In comparison to a pneumatic actuator of the same size, the operating speed is slower
AG-540-B-DPS series
BL3BA Ball valve
The BL2BA series ball valves are reliable 3-way ball valves with a L-mm bore or T-mm bore. The housing is made of brass, the ball is made of hard chromed brass and the valve seats are made of PTFE/FKM. The valve is suitable for various media, such as water, oil or air up to a maximum of 40 bar. Suitable for temperatures between -20 and 160 degrees Celsius and available from size G 1/4 till G 2. For corrosive or aggresive media, a valve made of stainless steel is better suited. Ball valves from the BL3BA series all have an ISO 5211 top flange (from F03 to max. F05) which makes the mounting of an actuator possible.
AG5 Actuator
The AG5 electric valve actuators from JP Fluid Control offers an extensive list of standard features that includes safety override against damage from over-torque and manual override. Actuators are also available with different options like modulating, called DPS (Digital Positioning System). The series has an operating torque range between 40-50 Nm. The AG5 DPS modulating actuator can be controled with 4-20 mA, 0-10V or 2-10V.
Spare parts
Below is a list of the spare parts for this unit should they be needed. Simply use the SKU number in our search bar to find the proper part. Ball valve: BL3BAL-114
Actuator: AG-540-B-DPS
Note: This product is delivered in separate parts, but with the required mounting accessories.
