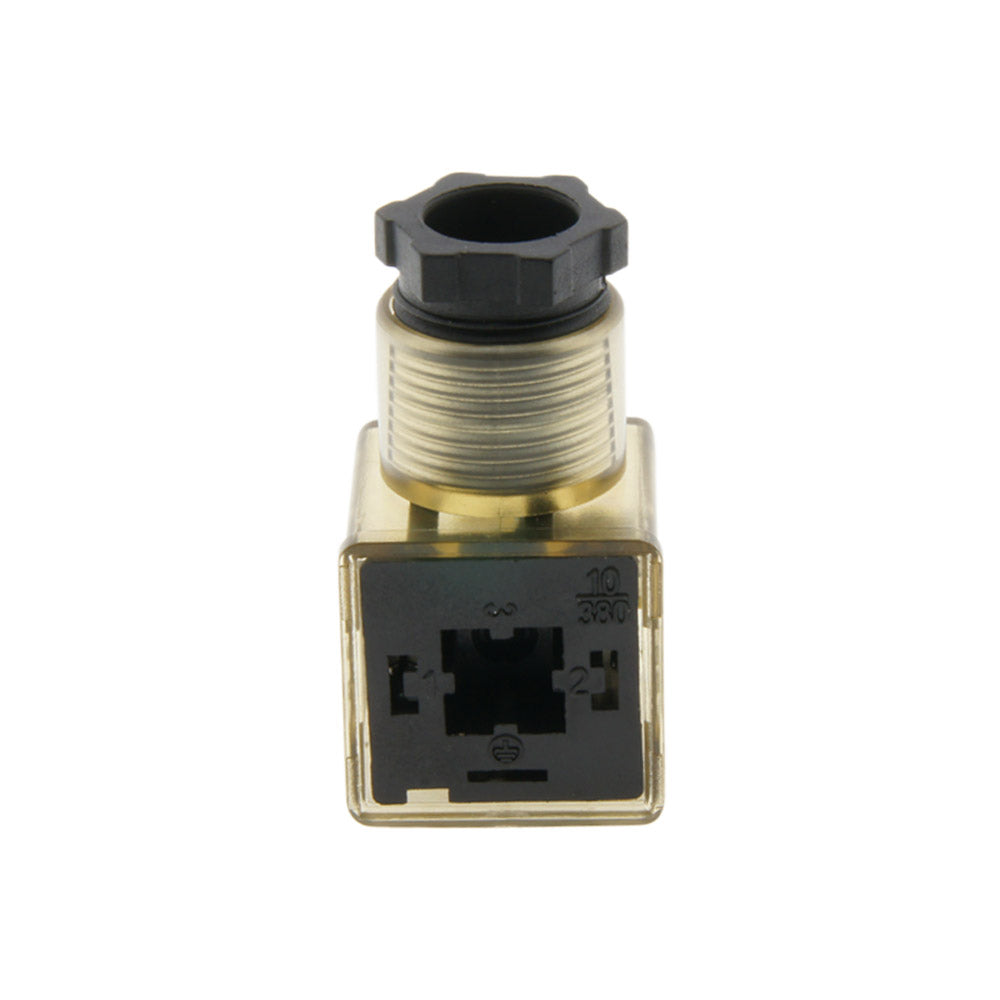

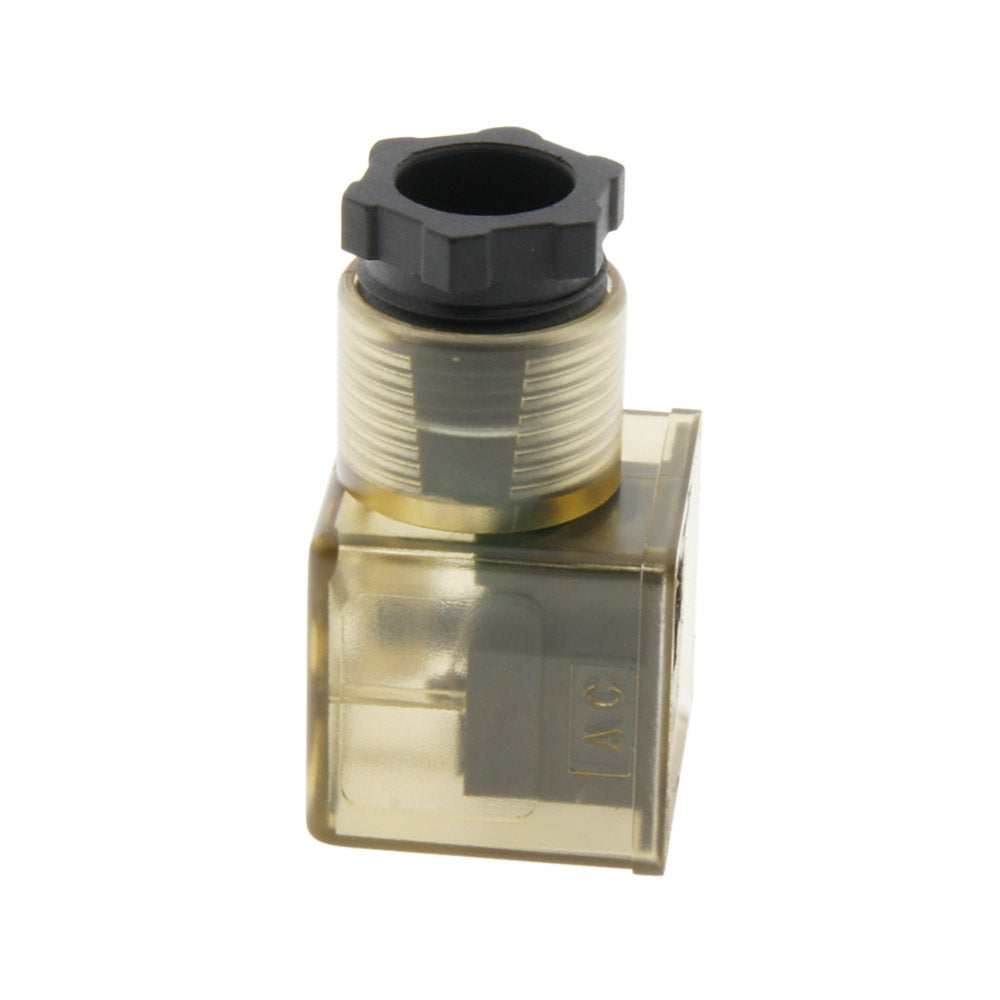

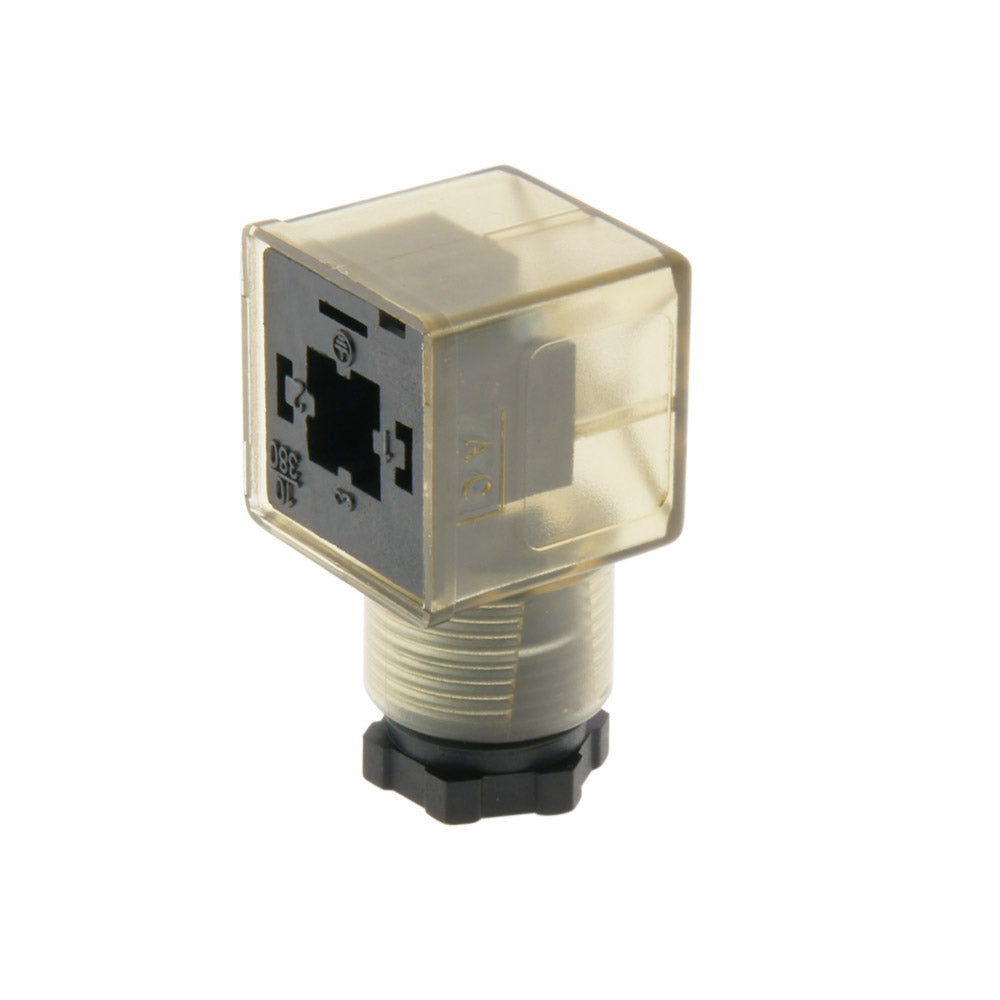

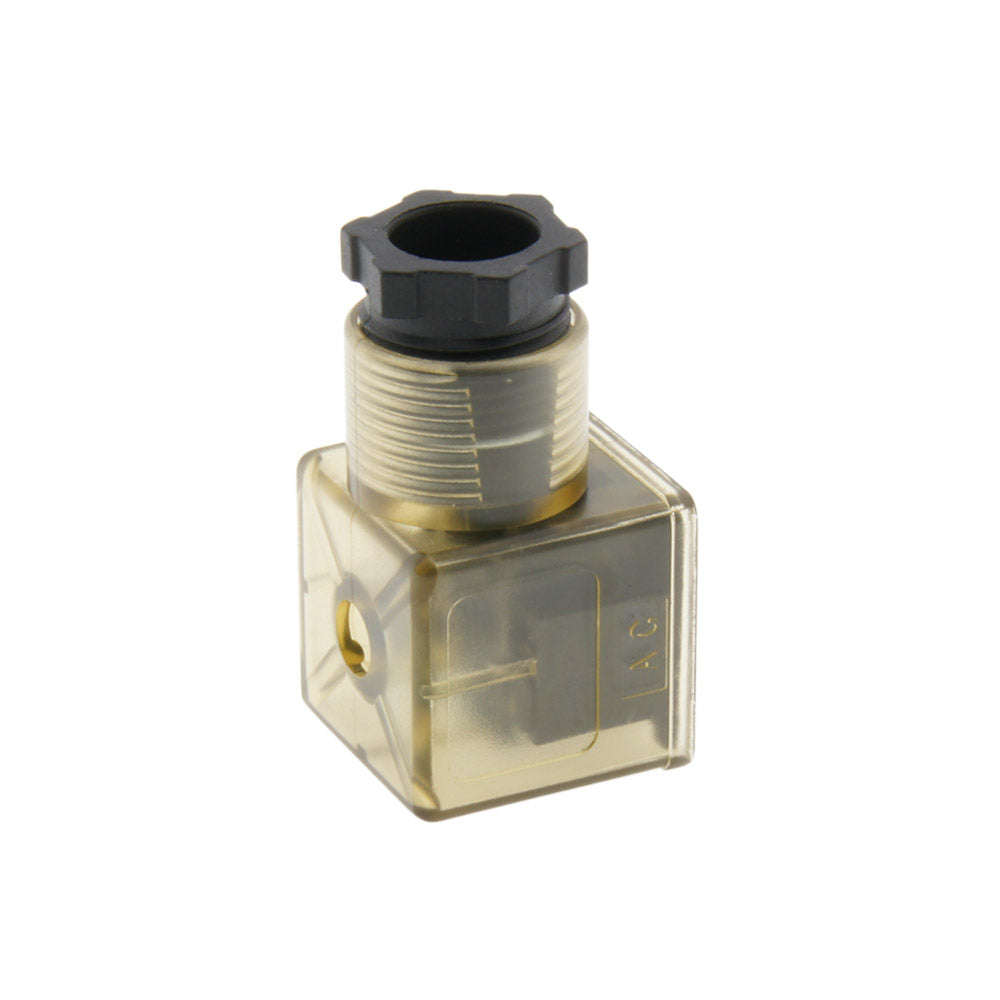

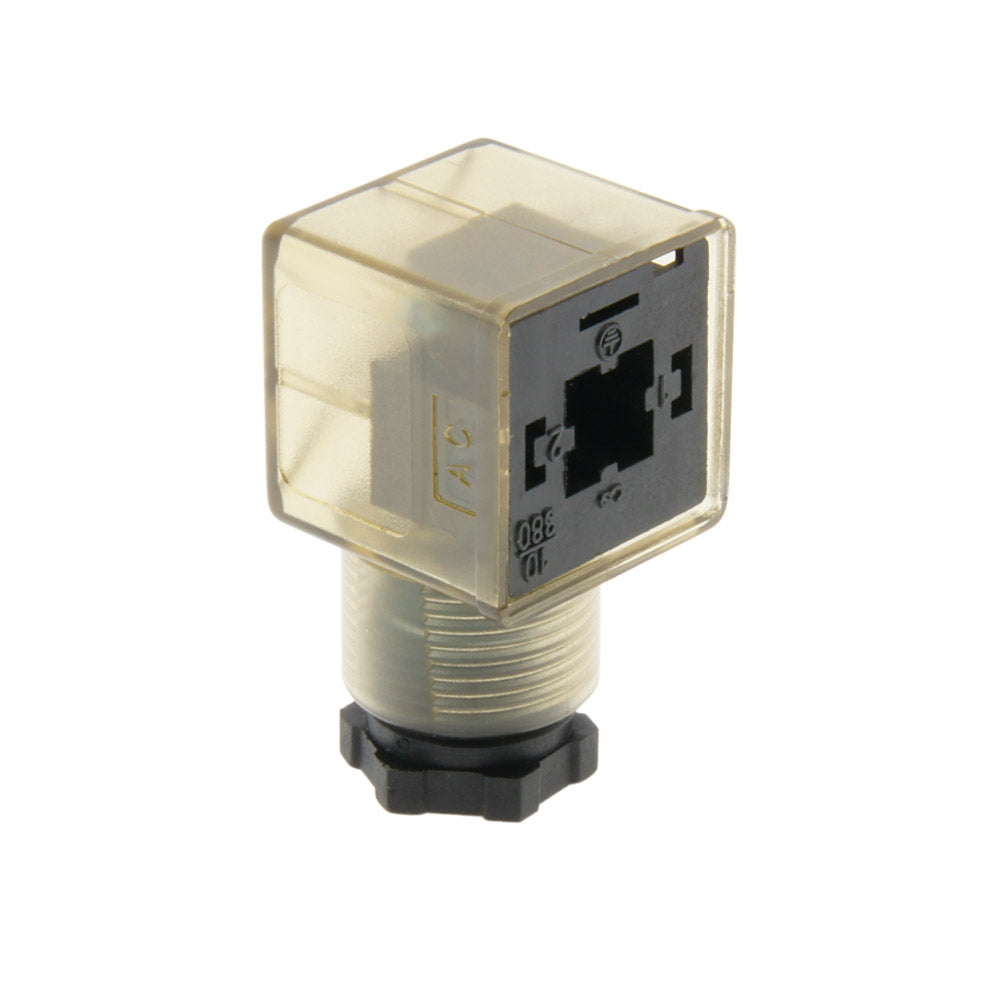

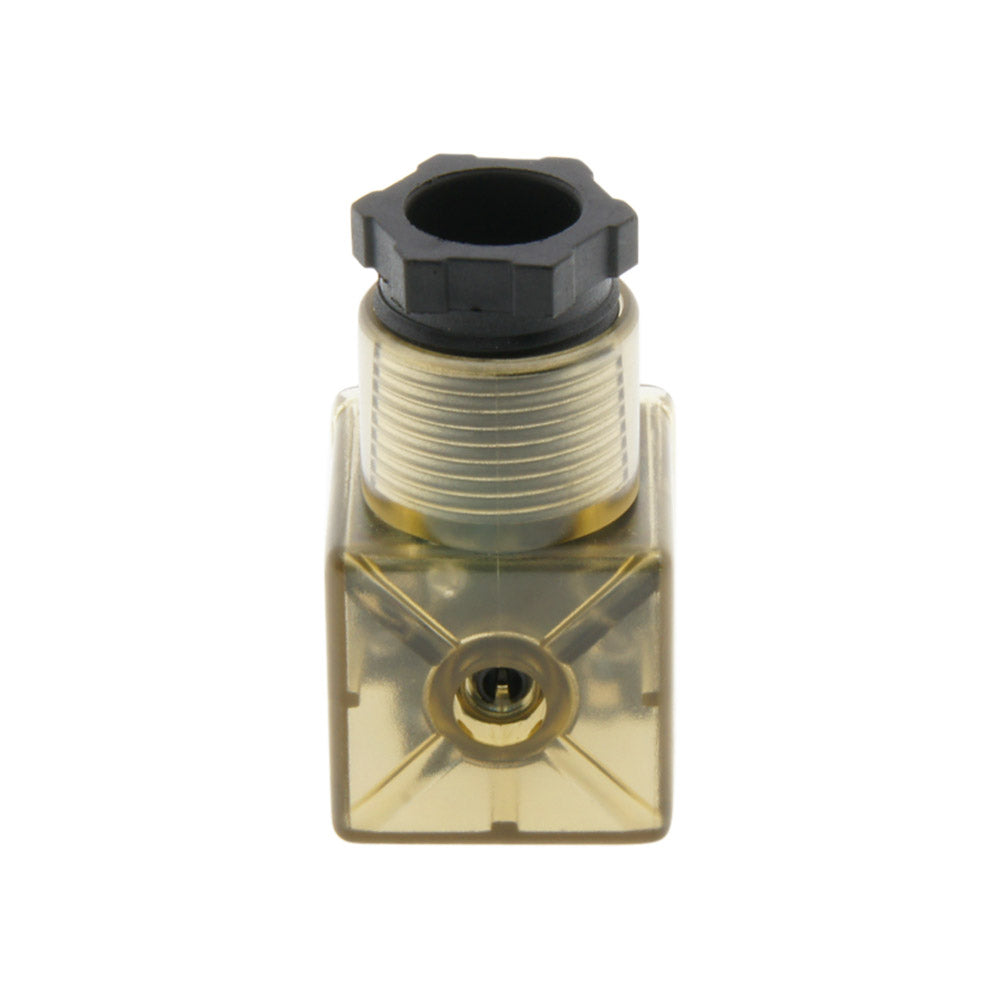

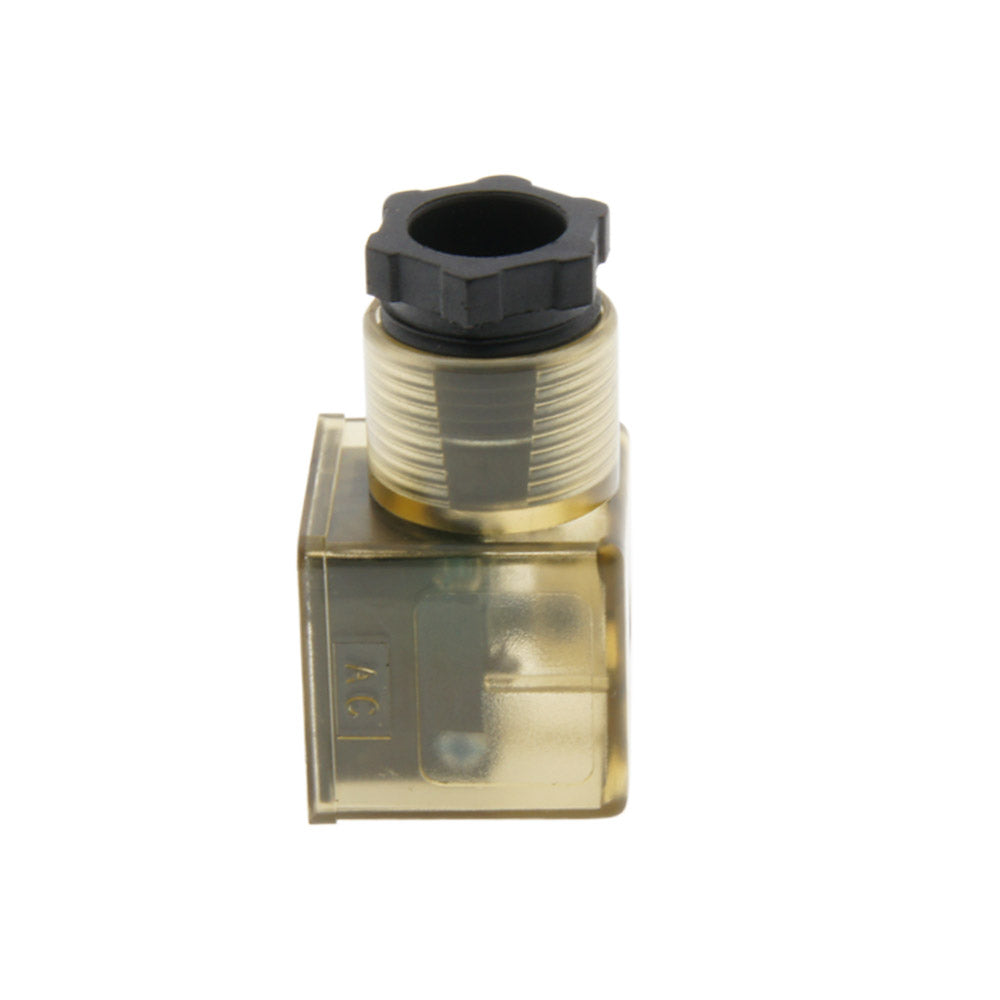

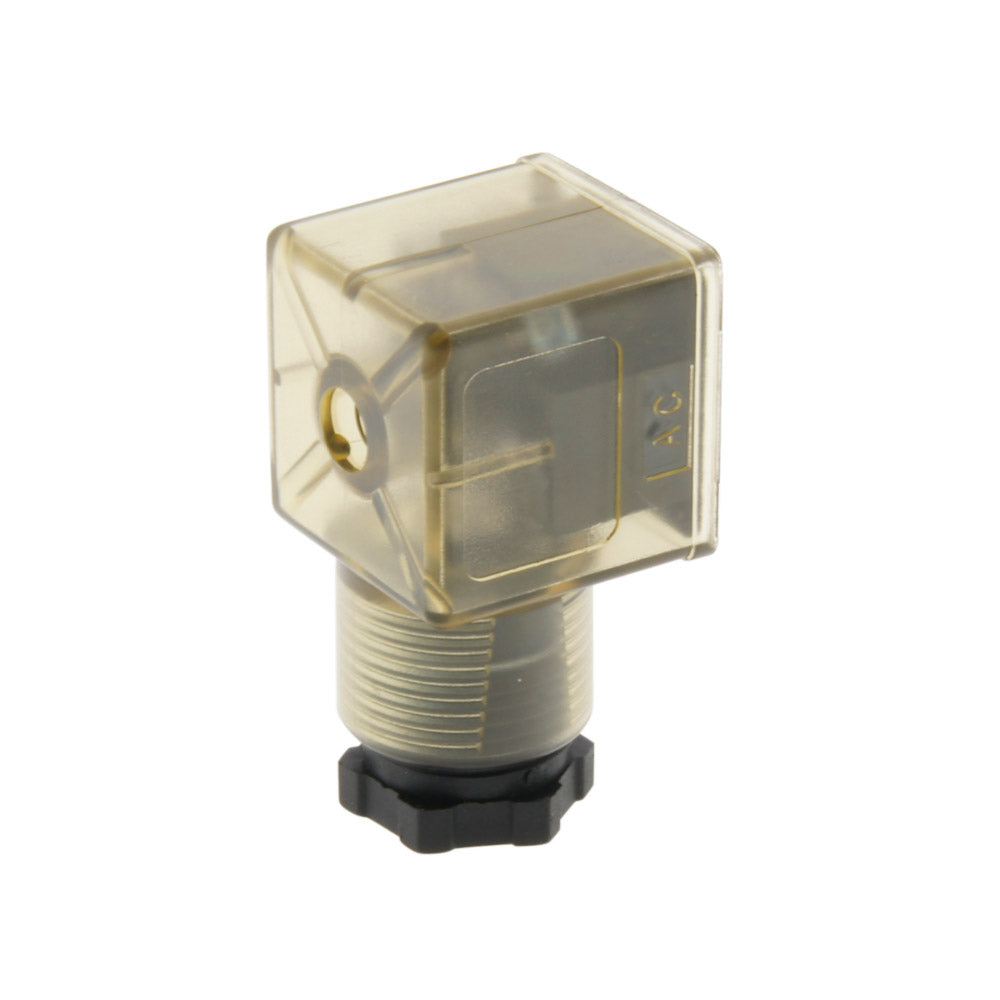

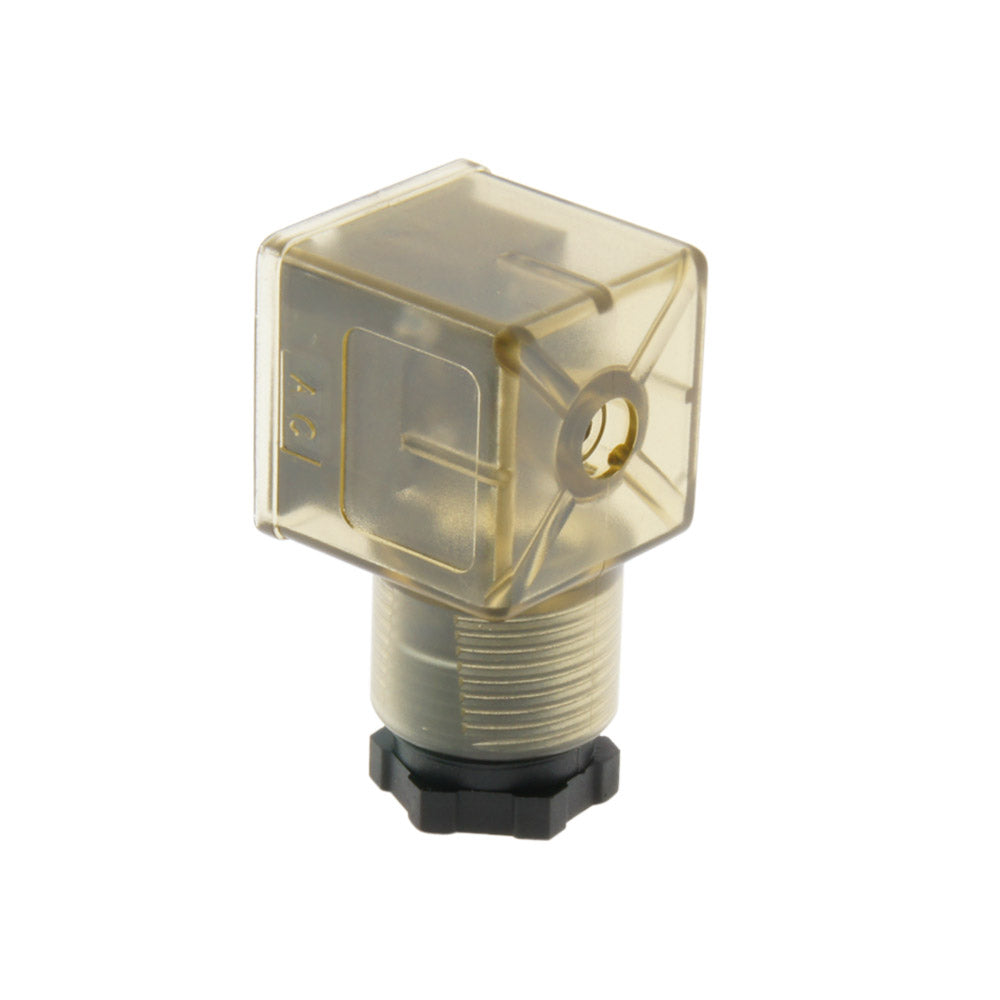

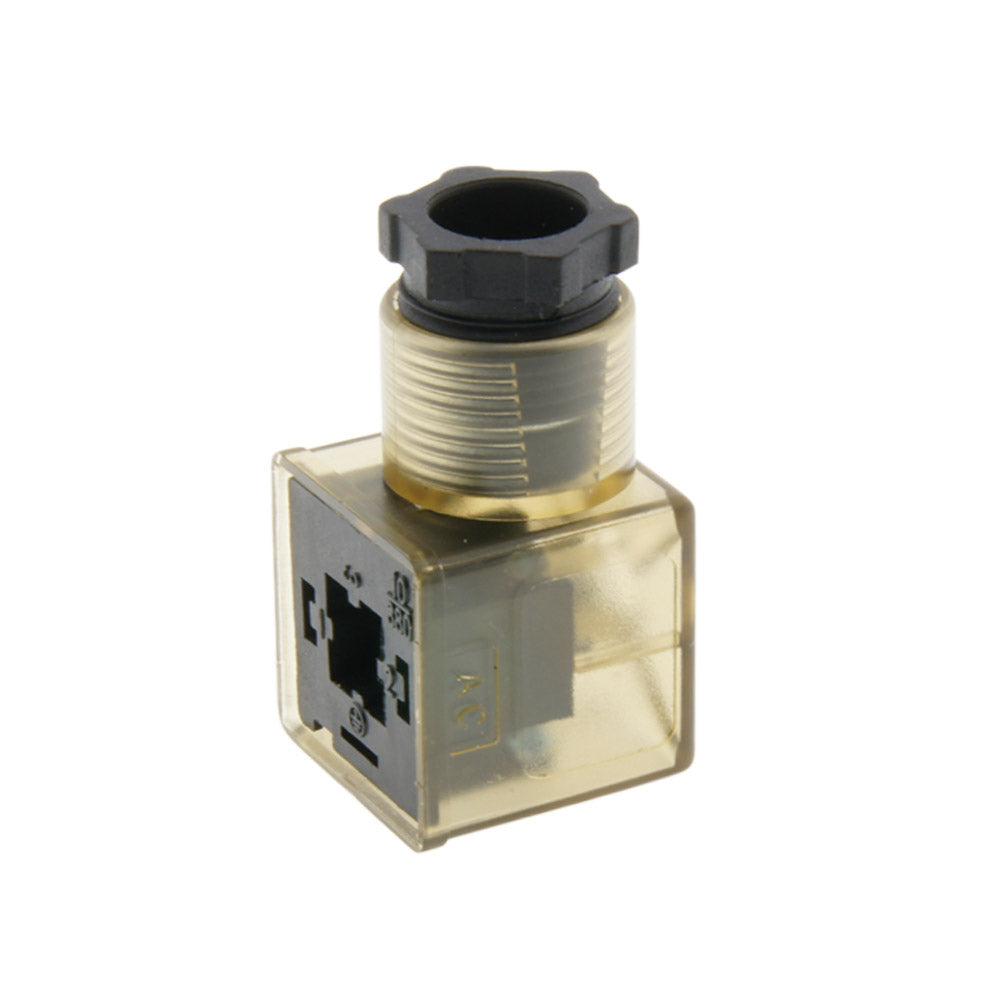

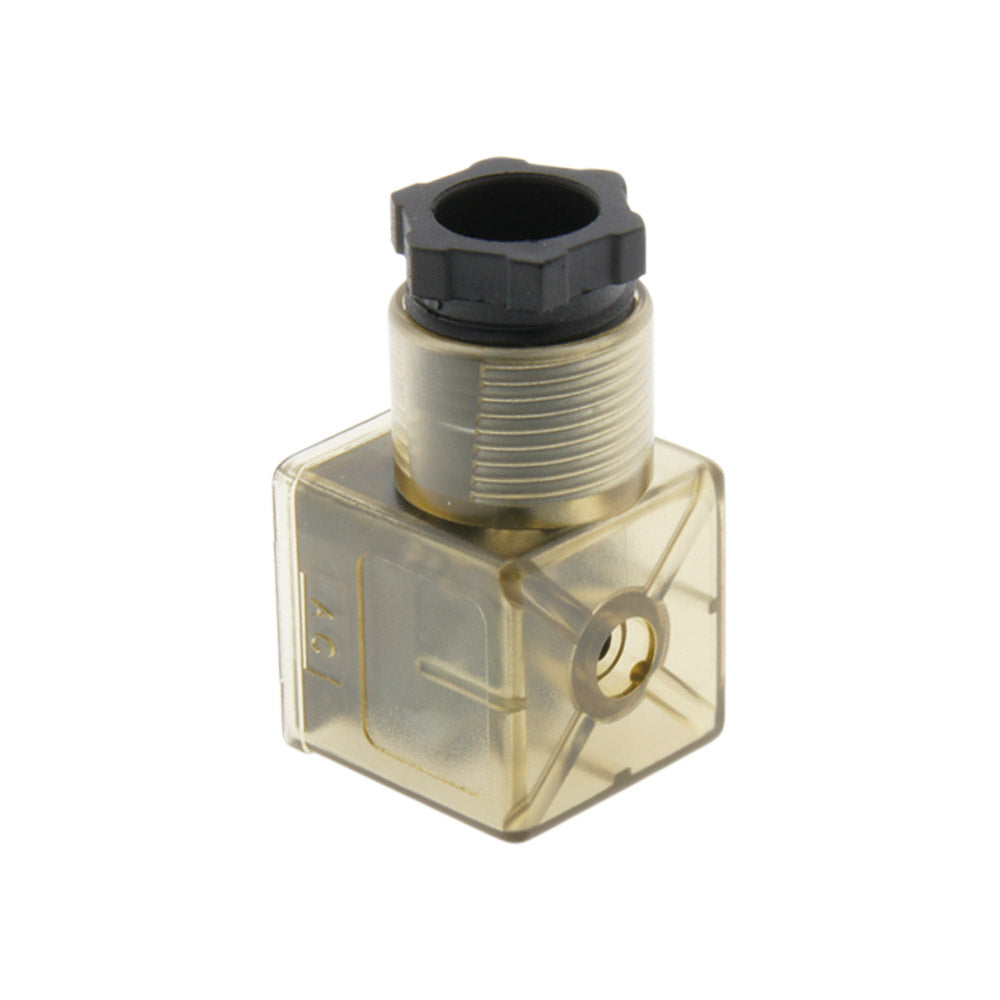

Connector with LED (DIN - A)
Reference:
AS-CAL
Brand:
JP Fluid Control
DIN - A connector (IP65) with an LED indicator. Useful tool to see if the coil is energised. Suitable for solenoid valves with a DIN - A connector for voltages from 24V up to 400V. Please note: when DC is used, the brown pole should be connected to the positive terminal.
- Regular price
- $7.08 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 2 - 4 business days
We sell only to registered businesses
Description
Specifications
Downloads
Related products
Description
DIN-A connector (DIN43650A) for solenoid valves. The LED indication is a handy tool to see whether the valve is activated. Suitable for 24-400V AC/DC. When DC is used please make sure that the brown wire is connected to the positive pole, otherwise the LED does not light up.
Parameters
| Parameter | Value |
| Type | 43650A |
| Pin distance | 18 mm |
| Version | 2+1 earth |
| Protection Class | IP65 |
| Voltage | 24-400V AC/DC |
| Nominal current | 10A |
| Max. cable size | ≤3x1.5mm2 |
| Fixing screw | M3x28 |
Dimensions
Installation
- Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don't use the piping as earthing.
- Mount the connector and make sure no moisture can enter between coil and connector.
- Use a round cable. Make sure that drops cannot slide along the cable into the connector.
