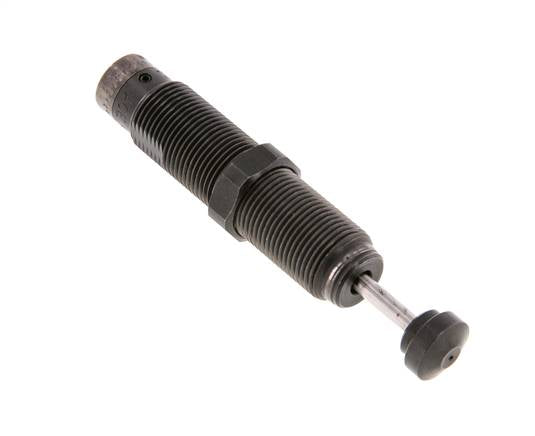

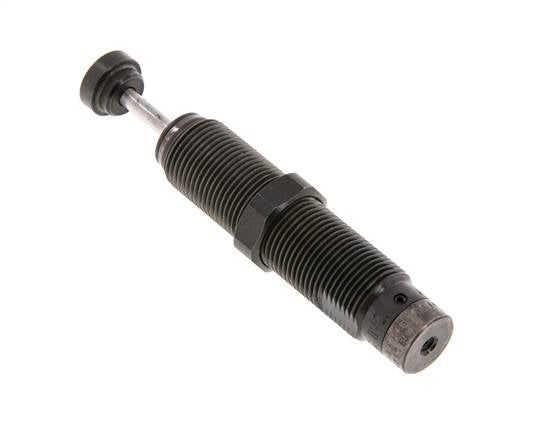

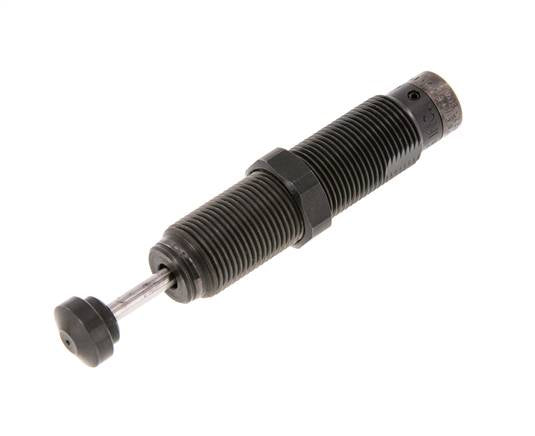

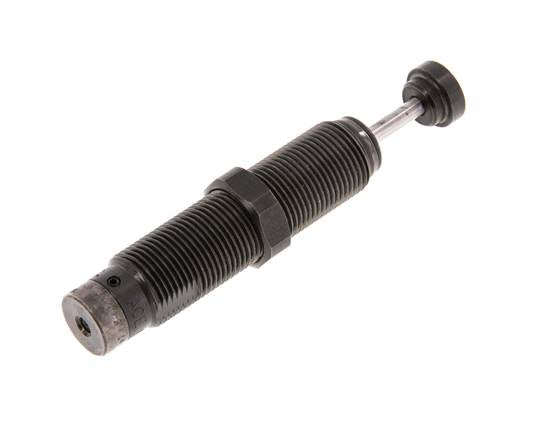

ACE Adjustable Shock Absorber M 20x1.5, 19 mm Stroke - MA225EUM
ACE adjustable industrial shock absorber with M 20x1,5 body thread and 19 mm stroke rated for up to 25 Nm per stroke, 45000 Nm/h continuous, effective mass 2,3 - 226 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on machine axes, pick-and-place arms, packaging machinery, and small automation cells where the mass or impact velocity varies between cycles and the damping must be tuned.
- Regular price
- $129.80 USD
We sell only to registered businesses
Description
ACE adjustable industrial shock absorber with M 20x1,5 body thread and 19 mm stroke rated for up to 25 Nm per stroke, 45000 Nm/h continuous, effective mass 2,3 - 226 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on machine axes, pick-and-place arms, packaging machinery, and small automation cells where the mass or impact velocity varies between cycles and the damping must be tuned.
Pros:
- Tunable damping across 2,3–226 kg, so each cycle ends at the lowest reaction force
- Rated 25 Nm/stroke, 45000 Nm/h on a compact M 20x1,5 threaded body, 19 mm stroke
- Self-returning piston with integrated limit stop, no external return spring needed
Cons:
- Requires re-tuning when mass or impact velocity changes
- Operating range 0 to +66 °C (32 to +151 °F); derate or pick another series outside it
- Free-falling vertical loads need a separate energy calculation
