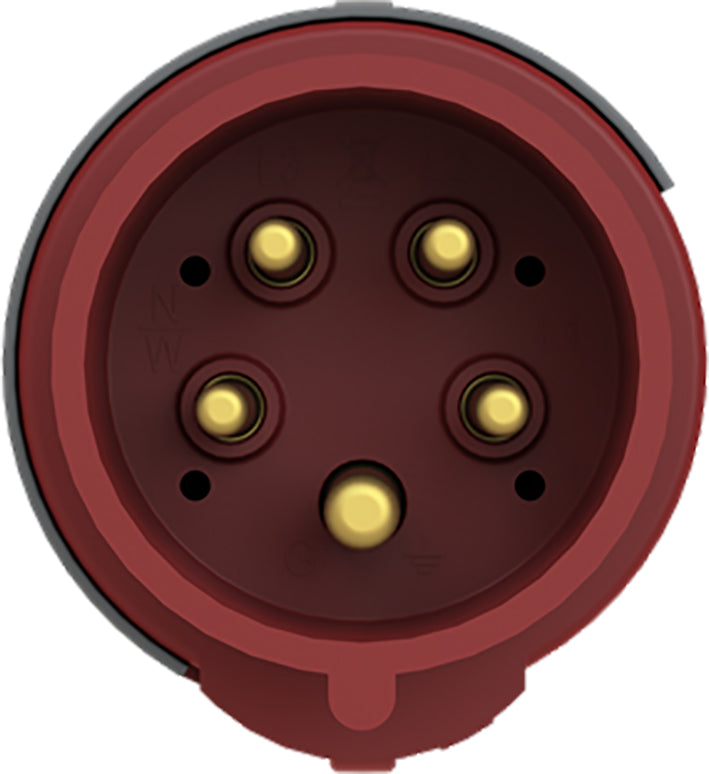

ABB CEWE CEE plug - 2CMA101967R1000

Notice: This product is discontinued

Discontinued
ABB CEWE CEE plug - 2CMA101967R1000
ABB CEWE CEE plug - 2CMA101967R1000
Image may vary slightly
See specifications for accurate information.
Reference: E2K5E
Brand: ABB
Mfr. Part: 2CMA101967R1000

Abb CEWE cee plug, plastic, degree of protection (IP) IP44, voltage according to EN 60309-2 380-415 V (50+60 Hz) red, characteristic color red, 5 poles, IEC current rating 16A, connection technology screw terminal, insertion direction straight, cable entry gland, hour rating 6h.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Abb CEWE cee plug, plastic, degree of protection (IP) IP44, voltage according to EN 60309-2 380-415 V (50+60 Hz) red, characteristic color red, 5 poles, IEC current rating 16A, connection technology screw terminal, insertion direction straight, cable entry gland, hour rating 6h.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

IEC-amperage (A)
16
Amperage according to UL/CSA (for UL-version) (A)
0
Number of poles
5
Voltage according to EN 60309-2
380-415 V (50+60 Hz) red
Clock hour position (h)
6
Identification colour
Red
Phase inverter
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP44
Connection system
Screwed terminal
Cable entry
Gland nut
Angle of plug
Straight
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Military model
No
