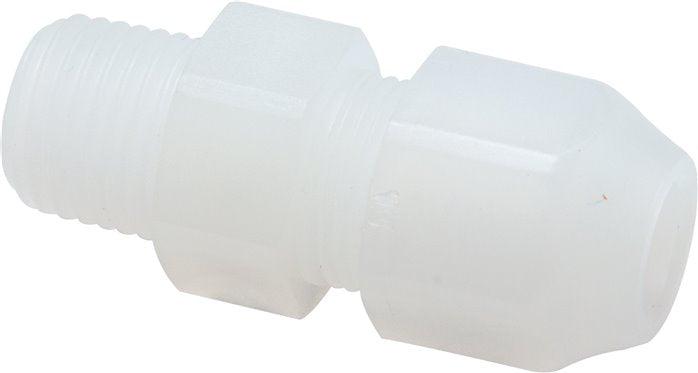

8x10mm & R3/8'' PVDF Straight Hose Compression Fitting with Male Threads 10bar/145psi

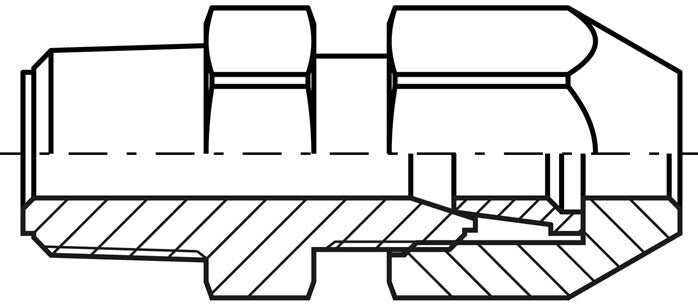

This PVDF straight hose fitting is designed with one male threaded connection and one compression ring port. Connection 1 is a 8x10 mm compression ring. Connection 2 has male R 3/8 inch threads. The maximum pressure is 10 bar (145psi). The fitting is suitable for temperatures from -20 to 120 °C (-4 to 248 °F).

Pros:

• It can be used in applications where strong movements between hose and connection occur
• FDA-approved and complies with the EU 10/2011 directive
• Highly resistant to numerous chemicals and hydrolysis
• Thoroughly cleaned, compiled, and packaged in a clean room that meets US FED 209D, class 10000 - ISO 14664-1 class 7 standards
• Produced without the use of silicone and oil
• Compatible with PA, PUR, PE, PTFE, and PFA hoses

Cons:

• Since it has a compression ring connection, it can only be used once
