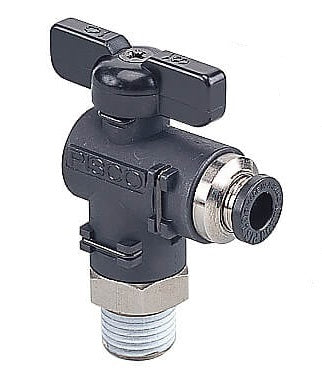

8mm - R1/4" Elbow 2-Way Ball Valve Series 20
This is an elbow 2-way ball valve for open/close control of the air flow. It has a 8 mm push-in fitting on one side and an R 1/4 inch male threaded port on the other side. It is suitable for a maximum operating pressure of 9 bar (130.5 psi). Also suitable for vacuum applications at a pressure of -1 bar (-14.5 psi). It has PTFE seals that make it suitable for applications within a temperature range from 0 to 60 °C (32 to 140 °F). Use the quarter-turn handle to open or close the valve.
- Regular price
- $45.37
Description
This is an elbow 2-way ball valve for open/close control of the air flow. It has a ball with a bore drilled through it which allows air flow when the bore is aligned with the ports.
It has a 8 mm push-in fitting on one side and an R 1/4 inch male threaded port on the other side. The push-in fitting provides an easy connection with the tubing. Push the tube in and the fitting will fix it with stainless steel claws.
It is suitable for a maximum operating pressure of 9 bar (130.5 psi. Also suitable for vacuum applications at a pressure of -1 bar (-14.5 psi). It has PTFE seals that make it suitable for applications within a temperature range from 0 to 60°C (32 to 140 °F) (no freezing).
Use a quarter-turn handle to open or close the valve. Make sure to turn it completely to avoid damaging the valve.
Pros:
- Suitable for vacuum applications
- Equipped with easy to connect push-in fittings
Cons:
- Dust could damage the pneumatic system if vacuum is applied without a filter on the inlet side
BVLC20 series
The 20 - series includes straight and elbow 2-way ball valves used for open/close control of the air flow. These valves can be equipped with push-in and threaded ports which can be selected in different combinations. The push-in fitting sizes range from 6 to 8 mm while the threaded port sizes range from R1/8 to R3/8 inch. The valves are suitable for a maximum operating pressure of 9 bar and a vacuum of -1 bar. They are suitable for air and water at temperatures ranging from 0 to 60°C (no freezing) thanks to the NBR sealing. The housing is made of PBT while the threaded ports and the ball are made of nickel-plated brass.
