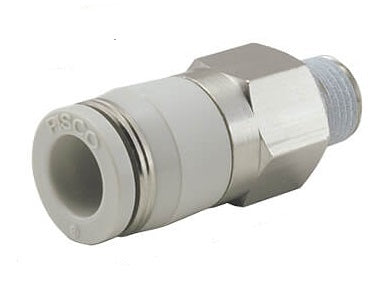

6mm - R1/4" Meter-Out Resin Type Straight Check Valve

6mm - R1/4" Meter-Out Resin Type Straight Check Valve
Image may vary slightly
See specifications for accurate information.
Reference: CVPC6-02B
Brand: Pisco
This is a meter-in resin type straight spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite dir
View all
Regular price
$20.83
excl VAT

In stock +36 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 36 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 38 - 39 business days

Description
Specifications
Downloads
Related products

This is a meter-in resin type straight check valve that allows free flow in one direction and prevents it from going in the opposite direction. The valve has a spring loaded poppet that blocks the orifice of the valve. If the air is coming from the poppet side, the poppet will be pushed from the base of the orifice and the air will go through. If the air comes from the opposite side it will press the poppet against the base and block its way. The meter-out configuration implies that the flow is free going from the male threaded port and restricted in the opposite direction. It is the other way around for the meter-in configuration.

It has a 6 mm push-in fitting on one side and an R 1/4 inch male threaded port on the other side. The push-in fitting provides an easy connection with the tubing. Push the tube in and the fitting will fix it with stainless steel claws. The flow is metered going from the push-in fitting port to the male threaded port.

It is suitable for a maximum operating pressure of 9 bar (130.5 psi. Also suitable for vacuum applications at a pressure of -1 bar (-14.5 psi). It has NBR seals that make it suitable for applications within a temperature range from 0 to 60°C (32 to 140 °F) (no freezing).

Pros:

  • Suitable for vacuum applications
  • Equipped with easy to connect push-in fittings

Cons:

  • Dust could damage the pneumatic system if vacuum is applied without a filter on the inlet side

CVPC series

The CVPC - series includes straight resin type spring loaded check valves that provide one-directional flow of the air. These valves have a push-in fitting on one port and a male threaded port on the other side. The push-in fitting sizes range from 4 to 12 mm and threaded ports range from M5x0.8 to M6x1 and also range from R1/8 to R1/2 inch. The maximum operating pressure is at 9 bar, also suitable for vacuum applications at a minimum pressure of -1 bar. These valves have a cracking pressure of 0.1 bar. The check valves are NBR sealed which make them suitable for a temperature range from 0 to 60°C (no freezing).
