G1/8'' Stainless Steel 120VAC Solenoid Valve 6011 466773
Notice: This product is discontinued

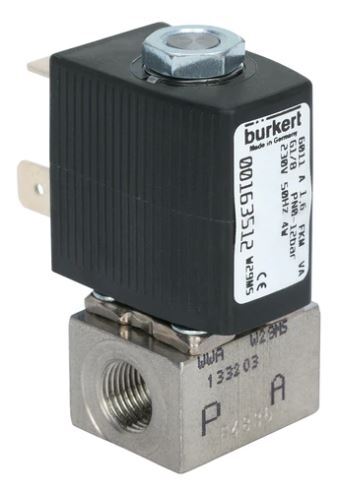

Bürkert 2/2-way solenoid valve (type 6011) with G1/8'' threads and a 120V AC coil. Normally closed (voltage = open) and direct operating, so no differential pressure required. Housing of stainless steel with FKM sealing and a 1.2 mm orifice.
Note: DIN connector not included
Notice: This product is discontinued
Description
Bürkert direct operating 2/2-way solenoid valve with G1/8'' inner threads and 120V AC (alternating current) coil. The valve has a stainless steel housing with FKM sealing and an orifice size of 1.2 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The FKM (fluorine rubber or viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle.
Important advantages
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- Very compact design
- Bürkert design: proven reliability & durability
6011 series
The Bürkert Type 6011 valve is a normally closed (NC) direct operated 2/2-way miniature solenoid valve. It is the smallest type of the direct operated D.EV Bürkert series with a nominal diameter range between 1 and 2.4 mm. The plunger valves of the D.EV series are designed for small flow rates and are often used in machine construction, instrument engineering and pneumatic equipment. This cost-effective valve type is designed for neutral and clean liquids, gases and vapors. It is available with a wide range of connections, such as threaded connections, push-in fittings or a subbase flange. The valve is available in brass, stainless steel and polyamide (nylon). The possibilities are increased further with a range of certifications for drinking water, food and oxygen. There are special options, such as helium leak test versions, highly sealed versions, strand versions, and free of oil, grease and silicon versions.
Please note: this product is made to order and can therefore unfortunately not be returned.
