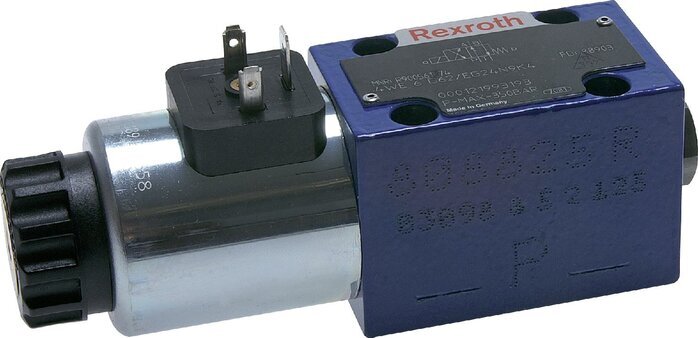

4/2 Way NG6 (D03) 230V AC Hydraulic Solenoid Valve EB - Rexroth
4/2-way solenoid directional valve for NG6 / D03 sub-plate mounting, up to 350 bar. Interface to ISO 4401-03, CETOP 3 and NFPA D03. At rest, all ports P, T, A and B are blocked; energising the solenoid connects P to A and B to T. Recommended flow up to 40 l/min, maximum 80 l/min. 230 V AC solenoid, 50 VA, IP65. Ductile iron body and NBR seals, for mineral-oil hydraulics from -30 to +80 °C.
- Regular price
- $668.17 USD
We sell only to registered businesses
Description
The spring holds the spool in its rest position with all ports blocked, so the actuator stops as soon as the solenoid is switched off. Spool type EB in the Bosch Rexroth designation. It suits mineral oil with a viscosity of 2.8 to 500 mm²/s. Mount the valve on an NG6 sub-plate, alone or on top of NG6 sandwich valves that add pressure, flow or check functions. It is supplied with its seals, but without fixing screws and connector. Fix it with four M5 socket head screws of property class 12.9.
Pros:
- All ports blocked at rest, the actuator stops when the power is off
- Standard NG6 / D03 interface, stacks with NG6 sandwich valves
- IP65: dust-tight and protected against low-pressure water jets
Cons:
- Supplied without fixing screws and connector
- One switched position only - for three positions, choose a 4/3-way valve
Series:
Bosch Rexroth 4WE6 solenoid directional valves in spool design for the standardised NG6 interface (DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03, NFPA D03). They start, stop and change the direction of flow in hydraulic systems, and combine with NG6 pressure, flow and check sandwich valves into compact stacks. The range includes 4/3-way valves with H, E, G and J spools and 4/2-way valves with D, D/OF, HA, HB, Y and EB spools, each with a 24 V DC or 230 V AC solenoid. Ductile iron body, steel internals and NBR seals, for mineral-oil hydraulic fluids of 2.8 to 500 mm²/s from -30 to +80 °C. Operating pressure up to 350 bar, flow up to 80 l/min with up to 40 l/min recommended. The solenoids draw 30 W on DC or 50 VA on AC, tolerate ±10 % voltage and are rated IP65. The valves are supplied with seals, without fixing screws and connector.
