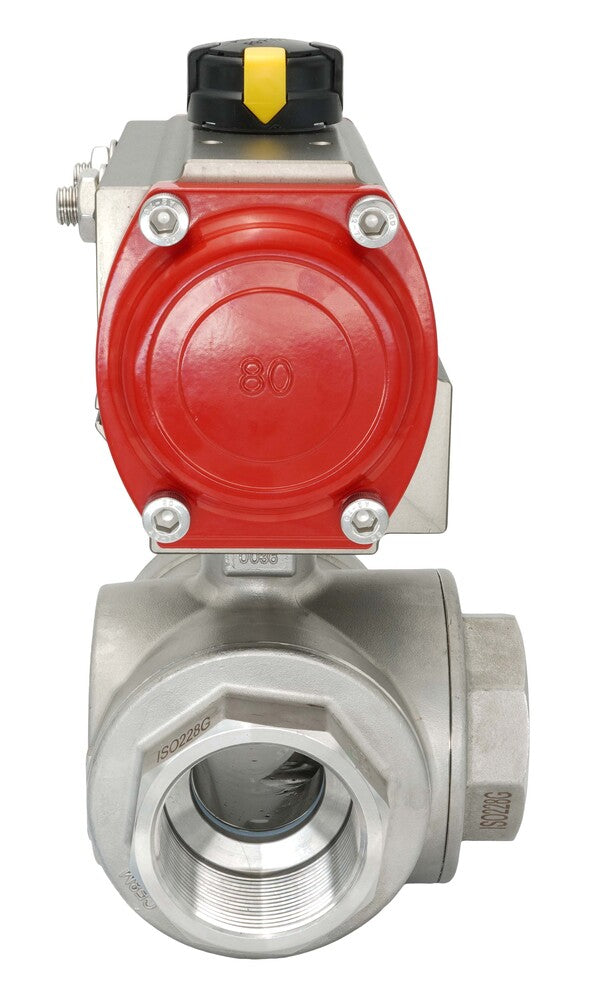

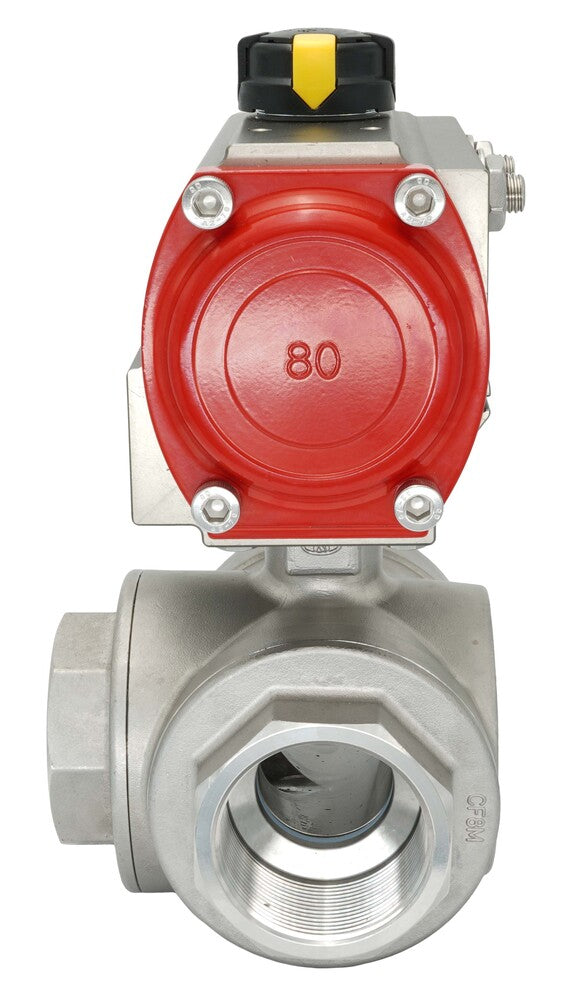

3-Way Pneumatic Ball Valve G1/4'' L-bore Brass Spring Closing
This 3-way ball valve is pneumatically actuated, featuring a 10 mm bore size and G1/4 inch threaded connections. It is suitable for medium temperatures from -10 to 100°C (14 to 212°F) and pressures up to 40 bar (580 psi). The Kv value is 3 m³/h (Cv=3). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of brass with a PTFE seal, making it suitable for water, air, oil, fuel, lubricant, and vacuum.
The actuator features a robust, spring closed rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F03/F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (BL3BAL-014), actuator (V3JKZ/PR03A), and mounting accessories.
- Regular price
- $292.74 USD
We sell only to registered businesses
Description
This 3-way ball valve is pneumatically actuated, featuring a 10 mm bore size and G1/4 inch threaded connections. It is suitable for medium temperatures from -10 to 100°C (14 to 212°F) and pressures up to 40 bar (580 psi). The Kv value is 3 m³/h (Cv=3). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of brass with a PTFE seal, making it suitable for water, air, oil, fuel, lubricant, and vacuum.
The actuator features a robust, spring closed rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F03/F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (BL3BAL-014), actuator (V3JKZ/PR03A), and mounting accessories.
Pros:
- Direct mounting of 1/4 Namur solenoid valve possible
- Can be equipped with a limit switch box (VDI/VDE 3845 80 x 30)
- Fast opening/closing
- Clear mechanical indicator on top shows the valve position
- Guaranteed 500,000+ cycles for the pneumatic actuator
- Suitable for a wide variety of non-aggressive liquids and gases
Cons:
- No ATEX or SIL certificate
