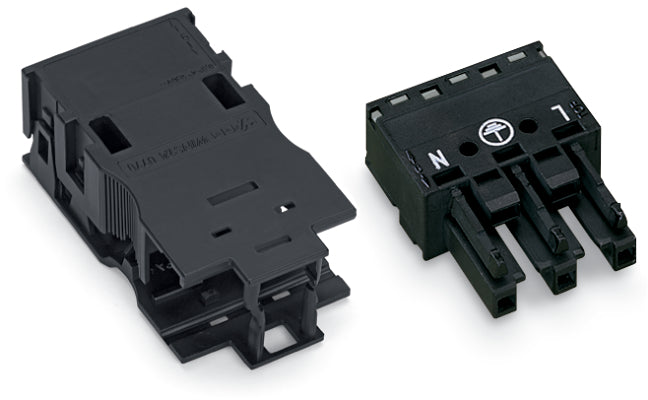

3-Pole Socket With Strain Relief 4mm Black - 770-203/035-000

3-Pole Socket With Strain Relief 4mm Black - 770-203/035-000
3-Pole Socket With Strain Relief 4mm Black - 770-203/035-000
3-Pole Socket With Strain Relief 4mm Black - 770-203/035-000
3-Pole Socket With Strain Relief 4mm Black - 770-203/035-000
3-Pole Socket With Strain Relief 4mm Black - 770-203/035-000
3-Pole Socket With Strain Relief 4mm Black - 770-203/035-000
Reference: E3WRH
Brand: Wago
Mfr. Part: 770-203/035-000

Professional 3-pole socket featuring integrated strain relief housing designed for 4.00 mm² cables. This black connector includes a Code A specification for reliable and secure electrical connections. The strain relief mechanism provides enhanced cable protection and connection stability.

View all
$6.22 USD
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Professional 3-pole socket featuring integrated strain relief housing designed for 4.00 mm² cables. This black connector includes a Code A specification for reliable and secure electrical connections. The strain relief mechanism provides enhanced cable protection and connection stability.

Pros:

  • Integrated strain relief for enhanced cable protection
  • Compatible with 4.00 mm² cable specifications
  • Standardized Code A design for reliable connections

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Rated voltage
250 V
Rated current
25 A
Number of poles
3
Degree of protection (IP)i
Other
Connection type
Spring clamp connection
Model
Bus
Cable diameter
7..11.5 mm
Connection cross section (fine-strand)
0.5..4 mm²
Connection cross section (solid-core)
0.5..4 mm²
Number of connections per pole
2
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
Black
Locking mechanism
Separate
With strain relief
Yes
Max. continuous temperature resistance contact part
85 °C
Max. continuous temperature resistance strain relief
105 °C
Materiali
Polyamide (PA)
Halogen free
No
Fire load
0.112 kWh
