Image may vary slightly
See specifications for accurate information.
Reference: P24BW
Brand: Knocks
Mfr. Part: S.11 I

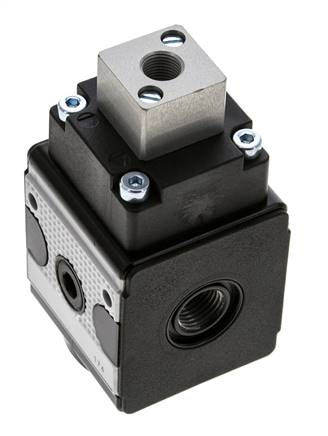

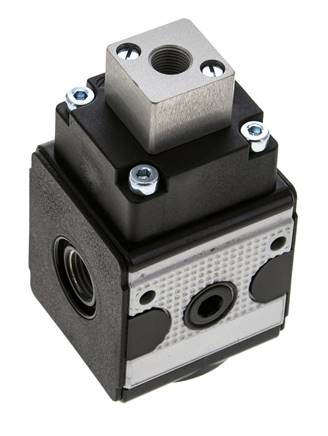

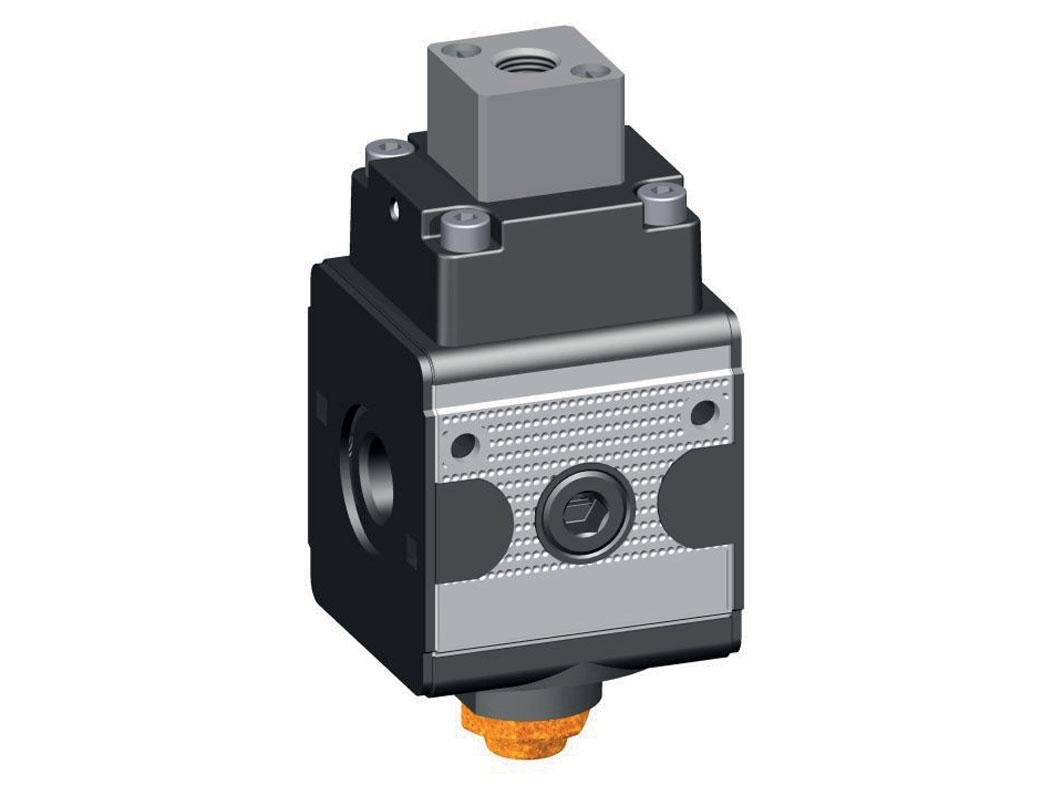

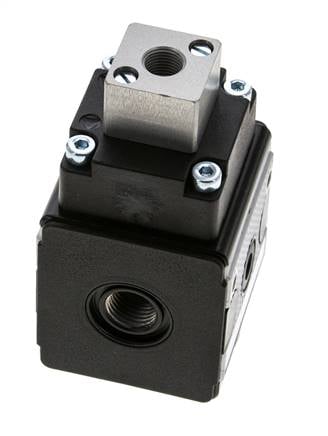

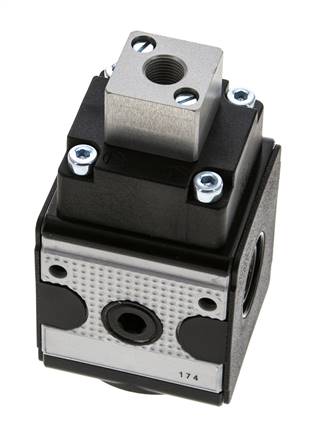

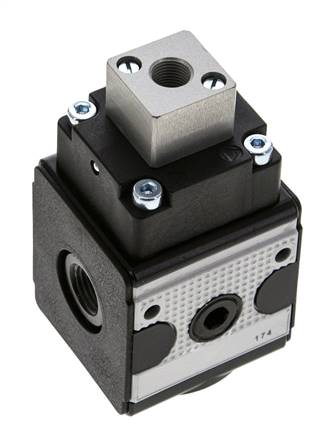

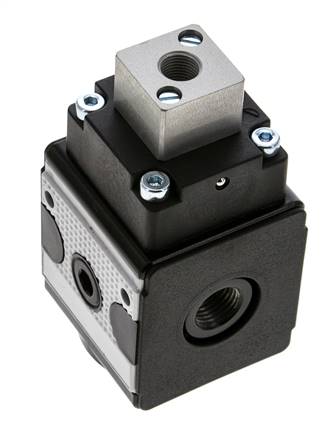

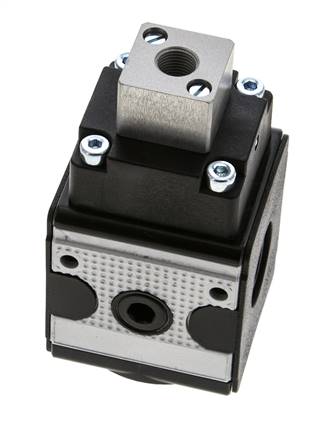

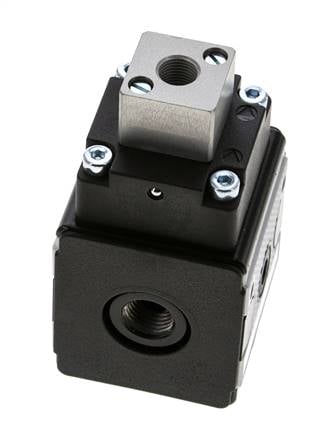

This 3/2-way pneumatically actuated valve is used for pressurizing and exhausting pneumatic system. It can be used independently or in conjunction with an FRL. Shut off valves make servicing easier by depressurizing only specific parts of the system. The valve has G 1/4 inch ports and the maximum flow rate is 900 l/min. The input pressure range is from 2 to 10 bar (29.0 to 145.0 psi). The threaded connection with the silencer allows for a ducted exhaust.

View all
$61.90
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This 3/2-way pneumatically actuated valve is used for pressurizing and exhausting pneumatic system. It can be used independently or in conjunction with an FRL. Shut off valves make servicing easier by depressurizing only specific parts of the system. The valve has G 1/4 inch ports and the maximum flow rate is 900 l/min. The input pressure range is from 2 to 10 bar (29.0 to 145.0 psi). The threaded connection with the silencer allows for a ducted exhaust.

Downloads

Manual Multifix
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/4 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Zinc die-cast
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Min pressure difference (bar)
2
Max pressure (bar)
Maximum system pressure.
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Max flow rate (l/min)
900

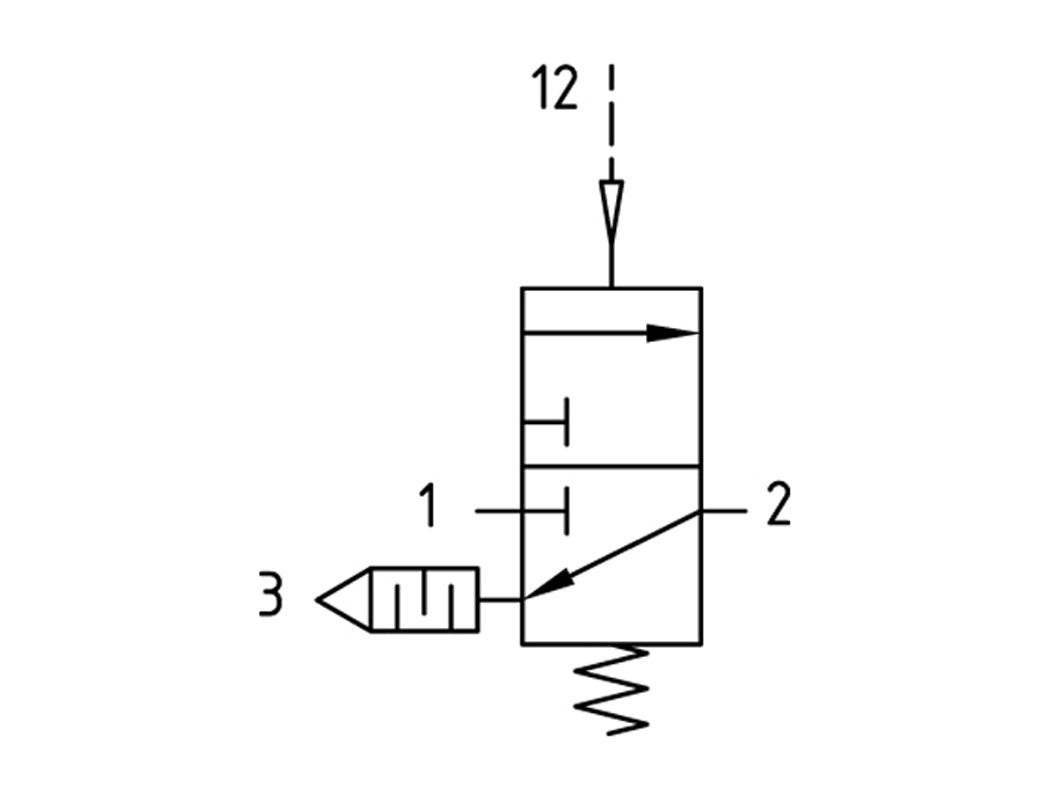

Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
3/2 way
Model
Multifix 1
Max pressure (bar)
10
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Air
