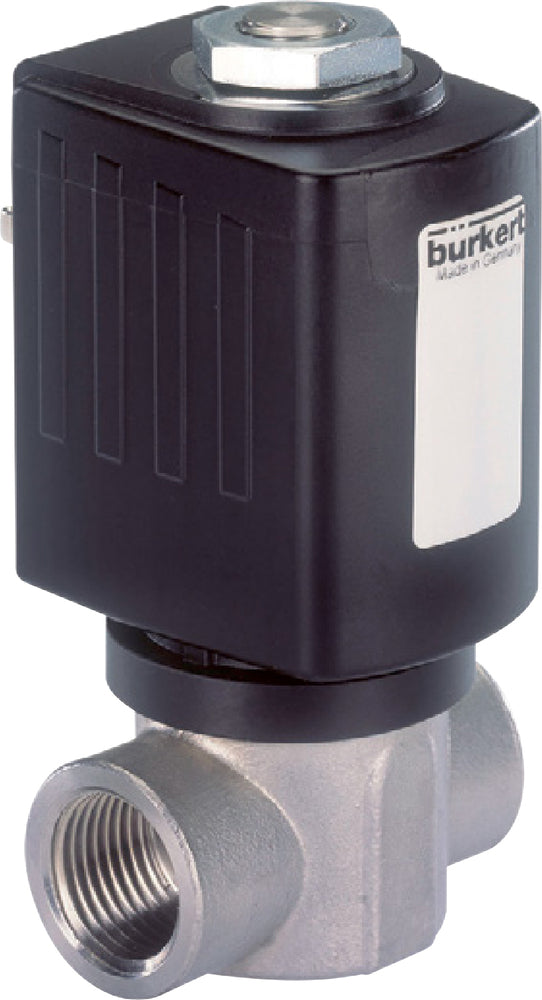

G1/4'' Stainless Steel 230VUC ATEX Solenoid Valve 6027 298652
Notice: This product is discontinued and replaced by 380706
Bürkert 2/2-way solenoid valve (type 6027) with G1/4'' threads and a 230V UC coil. Normally closed (voltage = open) and direct operating, so no differential pressure required. For media with max 80°C at a differential pressure of 0-250 bar. Housing of stainless steel with Oxide ceramics sealing and a 1 mm orifice. The Kv-value is 0.03 m3/h (0.5 l/min at dp=1 bar water). Certified up to ATEX zone 1.
Notice: This product is discontinued and replaced by 380706
Description
Bürkert direct operating 2/2-way solenoid valve with G1/4'' inner threads and 230V UC (alternating or direct current) coil. The valve has a stainless steel housing with Oxide ceramics sealing and an orifice size of 1 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. Suitable for systems with a differential pressure of 0-250 bar and a maximum temperature of 80°C. The valve has a Kv-value of 0.03 m3/h, this translates to a flow rate of 0.5 l/min at the differential pressure of 1 bar (for water). The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The oxide ceramic sealing is used for high pressure applications. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Since the valve has a maximum operational pressure of 250 bar, it can be used for high pressure applications. The valve is certified for ATEX Ex-Zone 1, so it can be used in potentially explosive environments requiring this certification. The valve has an IP65 rating if properly connected.
Important advantages
- ATEX certified up to Ex-Zone 1
- Good protection against the environment thanks to the IP65 rating
- The 6027 is one of the most powerful direct operated plunger solenoid valves that operate from zero bar
- Suitable for high pressure applications up to 250 bar
- Bürkert design: proven reliability & durability
6027 series
The Bürkert 6027 valve is a direct operated plunger solenoid valve. No pressure difference is necessary to open the valve. Port connection sizes are available from 1/4" up to 1/2". This durable valve is available with a wide range of options. The 6027 type has a range of high pressure versions, including a version up to 250 bar with ceramic sealings. There are versions for oil burners, gas appliances (EN 161) and explosive environments (ATEX). An optional sliding ring bearing increases the service life with dry gases. High pressure versions for liquids, low temperature versions (from -40°C), as well as explosion proof versions are available.
Please note: this product is made to order and can therefore unfortunately not be returned.
