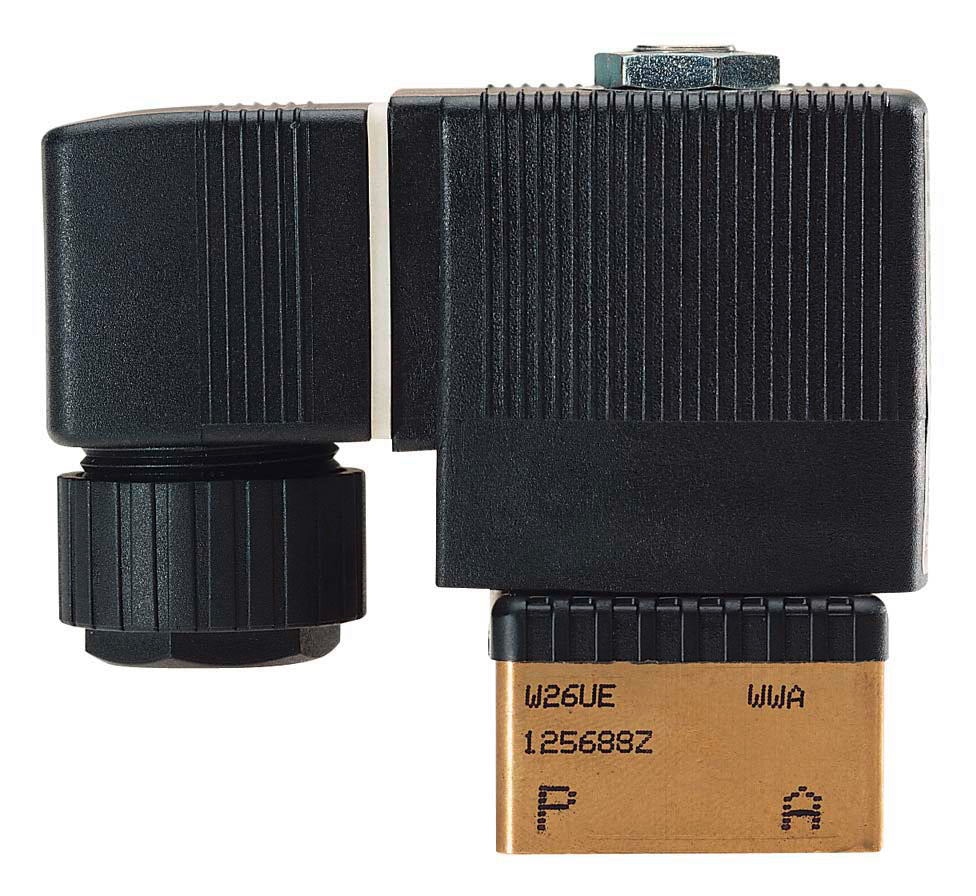

G1/8'' Brass 24VUC ATEX Drinking Water Solenoid Valve 6013 288775
Notice: This product is discontinued
Bürkert 2/2-way solenoid valve (type 6013) with G1/8'' threads and a 24V UC coil. Normally closed (voltage = open) and direct operating, so no differential pressure required. For media with max 100°C at a differential pressure of 0-26 bar. Housing of brass with EPDM sealing and a 1.2 mm orifice. The Kv-value is 0.05 m3/h (0.83 l/min at dp=1 bar water). Suitable for drinking water. Certified up to ATEX zone 1.
Notice: This product is discontinued
Description
Bürkert direct operating 2/2-way solenoid valve with G1/8'' inner threads and 24V UC (alternating or direct current) coil. The valve has a brass housing with EPDM sealing and an orifice size of 1.2 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. Suitable for systems with a differential pressure of 0-26 bar and a maximum temperature of 100°C. The valve has a Kv-value of 0.05 m3/h, this translates to a flow rate of 0.83 l/min at the differential pressure of 1 bar (for water). The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle. Since the valve has a maximum operational pressure of 26 bar, it can be used for high pressure applications. Satisfies all European drinking water requirements. The valve is certified for ATEX Ex-Zone 1, so it can be used in potentially explosive environments requiring this certification. The valve has an IP65 rating if properly connected. Suitable for cold media with temperatures from -30°C.
Important advantages
- This valve satisfies all European drinking water requirements
- ATEX certified up to Ex-Zone 1
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- Good protection against the environment thanks to the IP65 rating
- This popular valve features a compact direct operated plunger design that operates without differential pressure
- Suitable for high pressure applications up to 26 bar
- Bürkert design: proven reliability & durability
6013 series
The Bürkert 6013 valve is one of the most popular Bürkert solenoid valve types. It is a compact, direct operated plunger solenoid valve that operates without a differential pressure over the valve. It can be used for low pressure applications, but also has versions that operate up to 25 bars. The valve is designed for small flow rates with port sizes from G 1/8" up to G 3/8" and orifice sizes ranging from 2 to 6 mm. There is also a special SFB flange design available, which allows for the installation onto a manifold with additional valves. Besides the versatile standard versions, the 6013 is available with options such as ATEX approval, DVGW gas approval, pulse coil (latching), manual override, kick-and-drop function (energy reduction), extreme temperature versions and oil & fat free versions for oxygen, vacuum and analysis applications.
Please note: this product is made to order and can therefore unfortunately not be returned.
