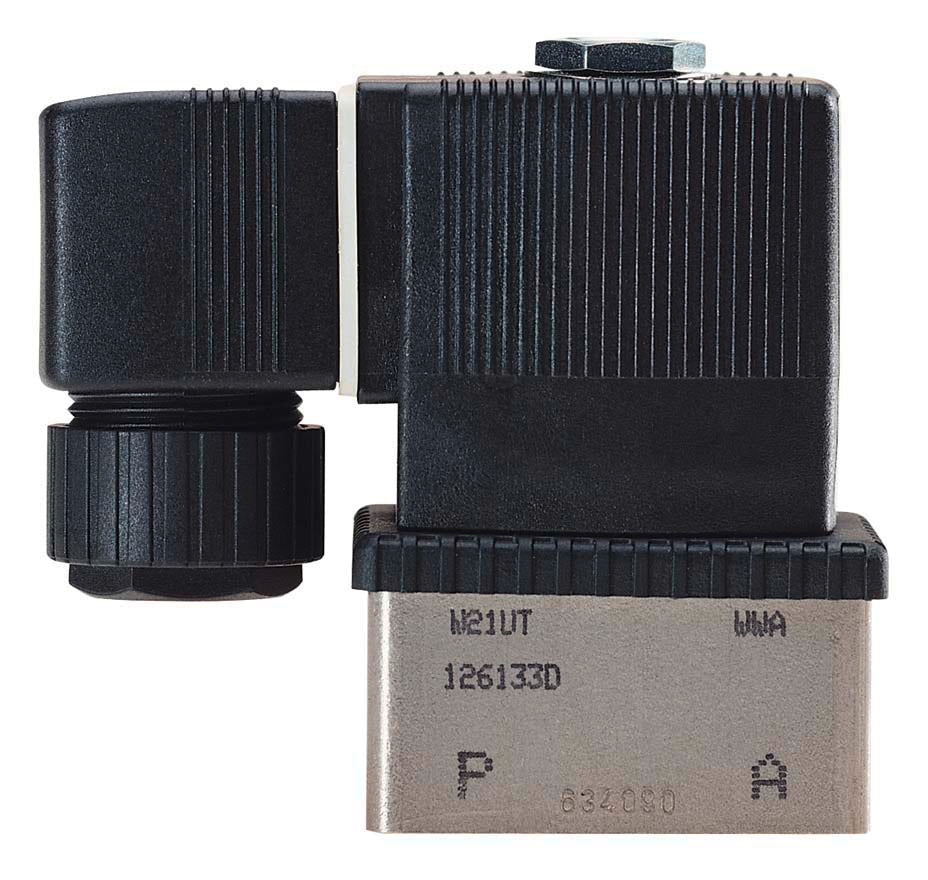

1/8'' NPT Stainless Steel Latching 24VDC Oxygen Fat/Oil Free Solenoid Valve 6013 237265

Bürkert direct operating 2/2-way solenoid valve with 1/8'' NPT inner threads and 24V DC (direct current) coil. The valve has a stainless steel housing with PTFE sealing and an orifice size of 3 mm. The circuit function of the solenoid valve is bistable. Suitable for systems with a differential pressure of 0-6 bar and a maximum temperature of 120°C. The valve has a Kv-value of 0.23 m3/h, this translates to a flow rate of 3.83 l/min at the differential pressure of 1 bar (for water). The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The PTFE (polytetrafluoroethene or teflon) sealing, is resistant to almost all media. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle. The valve is fat and oil free, meaning it won't contaminate the media. Therefore, it's suitable for laboratory use as well as oxygen. The valve requires an electrical pulse to switch between open and closed states rather than a continous signal, leading to a lower energy consumption. The valve has an IP65 rating if properly connected.

Important advantages

• Oil and fat free, so the valve does not contaminate the medium
• Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
• Good protection against the environment thanks to the IP65 rating
• This valve is suitable for use with oxygen
• This latching valve switches position with a small electrical pulse and therefore consumes very little energy
• This popular valve features a compact direct operated plunger design that operates without differential pressure
• Bürkert design: proven reliability & durability

6013 series

The Bürkert 6013 valve is one of the most popular Bürkert solenoid valve types. It is a compact, direct operated plunger solenoid valve that operates without a differential pressure over the valve. It can be used for low pressure applications, but also has versions that operate up to 25 bars. The valve is designed for small flow rates with port sizes from G 1/8" up to G 3/8" and orifice sizes ranging from 2 to 6 mm. There is also a special SFB flange design available, which allows for the installation onto a manifold with additional valves. Besides the versatile standard versions, the 6013 is available with options such as ATEX approval, DVGW gas approval, pulse coil (latching), manual override, kick-and-drop function (energy reduction), extreme temperature versions and oil & fat free versions for oxygen, vacuum and analysis applications.

Please note: this product is made to order and can therefore unfortunately not be returned.
