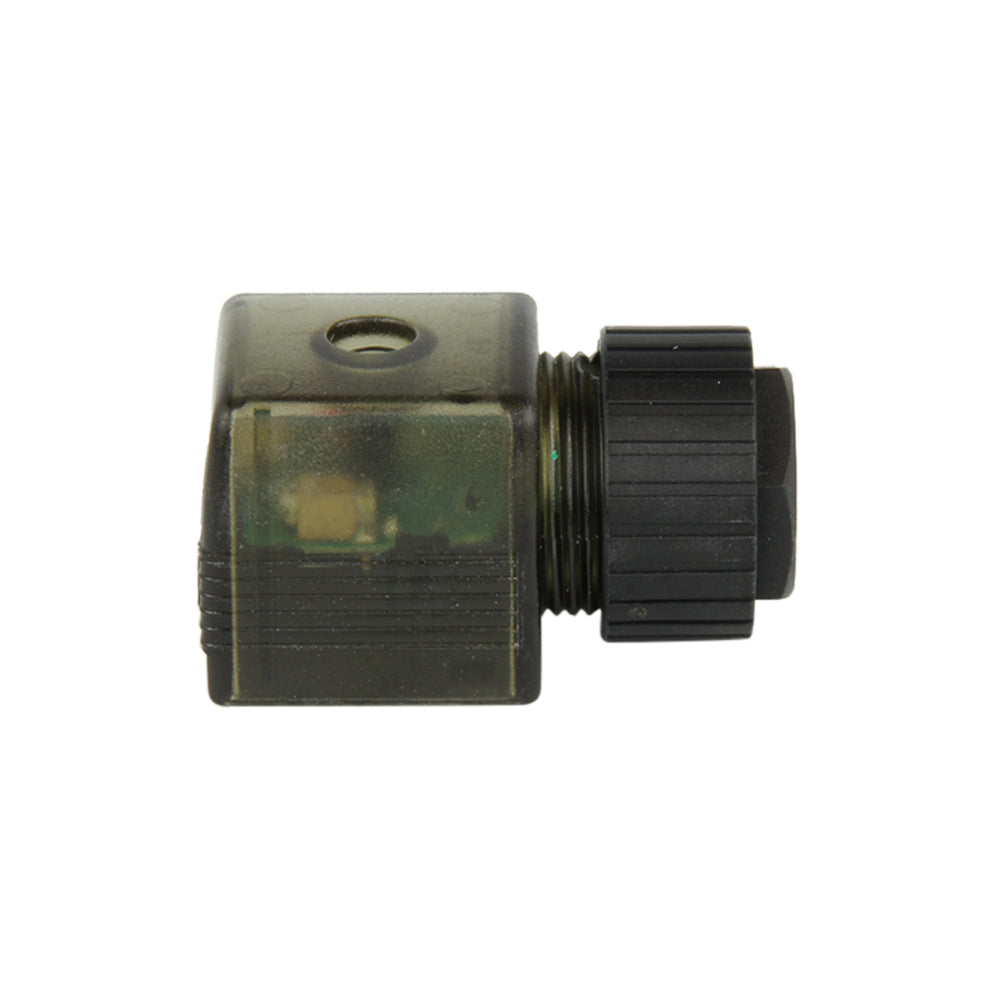

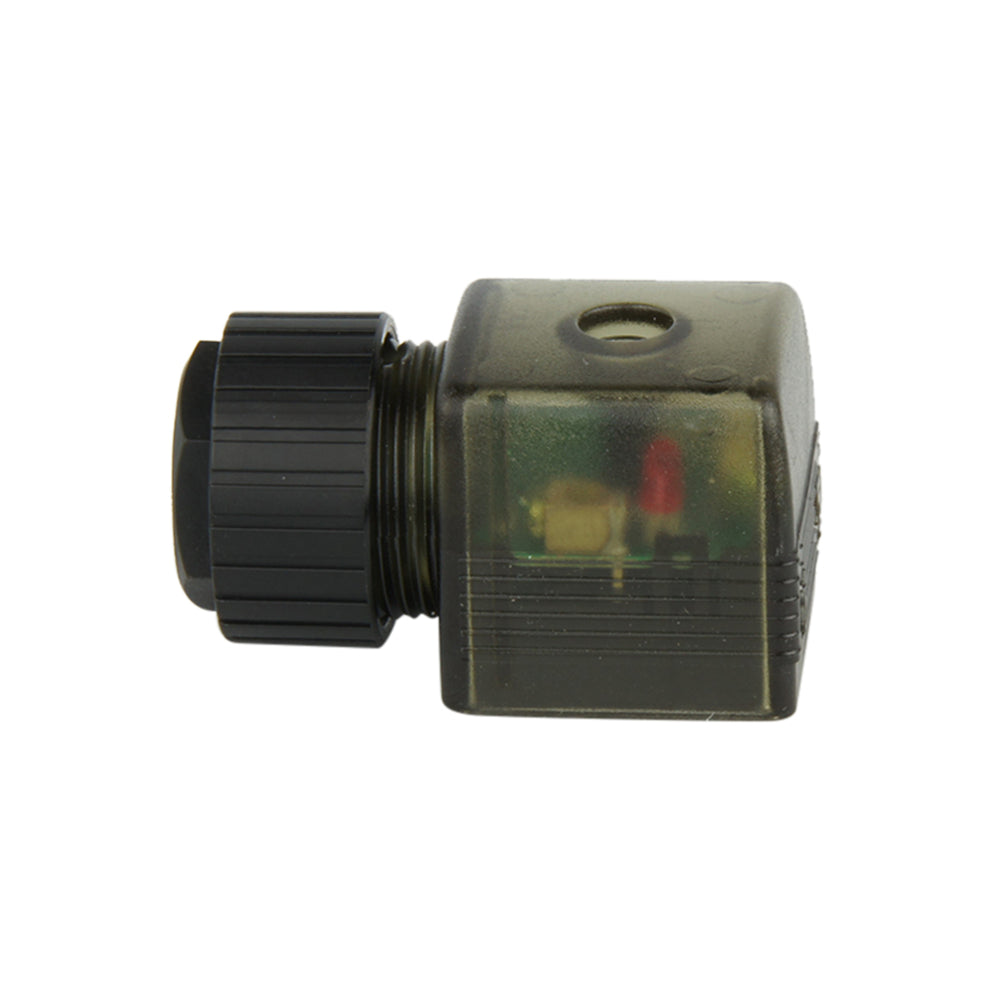

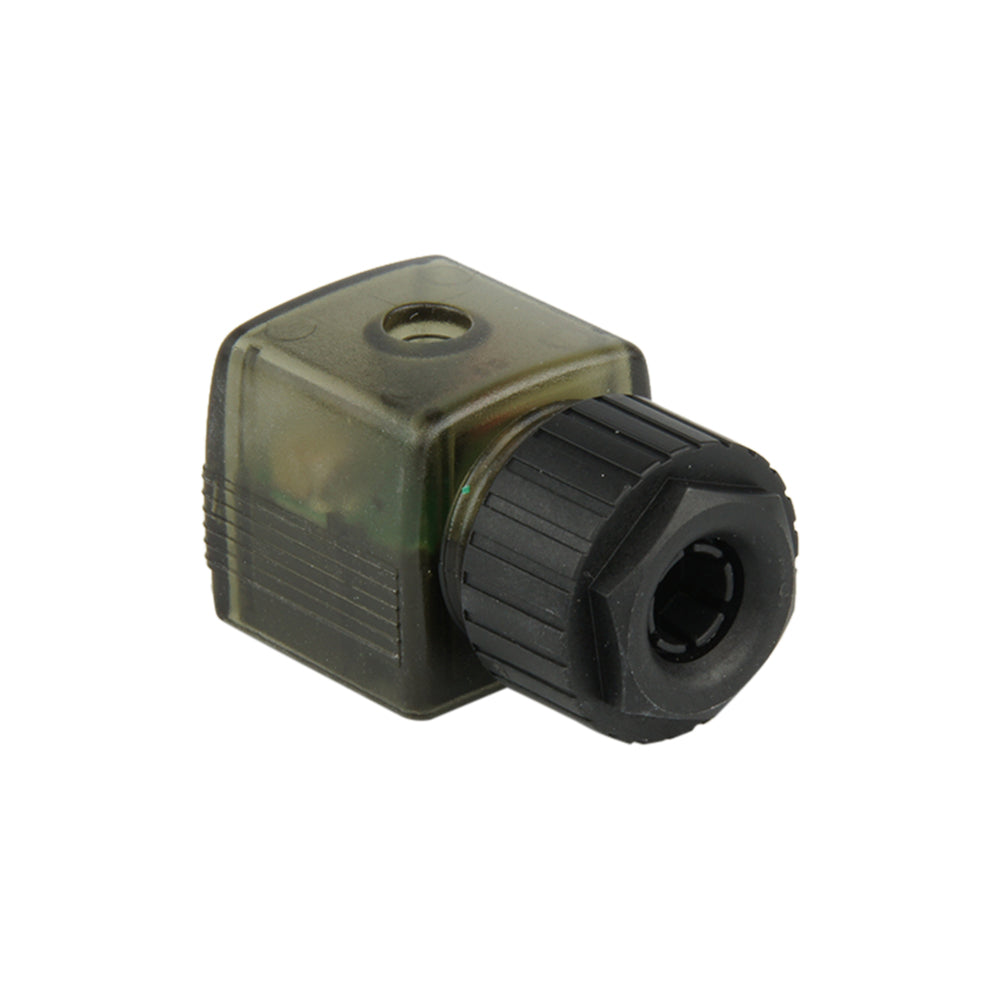

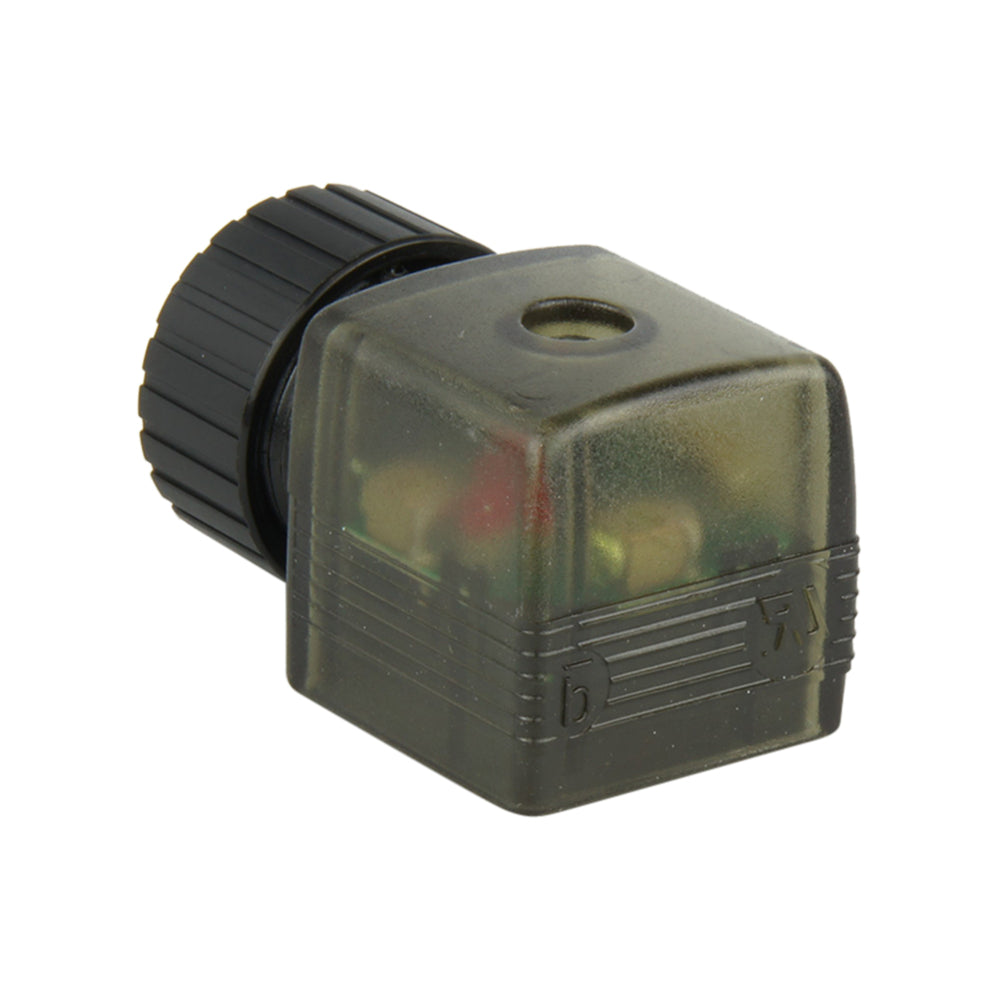

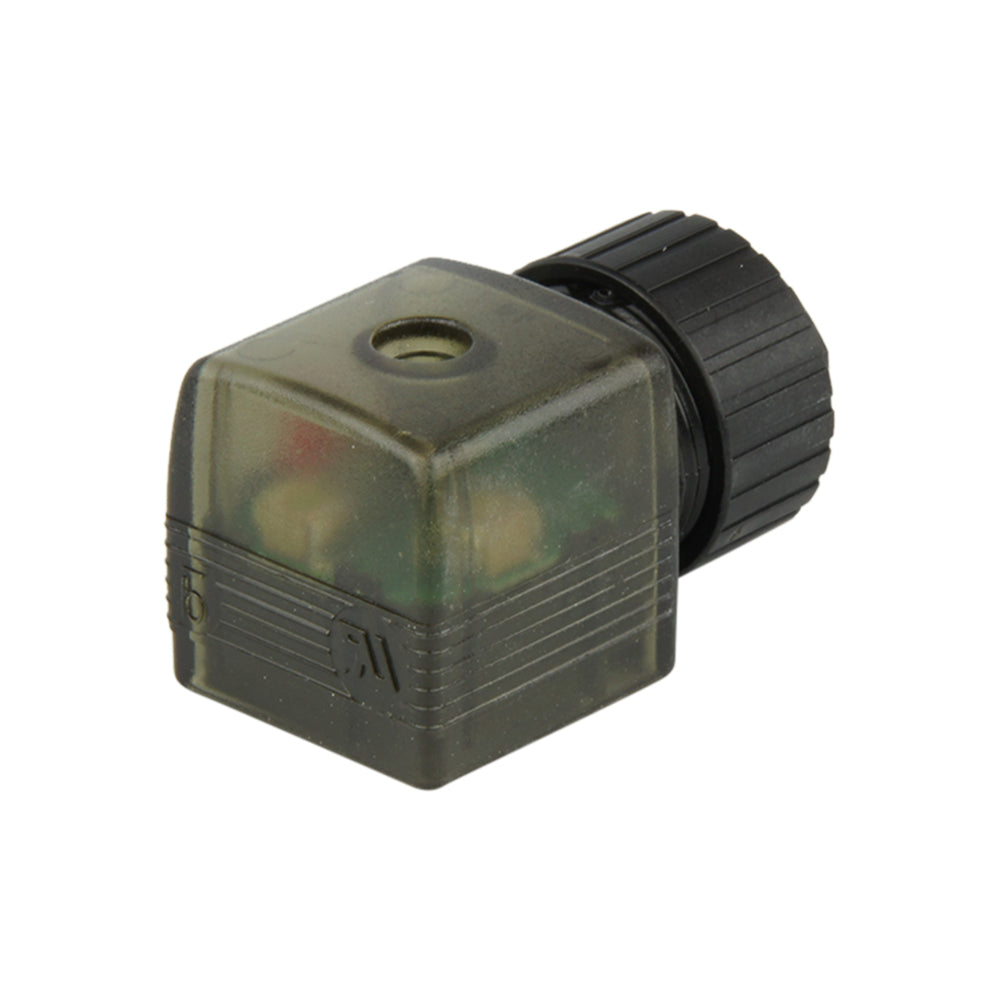

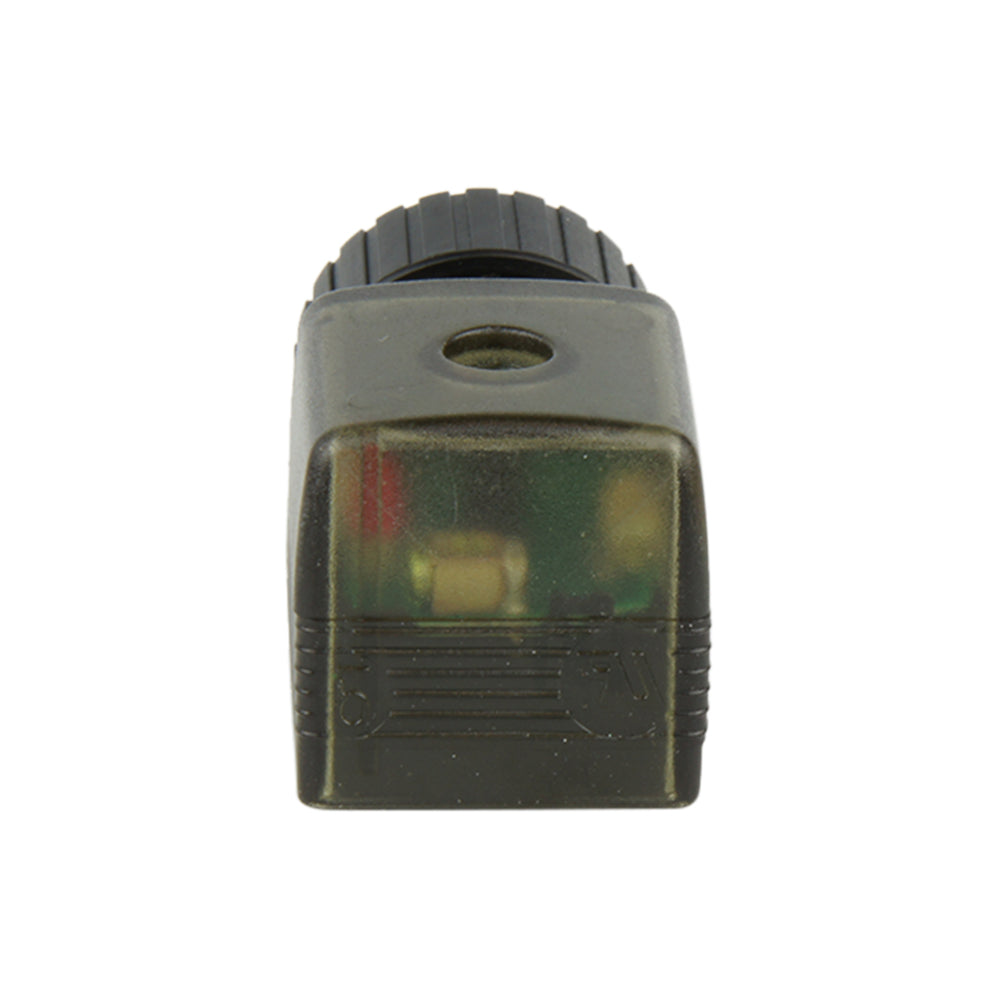

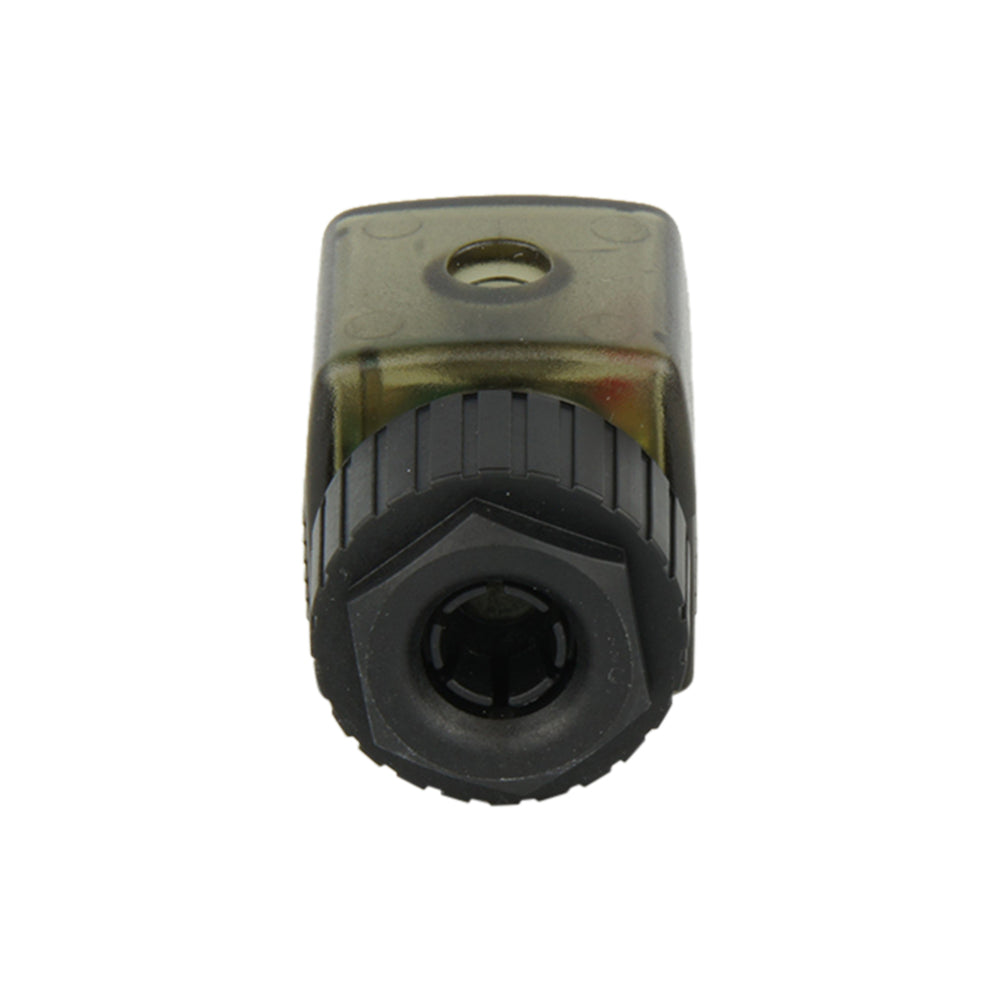

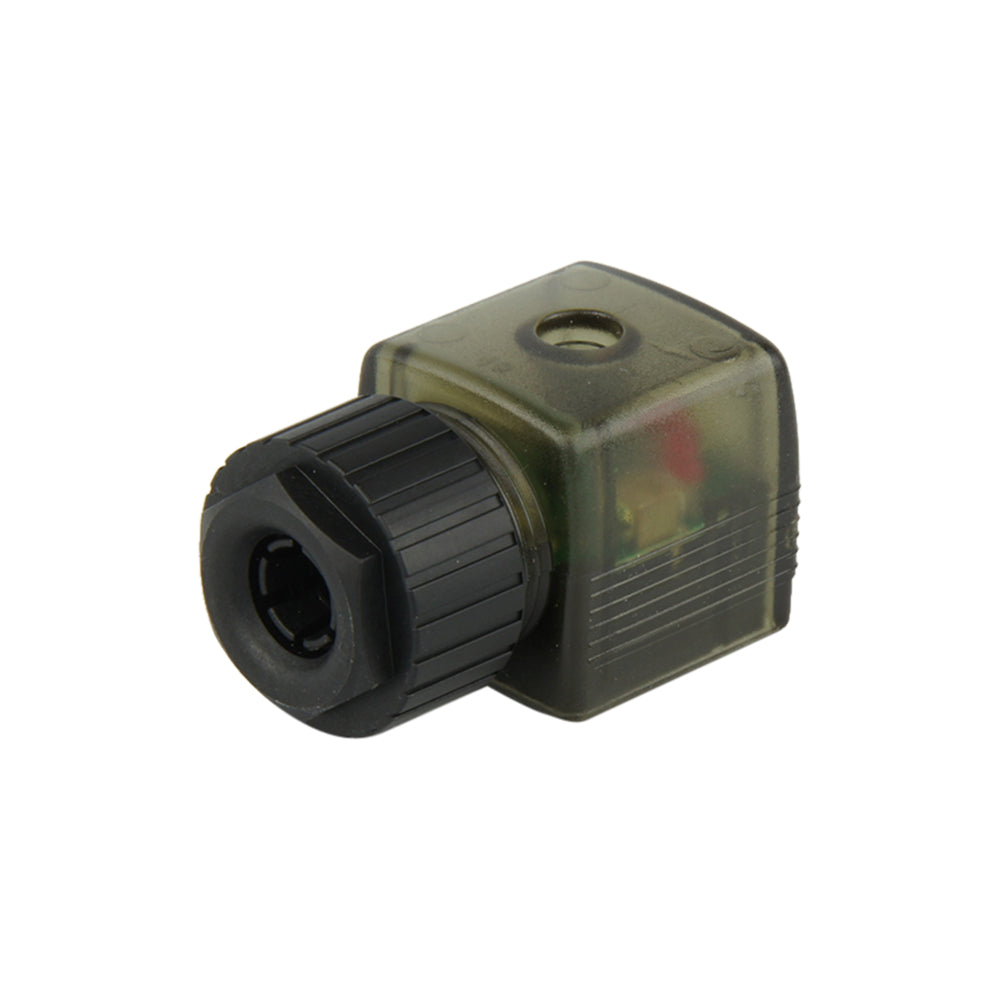

Connector 12-24V DC (DIN - A) with power reduction - Burkert 2508 212511
Notice: This product is discontinued
This Burkert 2508 DIN-A connector is used for connecting electrical components, like a solenoid valve, to a power supply. It is rated IP65, has a rated voltage of 12 - 24V DC, max amperage of 1.5A, and suitable for an ambient temperature of max 90⁰C. This cable plug is the LR version, so it optimizes valve control by decreasing valve power consumption. Not suitable for alternate current power supplies (AC). It is modular, compact and allows for fast assembly and reduced integration time.
Notice: This product is discontinued
Description
This Burkert 2508 connector is suitable for a DIN EN 175301-803 Form A (previously DIN 43650) connection, but simply referred to as a DIN-A connection. DIN-A connectors are also called "sugar cube connectors" or "MPM". The Form A refers to the distance between the pins, which is 18mm. It is rated for 12 - 24V DC, 1.5A, and suitable for an ambient temperature range of -10⁰C to 55⁰C . It is modular, compact, IP65 certified, connects the wires at a 90⁰ angle, allows for fast assembly and reduced integration time. This version comes with a steel mounting screw and as standard has an earth ground connection point. This cable plug is the LR version. It optimizes valve control by decreasing valve power consumption. The benefits of decreased power consumption include energy savings and potentially increased valve lifespan by decreased coil temperature in continuous operation.
Pros:
- Adheres to DIN EN 175301-803 Form A, which is commonly used globally and can be used with numerous brands.
- This cable plug is the LR version, so it optimizes valve control by decreasing valve power consumption.
- Burkert proven reliability.
- Allows for fast assembly and reduced integration time.
- IP65 certified.
Cons:
- Only suitable for 12 - 24V DC.
- Not suitable for alternate current power supplies (AC).
2508 series
The Burkert 2508 series is a range of cable plugs used to connect a power source to an electrical component, like a valve. Every plug is designed according to DIN EN 175301-803 (previously DIN 43650) Form A (shortly DIN-A). It comes in a wide variety of voltages, amperage and designs, each of which meet different protection, indication, or performance requirements. Possible circuitry options are: 2-pin without circuit, 3-pin without circuit, LED, varistor, rectifier, pole protection, freewheeling diode, HL-circuit, LR-circuit, IN-circuit, or a combination of different circuits. They connect at a 90⁰ angle and are IP65 certified, allowing for fast assembly and reduced integration time.
