R1''(M) x G3/4'' (F) reducer bushing

Notice: This product is discontinued and replaced by FL2S-FM-BN-034G-100G

G 3/4'' x G 1'' F/M Nickel plated Brass Reducing Ring 16 Bar
G 3/4'' x G 1'' F/M Nickel plated Brass Reducing Ring 16 Bar
FL2S-FM-BN-034G-100G $10.36
Discontinued

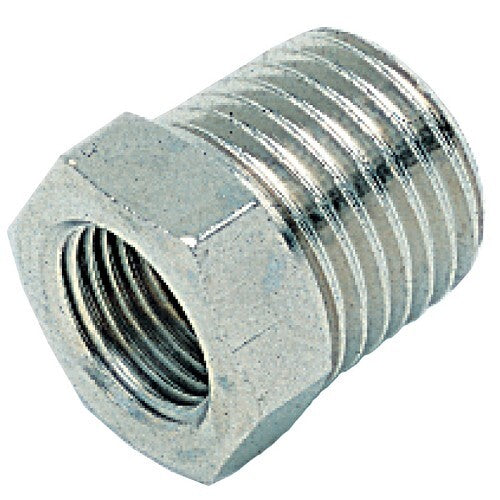

R1''(M) x G3/4'' (F) reducer bushing
R1''(M) x G3/4'' (F) reducer bushing
Image may vary slightly
See specifications for accurate information.
Reference: 20809
Brand: Tameson

G3/4""x(F)R1""(M) Reducer bushing of nickel plated brass, tapered external thread and parallel internal thread.

View all

Notice: This product is discontinued and replaced by FL2S-FM-BN-034G-100G

G 3/4'' x G 1'' F/M Nickel plated Brass Reducing Ring 16 Bar
G 3/4'' x G 1'' F/M Nickel plated Brass Reducing Ring 16 Bar
FL2S-FM-BN-034G-100G $10.36
Description
Specifications
Downloads
Related products

Description

Reducer bushing of nickel-plated brass for an operating pressure of 0 up to 16 bar. Tapered external thread and parallel internal thread.

Downloads

Specifications

Thread
1 inch
Thread (smaller)
3/4 inch
Connection type
Outer thread conical BSPT-R, Inner thread cylindrical BSPP-G
Material
Housing material.
Brass
Min pressure (bar)
0
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
16
Model
1-part
Bend radius (mm)
0
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Surface protection connection 2
Nickel-plated
Shape
Straight
With drain
No
