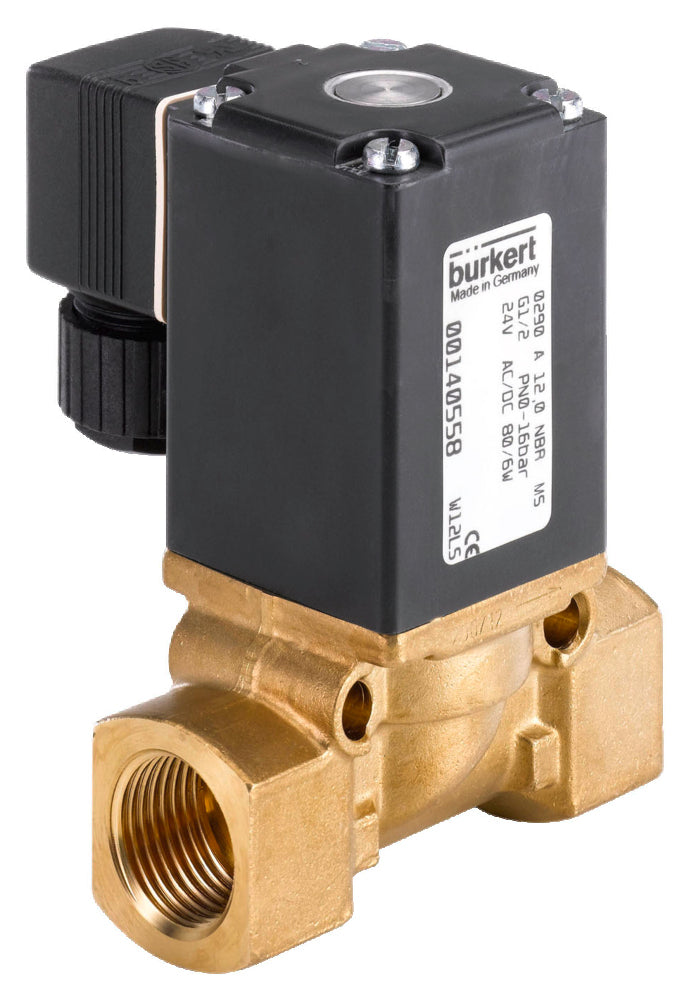

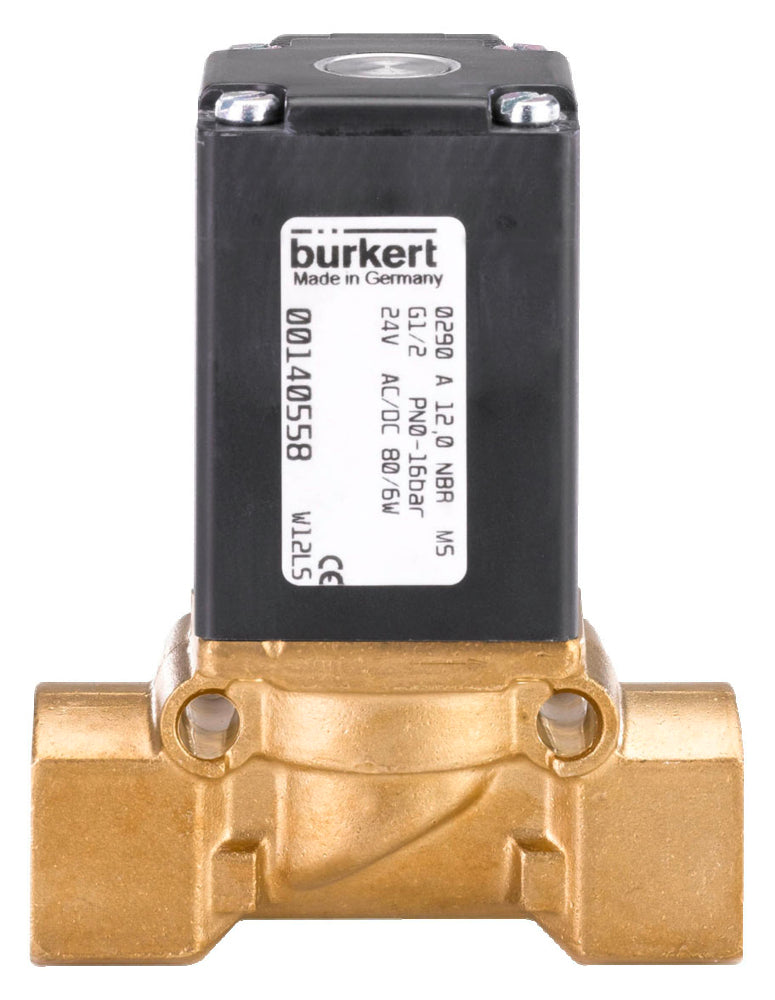

G3/4'' Brass 230VAC Solenoid Valve Burkert 0290 132454

Bürkert semi-direct operating 2/2-way solenoid valve with G3/4'' inner threads and 230V AC (alternating current) coil. The valve has a brass housing with NBR sealing and an orifice size of 20 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The NBR (nitrile rubber) sealing is suited for water, air, alcohol and is fairly resistant to oil and petrol. NBR is unsatisfactory with oxidising fluids. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve's design prevents water hammering.

Important advantages

• The risk of water hammer is low, thanks to the dampened closing
• Opens without differential pressure thanks to the hard-coupled membrane
• Quiet closing thanks to the damped design
• Bürkert design: proven reliability & durability

0290 series

The Bürkert 0290 valve is a semi-direct (servo assisted) solenoid valve of the S.EV series. The membrane features a fixed coupling to a plunger. This means that the valve opens without a differential pressure over the valve. It can be used for low pressure applications, such as gravity fed systems or closed circulating circuits. The valve is designed for a quiet operation. All UC variants have electronic control to achieve a high inrush current to open the valve and a low holding current to keep the valve in the opened position. This 'kick and drop' system leads to a low power consumption and a low heat generation which gives the 0290 a long lifecycle.

Please note: this product is made to order and can therefore unfortunately not be returned.
