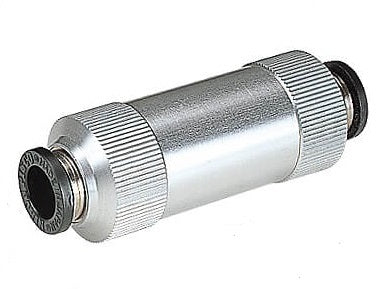

12mm - 10mm Aluminum Check Valve

12mm - 10mm Aluminum Check Valve
Image may vary slightly
See specifications for accurate information.
Reference: CVG12-10A
Brand: Pisco
This is an unequal union straight spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite directio
View all
Regular price
$96.53
excl VAT

In stock +36 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 36 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 38 - 39 business days

Description
Specifications
Downloads
Related products

This is an unequal union straight spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 10 mm push-in fitting on one side and a 10 mm push-in fitting on the other side. The push-in fitting provides an easy connection with the tubing. Push the tube in and the fitting will fix it with stainless steel claws. The flow is metered going from the male threaded port to the push-in fitting port.

It is suitable for a maximum operating pressure of 9 bar (130.5 psi. Also suitable for vacuum applications at a pressure of -1 bar (-14.5 psi). It has NBR seals that make it suitable for applications within a temperature range from 0 to 60°C (32 to 140 °F) (no freezing).

Pros:

  • Suitable for vacuum applications
  • Equipped with easy to connect push-in fittings

Cons:

  • Dust could damage the pneumatic system if vacuum is applied without a filter on the inlet side

CVG series

The CVG - series includes straight spring loaded check valves that provide one-directional flow of the air. These valves have a 10 mm push-in fitting on one side and a 12 mm push-in fitting on the other side. The maximum operating pressure is at 9 bar, also suitable for vacuum applications at a minimum pressure of -1 bar. These valves have a cracking pressure of 0.1 bar. The check valves are NBR sealed which make them suitable for a temperature range from 0 to 60°C (no freezing).
