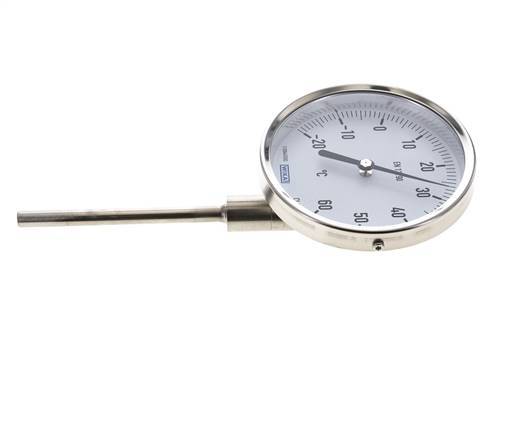

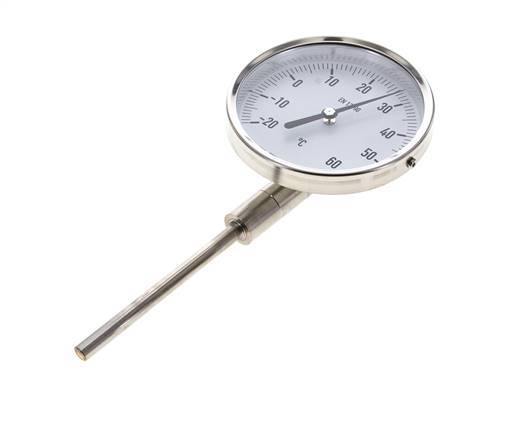

0 to +80°C Stainless Steel Bimetallic Thermometer 100mm Cabinet 160mm Stem Bottom
Bottom connection bimetallic industrial thermometer with a stainless steel cabinet for measuring temperatures from 0 to +80°C. The themometer has a plain stem with a 18 mm collar. The stainless steel design enables operation up to a maximum pressure of 25 bar (363 psi). The thermometer has a 100 mm cabinet and a 160 mm long, 8 mm wide stainless steel stem that contains the bimetallic coil. Manufactured to a tolerance class 1, according to EN 13190. It has a wide range of applications in machine building, air-conditioning, piping and apparatus construction. IP43 degree of protection.
- Regular price
- $182.05
Description
This bottom connection industrial bimetallic thermometer has a wide range of applications in machine building, air-conditioning, piping and apparatus construction. It can measure temperatures from 0 to +80°C and withstand environment temperature ranging from -20 to +60°C. The thermometer has a 100 mm wide cabinet and a 160 mm long, 8 mm wide stainless steel stem that contains a bimetallic coil. The thermometer is equipped with a stainless steel cabinet and a plain stem with a 18 mm collar. The stainless steel design enables operation up to a maximum pressure of 25 bar (363 psi). The thermometer is manufactured to a tolerance class 1, according to EN 13190. It has an IP43 degree of protection.
Pros:
- Accuracy class 1 in accordance with EN 13190
- Simple and low maintenance design
- Not prone to malfuntion due to the mechanical design
- Suitable for a maximum pressure of up to 25 bar (362 psi)
- IP43 degree of protection.
Cons:
- Not equipped with a thermowell
A52 series
The A52 series of bimetallic industrial thermometers is designed for temperature indication in machine building, air-conditioning, piping and apparatus construction. Scale ranges from -30 to 500°C and these thermometers can be used in ambient temperatures ranging from -20 to 60°C. Display width ranges from 63 to 200 mm while stem length ranges from 63 to 200 mm. They have stainless steel housing and stems. The stainless steel design makes them suitable for a maximum operating pressure of up to 25 bar. These thermometers are manufactured to a tolerance class 1 in accordance with EN 13190.
