Wieland GST15I2V T-Distributor - 91.020.1053.1 [100 Pieces]

Wieland GST15I2V T-Distributor - 91.020.1053.1 [100 Pieces]
Wieland GST15I2V T-Distributor - 91.020.1053.1 [100 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3Q9T-X100
Brand: Wieland
Mfr. Part: 91.020.1053.1

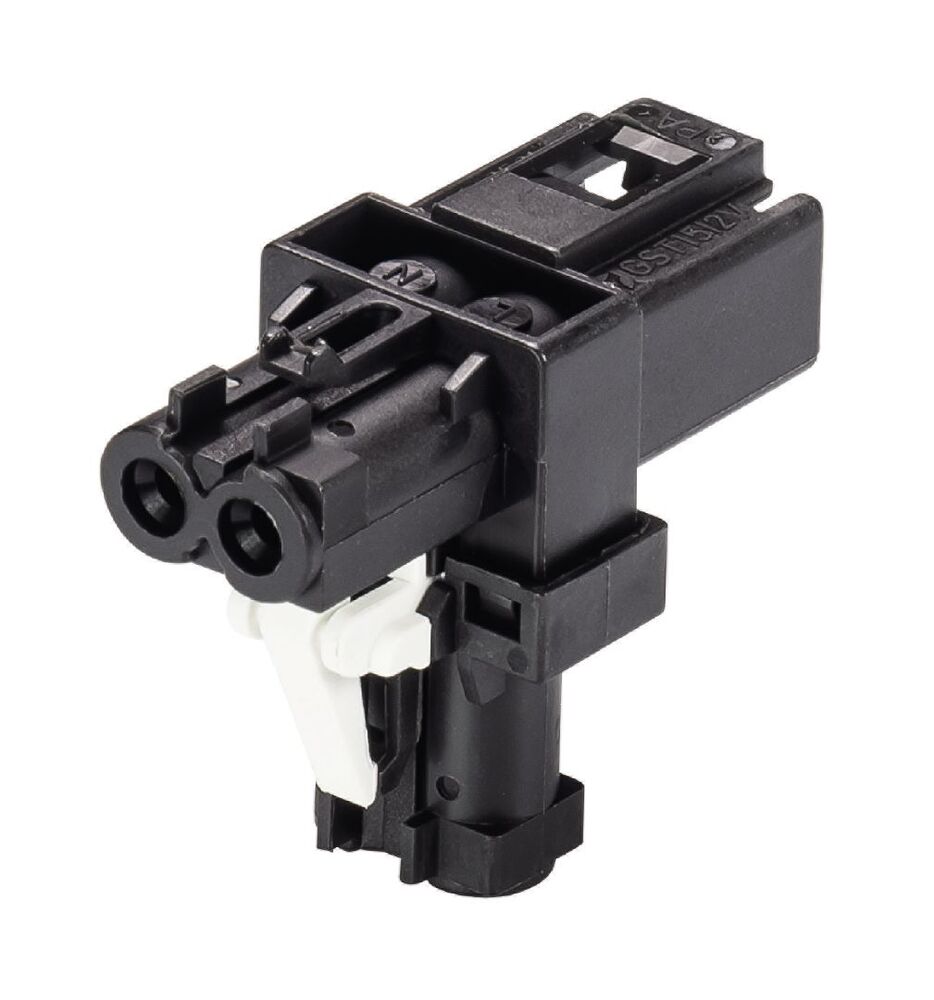

This is a Wieland compatible plug-in building installation distributor with dimensions of 18.1x29.5x34.4mm. It has pole-marking L. N and an insert/contact that's black in color. As a T-distributor, it has two outputs, two poles, and a single inlet. Possessing an IP rating of IP20, it's constructed from cuZn contact material. Features include a phase branch of L1 and is halogen-free. This unit is a 2P1T W distributor in black.

Contains 100 pieces

View all
Note: product cannot be returned
$997.92
excl VAT
In stock +39 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 41 - 42 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a Wieland compatible plug-in building installation distributor with dimensions of 18.1x29.5x34.4mm. It has pole-marking L. N and an insert/contact that's black in color. As a T-distributor, it has two outputs, two poles, and a single inlet. Possessing an IP rating of IP20, it's constructed from cuZn contact material. Features include a phase branch of L1 and is halogen-free. This unit is a 2P1T W distributor in black.

Contains 100 pieces

Downloads

Specifications

Rated voltage (V)
250
Rated current (A)
16
Number of poles
2
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Number of inputs
1
Number of outputs
2
Phase pickup
L1
Pole codification
L, N
Mechanical coding
Yes
Colour coding/contact insert
Black
Colour of the separate adapter piece
Black
Locking mechanism
Integrated in plug-in connector
Halogen free
Yes
Max. continuous temperature resistance contact part (°C)
110
Max. continuous temperature resistance strain relief (°C)
110
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Polyamide (PA)
Contact material
CuZn
Surface treatment contacts
Silver-plated
Pollution degree
2
Rated surge voltage (kV)
4
Length (mm)
34.4
Height (mm)
The product's height without packaging.
29.5
Width (mm)
The product's width without packaging.
18.1
Type of distributor
T-distributor
Mounting possibility
No
