Wieland Gesis Mini Solder Connector 2P 16A - 91.023.0153.0 [100 Pieces]

Wieland Gesis Mini Solder Connector 2P 16A - 91.023.0153.0 [100 Pieces]
Wieland Gesis Mini Solder Connector 2P 16A - 91.023.0153.0 [100 Pieces]

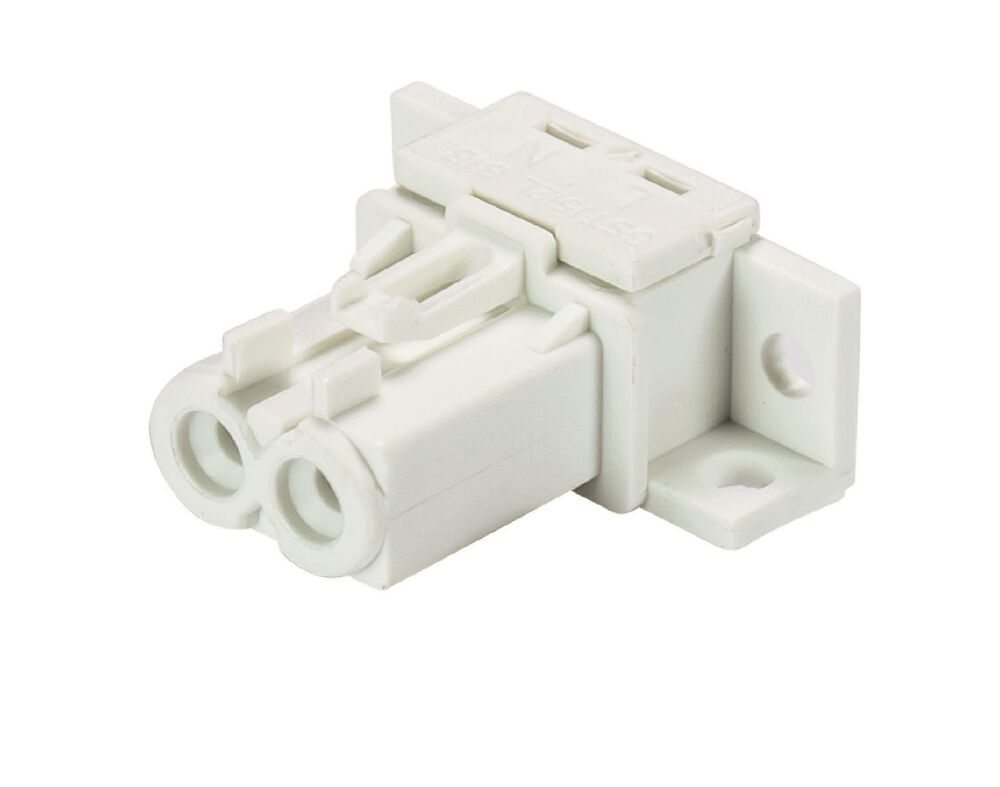

Image may vary slightly
See specifications for accurate information.
Reference: E3JEA-X100
Brand: Wieland
Mfr. Part: 91.023.0153.0

The Wieland device connection is designed for bare building installations, with dimensions of 15.1x12.2x21.5mm. It features a female contrast plug and the installation uses a solder connection. There is no threaded connection size since it does not use a threaded connection and it supports a solder type of connection. There is one connection per pole and it has 2 poles. In terms of safety, it has a protection degree of IP20. The GST15I2 BUSDEEL L B1H W M is white.

Contains 100 pieces

View all
Note: product cannot be returned
$216.18
excl VAT
In stock +20 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 20 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 22 - 23 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Wieland device connection is designed for bare building installations, with dimensions of 15.1x12.2x21.5mm. It features a female contrast plug and the installation uses a solder connection. There is no threaded connection size since it does not use a threaded connection and it supports a solder type of connection. There is one connection per pole and it has 2 poles. In terms of safety, it has a protection degree of IP20. The GST15I2 BUSDEEL L B1H W M is white.

Contains 100 pieces

Downloads

Specifications

Rated voltage (V)
250
Rated current (A)
16
Number of poles
2
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Connection type
Soldering connection
Model
Bus
Built-in version
Soldering connection
Angle of plug
Right-angled
Connection size thread
No thread connection
Number of connections per pole
1
Pole codification
L, N
Mechanical coding
Yes
Colour coding/contact insert
White
Colour of the separate adapter piece
Without adapter piece
Colour housing
White
Locking mechanism
Integrated in plug-in connector
Max. continuous temperature resistance contact part (°C)
100
Max. continuous temperature resistance strain relief (°C)
100
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Polyamide (PA)
Halogen free
Yes
Fire load (kWh)
0.01
Contact material
CuZn
Surface treatment contacts
Silver-plated
Pollution degree
2
Rated surge voltage (kV)
4
Length (mm)
21.5
Height (mm)
The product's height without packaging.
12.2
Width (mm)
The product's width without packaging.
15.1
