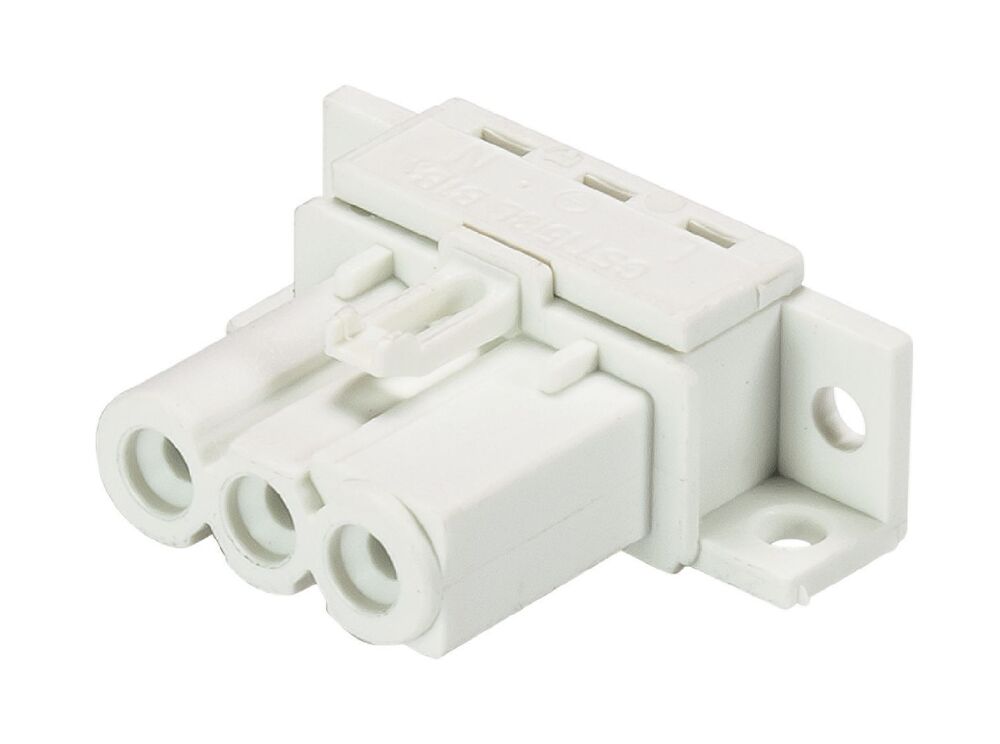

Wieland Gesis Mini Connector - 91.031.0153.0 [100 Pieces]

Wieland Gesis Mini Connector - 91.031.0153.0 [100 Pieces]
Wieland Gesis Mini Connector - 91.031.0153.0 [100 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3JEY-X100
Brand: Wieland
Mfr. Part: 91.031.0153.0

The Wieland device connector is suitable for bare building installations. Its dimensions are 15.1mm x 12.2mm x 21.5mm and it is designed in a female contrast plug style. The device features a solder connection for installation, with no threaded screw connection. It has one connection per pole and has three poles in total. As for its protective degree, it comes with IP20 ingress protection. The product is GST15I3 PCB 3-pole white in color.

Contains 100 pieces

View all
Note: product cannot be returned
$319.50
excl VAT
In stock +20 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 20 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 22 - 23 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Wieland device connector is suitable for bare building installations. Its dimensions are 15.1mm x 12.2mm x 21.5mm and it is designed in a female contrast plug style. The device features a solder connection for installation, with no threaded screw connection. It has one connection per pole and has three poles in total. As for its protective degree, it comes with IP20 ingress protection. The product is GST15I3 PCB 3-pole white in color.

Contains 100 pieces

Downloads

Specifications

Rated voltage (V)
250
Rated current (A)
16
Number of poles
3
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Connection type
Soldering connection
Model
Bus
Built-in version
Soldering connection
Angle of plug
Straight
Connection size thread
No thread connection
Number of connections per pole
1
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
White
Colour of the separate adapter piece
Without adapter piece
Colour housing
White
Locking mechanism
Integrated in plug-in connector
Max. continuous temperature resistance contact part (°C)
100
Max. continuous temperature resistance strain relief (°C)
100
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Polyamide (PA)
Halogen free
Yes
Fire load (kWh)
0.01
Contact material
CuZn
Surface treatment contacts
Silver-plated
Pollution degree
2
Rated surge voltage (kV)
4
Length (mm)
21.5
Height (mm)
The product's height without packaging.
12.2
Width (mm)
The product's width without packaging.
15.1
