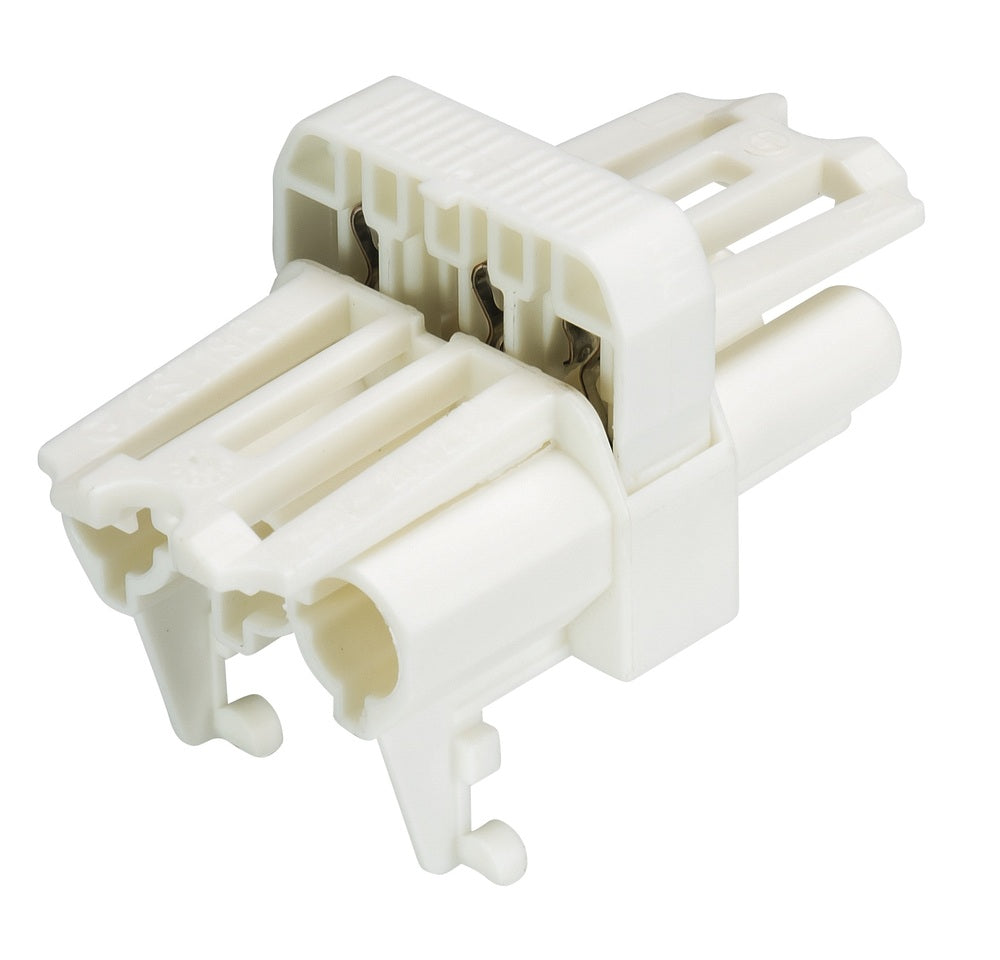

Wieland GESIS Classic Distributor - 92.030.2153.0 [100 Pieces]

Wieland GESIS Classic Distributor - 92.030.2153.0 [100 Pieces]
Wieland GESIS Classic Distributor - 92.030.2153.0 [100 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3JJP-X100
Brand: Wieland
Mfr. Part: 92.030.2153.0

The Wieland GST18i3 is a compact insertable distributor for building installations, with dimensions of 30.4x29.55x59mm. This connector is designed with a pole marking of L.N. PE and features a white coding/contact insert. The direct connection distributor type has two outlets and three poles, with one entry point. It offers a level of protection rated at IP20. The distributor comes with integrated fixing possibilities and is made of contact material Cuzn. This model is particularly known as GST18I3 Top-Connector in white.

Contains 100 pieces

View all
Note: product cannot be returned
$789.48
excl VAT
In stock +39 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 41 - 42 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Wieland GST18i3 is a compact insertable distributor for building installations, with dimensions of 30.4x29.55x59mm. This connector is designed with a pole marking of L.N. PE and features a white coding/contact insert. The direct connection distributor type has two outlets and three poles, with one entry point. It offers a level of protection rated at IP20. The distributor comes with integrated fixing possibilities and is made of contact material Cuzn. This model is particularly known as GST18I3 Top-Connector in white.

Contains 100 pieces

Downloads

Specifications

Rated voltage (V)
250
Rated current (A)
20
Number of poles
3
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Number of inputs
1
Number of outputs
2
Phase pickup
L1
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
White
Colour of the separate adapter piece
White
Locking mechanism
Integrated in plug-in connector
Halogen free
Yes
Max. continuous temperature resistance contact part (°C)
100
Max. continuous temperature resistance strain relief (°C)
100
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Polyamide (PA)
Fire load (kWh)
0.069
Contact material
CuZn
Surface treatment contacts
Silver-plated
Pollution degree
2
Rated surge voltage (kV)
4
Length (mm)
59
Height (mm)
The product's height without packaging.
29.55
Width (mm)
The product's width without packaging.
30.4
Type of distributor
Direct connection luminaire
Mounting possibility
Integrated
