Wieland Gesis Classic Device Connector - 92.051.8658.0
Notice: This product will be discontinued in the future

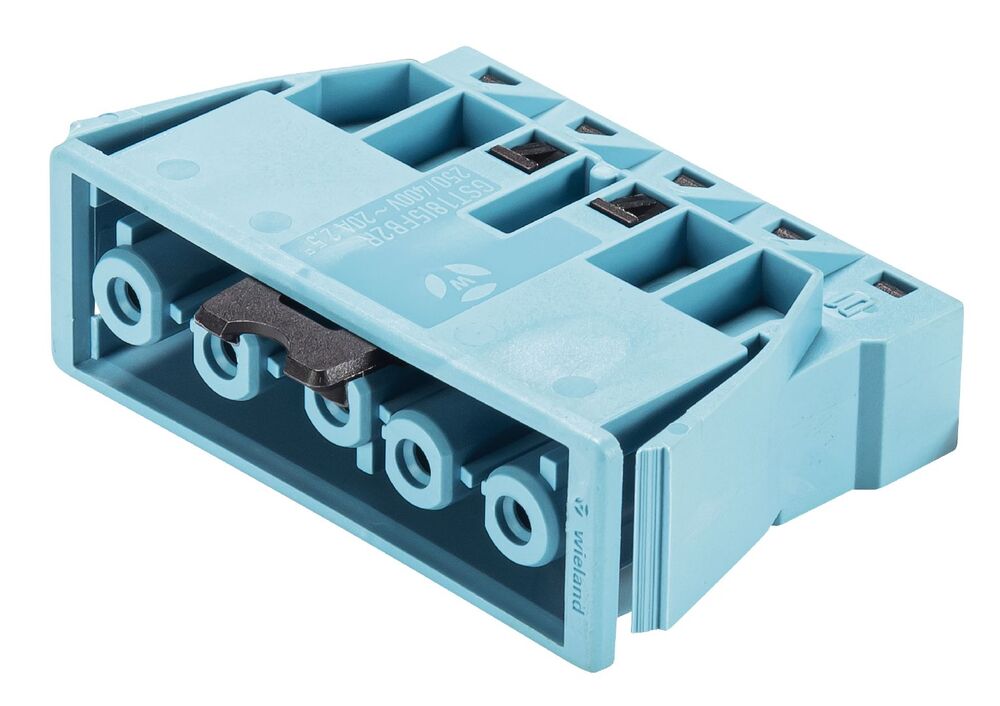

The Wieland GST18I5 is a device connector designed for building installations. It features a compact size measuring 52.3x18.5x38mm (WxHxL). The design includes a female contraplug variant and an inbuilt snap-in or screw part variant. However, it does not require a threaded connection as its connection method incorporates a spring clamp connection design. An important feature is the availability of two connections per pole, and it accommodates up to 5 poles. For protection, it is given an IP20 rating, indicating resistance to solid objects up to 12mm. Its body comes in pastel blue color with a spring lock feature.
Notice: This product will be discontinued in the future
Description
The Wieland GST18I5 is a device connector designed for building installations. It features a compact size measuring 52.3x18.5x38mm (WxHxL). The design includes a female contraplug variant and an inbuilt snap-in or screw part variant. However, it does not require a threaded connection as its connection method incorporates a spring clamp connection design. An important feature is the availability of two connections per pole, and it accommodates up to 5 poles. For protection, it is given an IP20 rating, indicating resistance to solid objects up to 12mm. Its body comes in pastel blue color with a spring lock feature.
