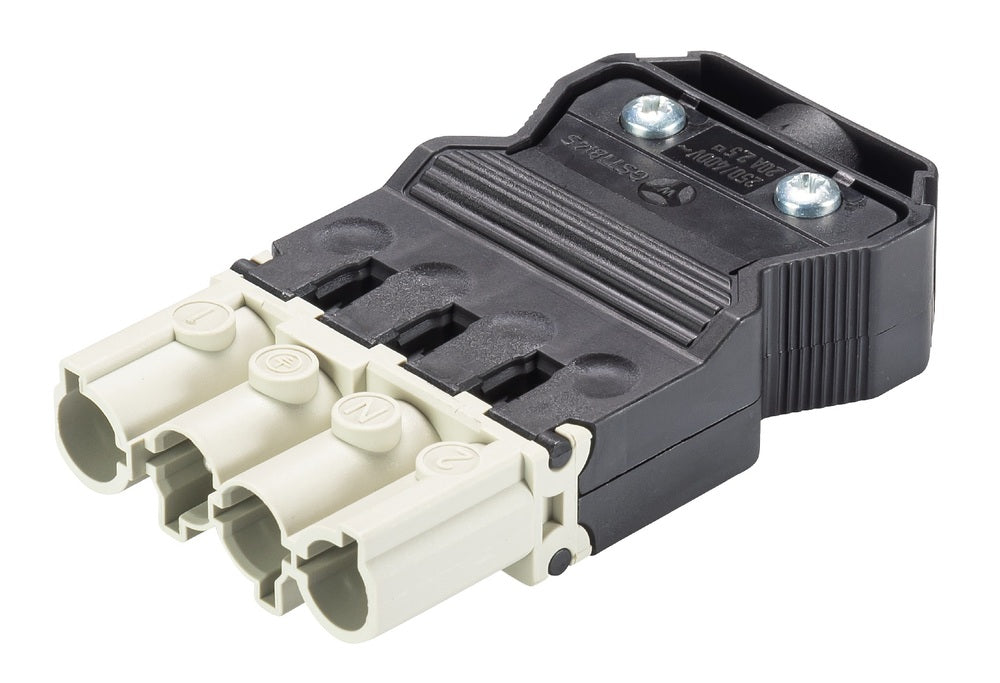

Wieland Gesis Classic Connector 4P Male Screw 250V/400V 20A - 92.944.3553.0 [50 Pieces]

Wieland Gesis Classic Connector 4P Male Screw 250V/400V 20A - 92.944.3553.0 [50 Pieces]
Wieland Gesis Classic Connector 4P Male Screw 250V/400V 20A - 92.944.3553.0 [50 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3JNW-X50
Brand: Wieland
Mfr. Part: 92.944.3553.0

The Wieland GST18i4 is a male connector designed for plug-in building installations. With dimensions of 38x15x69.4mm, it features a gray coding/contact insert and a pole marking of 2. N. PE. 1. Its connection method is screw connection and it accommodates a cross-sectional connection of 0.75 - 2.5mm² for both solid and flexible wires. The connector ensures a robust and reliable connection for building installations. Its grey color coding system aids in easy identification and its compact size provides an efficient use of space.

Contains 50 pieces

View all
Note: product cannot be returned
$410.94
excl VAT
In stock +39 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 41 - 42 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Wieland GST18i4 is a male connector designed for plug-in building installations. With dimensions of 38x15x69.4mm, it features a gray coding/contact insert and a pole marking of 2. N. PE. 1. Its connection method is screw connection and it accommodates a cross-sectional connection of 0.75 - 2.5mm² for both solid and flexible wires. The connector ensures a robust and reliable connection for building installations. Its grey color coding system aids in easy identification and its compact size provides an efficient use of space.

Contains 50 pieces

Downloads

Specifications

Rated voltage (V)
400
Rated current (A)
20
Number of poles
4
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP40
Connection type
Screw connection
Model
Plug
Cable diameter (mm)
6.8 mm to 11.5 mm
Connection cross section (fine-strand) (mm²)
0.75 mm² to 2.5 mm²
Connection cross section (solid-core) (mm²)
0.75 mm² to 2.5 mm²
Number of connections per pole
2
Pole codification
2, N, PE, 1
Mechanical coding
Yes
Colour coding/contact insert
Grey
Locking mechanism
Integrated in plug-in connector
With strain relief
Yes
Max. continuous temperature resistance contact part (°C)
100
Max. continuous temperature resistance strain relief (°C)
100
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Polyamide (PA)
Halogen free
Yes
Fire load (kWh)
0.123
Contact material
CuZn
Surface treatment contacts
Tinned
Pollution degree
2
Rated surge voltage (kV)
4
Length (mm)
69.4
Height (mm)
The product's height without packaging.
15
Width (mm)
The product's width without packaging.
38
