Welded End DN 8 On/Off NC Stainless Steel Electric Diaphragm Valve - 3323 - 362258

Welded End DN 8 On/Off NC Stainless Steel Electric Diaphragm Valve - 3323 - 362258

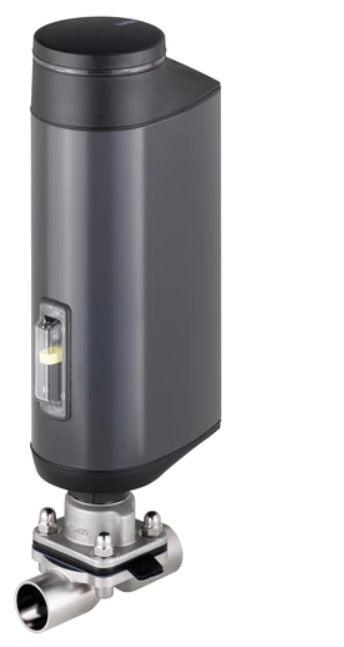

Image may vary slightly
See specifications for accurate information.
Reference: 362258
Brand: Burkert

Bürkert diaphragm valve (type 3323) with welded end DN 8 ports. Designed for on/off applications. For media temperatures ranging from -5 to 130°C (23 to 266°F) at a pressure of 0 to 10 bar (0 to 140 psi). Housing of stainless steel with a PTFE/EPDM diaphragm and a Kv-value of 2.4 m3/h (Cv-value of 2.8 gpm). Electrically actuated with a 24V DC actuator. The actuator uses a büs communications protocol.

View all
Note: product cannot be returned
Regular price
$4186.17
excl VAT

In stock +59 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 59 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 61 - 62 business days

Description
Specifications
Downloads

This Bürkert 2/2-way (type 3323) electric diaphragm valve is designed for on/off applications. This valve has welded end DN 8 ports. The valve has a stainless steel housing with a PTFE/EPDM diaphragm. The valve is delivered as normally closed (NC), which means the valve opens when voltage is applied. The actuator has an energy storage unit. The unit can be used to set a safe position for the valve to return to in case of power loss. For media temperatures ranging from -5 to 130°C (23 to 266°F) at a pressure of 0 to 10 bar (0 to 140 psi). The valve has a Kv-value of 2.4 m3/h (Cv-value of 2.8 gpm). The stainless steel housing is durable, suitable for corrosive media and harsh environments. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve takes 1.1 s to go from fully open to fully closed position. The actuator uses a büs communications protocol.

Pros:

  • Adjustable driving force protects the diaphragm and prolongs the service life
  • Diagnostic functions possible thanks to the fieldbus connection
  • High IP protection IP65/67 ensures adequate splash protection

Series

The Bürkert type 3323, externally controlled diaphragm valves, are composed of an electrically controlled linear actuator, a diaphragm, and a two-way valve housing. The recirculating ball screw allows the electric actuator to work in clean or harsh environments. The valve housings are designed to allow high flow rates and versatile applications without any dead spaces. The position is displayed by a LED light ring that covers 360°. The actuator has a feature to adjust the drive force and protect the diaphragm. The actuator is splash-proof with high IP protection of IP65/IP67. electric actuators move the diaphragm valves with ball screws at high speeds of up to 6 mm/s. Some of the type 3323 valves are suitable for applications with food, oxygen and have explosion proof ATEX, IECEx and UL certificates.
