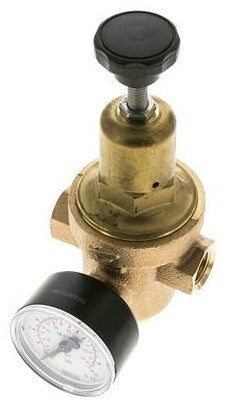

Water Pressure Reducer Bronze G1 1/2'' 75 l/min 1.5-8 bar/22-116psi
This diaphragm pressure reducer is suitable for both gasses and liquids. Its body is made of bronze; the spring hood is hot-pressed brass, and the diaphragm and seals are NBR/CR. The port size is G 1 1/2 inch with female threads. The pressure regulation range is from 1.5 to 8 bar (22 to 116 psi). The flow rate is 75 l/min. This filter pressure reducer can operate within a temperature range from -15 to 60 °C (5 to 140 °F) and handle an input pressure from 0 to 25 bar (362 psi). The pressure reducer comes with a 50 mm pressure gauge displaying a range from 0 to 16 bar. The pressure gauge connection is G 1/4 inch. This pressure reducer is non-relieving.
- Regular price
- $509.82
Description
This diaphragm pressure reducer is suitable for both gasses and liquids. Its body is made of bronze; the spring hood is hot-pressed brass, and the diaphragm and seals are NBR/CR. The port size is G 1 1/2 inch with female threads. The pressure regulation range is from 1.5 to 8 bar (22 to 116 psi). The flow rate is 75 l/min. This filter pressure reducer can operate within a temperature range from -15 to 60 °C (5 to 140 °F) and handle an input pressure from 0 to 25 bar (362 psi). The pressure reducer comes with a 50 mm pressure gauge displaying a range from 0 to 16 bar. The pressure gauge connection is G 1/4 inch. This pressure reducer is non-relieving.
Pros:
- Suitable for both gasses and liquids
Cons:
- Not suitable for steam
