Water & Air Pressure Reducer Brass G1'' 24 l/min 0.5-25 bar/7-362psi
Notice: This product is discontinued

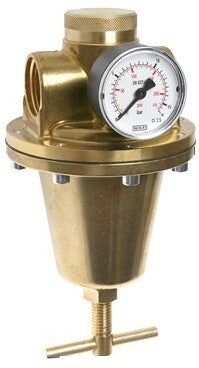

This is a non-relieving water pressure reducer, which means it operates without secondary venting. Its body is made of brass, and the diaphragms and seals are made from NBR. The port size is G 1 inch with female threads. The pressure regulation range is from 0.5 to 25 bar (7 to 362 psi). The flow rate is 24 l/min for water and 7830 l/min for compressed air. This water pressure reducer can operate within a temperature range from 0 to 90 °C (32 to 194 °F) and handle an input pressure from 0 to 40 bar (580 psi). The pressure reducer comes with a 50 mm pressure gauge displaying a range from 0 to 16 bar. The pressure gauge connection is G 1/4 inch. This water pressure reducer is suitable for water, oiled and unoiled compressed air and neutral gases.
Notice: This product is discontinued
Description
This is a non-relieving water pressure reducer, which means it operates without secondary venting. Its body is made of brass, and the diaphragms and seals are made from NBR. The port size is G 1 inch with female threads. The pressure regulation range is from 0.5 to 25 bar (7 to 362 psi). The flow rate is 24 l/min for water and 7830 l/min for compressed air. This water pressure reducer can operate within a temperature range from 0 to 90 °C (32 to 194 °F) and handle an input pressure from 0 to 40 bar (580 psi). The pressure reducer comes with a 50 mm pressure gauge displaying a range from 0 to 16 bar. The pressure gauge connection is G 1/4 inch. This water pressure reducer is suitable for water, oiled and unoiled compressed air and neutral gases.
