Reference: E2A7W
Brand: Wago
Mfr. Part: 771-9993/006-102

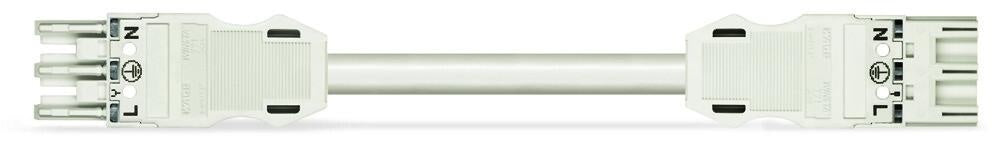

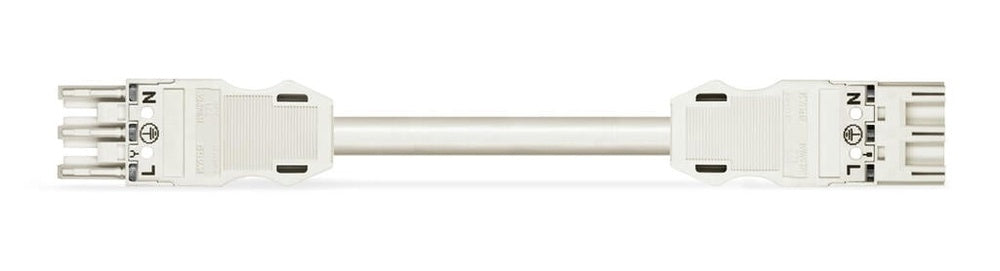

Wago Winsta Midi 771 patch cable inst.bare building installation, design side 1 mating plug (female), design side 2 plug, type made-up cable connection cable, total length 1000mm, sheath white, nominal conductor cross-section 1.5mm², coding/contact insert white, pole marking L. N. PE.

View all
$11.20 USD
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 46 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Wago Winsta Midi 771 patch cable inst.bare building installation, design side 1 mating plug (female), design side 2 plug, type made-up cable connection cable, total length 1000mm, sheath white, nominal conductor cross-section 1.5mm², coding/contact insert white, pole marking L. N. PE.

Specifications

Rated voltage (V)
250
Rated current (A)
16
Number of poles
3
Degree of protection (IP)i
IP20
Type of finished cable
Other
Type side 1
Bus
Type side 2
Plug
Conductor end treatment
Ultrasonic compressed wire ends

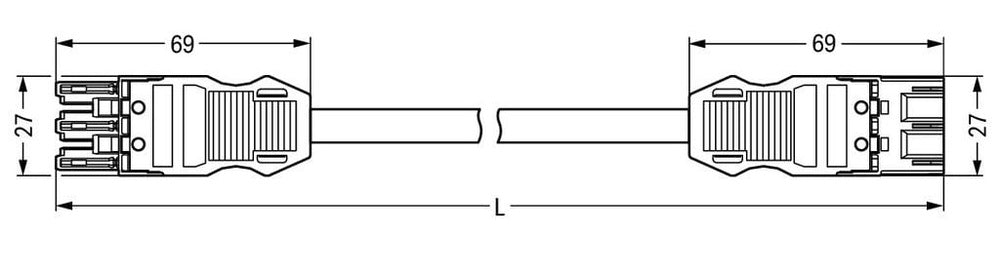

Total length (mm)
1000
Mechanical coding
Yes
Colour coding/contact insert
White
Colour housing
White
Cable type
H05VV-F
Cable diameter (mm)
7.4 mm to 9.4 mm
Colour outer sheath
White
Pole codification
L, N, PE
Nominal cross section conductor (mm²)
1.5
Locking mechanism
Separate
Insulating piece permanent temperature-resistant (°C)
105
Cable permanent temperature-resistant to (°C)
70
