Wago Fuse Clamp - 282-698/281-434 [25 Pieces]

Wago Fuse Clamp - 282-698/281-434 [25 Pieces]
Wago Fuse Clamp - 282-698/281-434 [25 Pieces]
Wago Fuse Clamp - 282-698/281-434 [25 Pieces]
Wago Fuse Clamp - 282-698/281-434 [25 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E2A8M-X25
Brand: Wago
Mfr. Part: 282-698/281-434

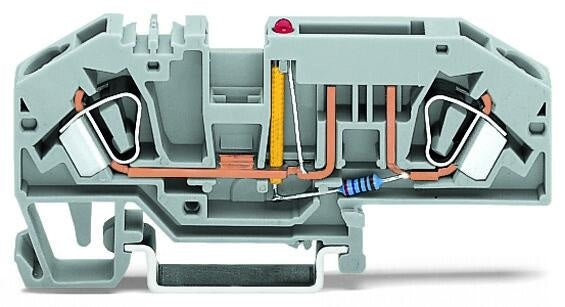

2-conductor fuse terminal block, for automotive blade-style fuses, with test option, with blown fuse indication by led, 24 v, for din-rail 35 x 15 and 35 x 7.5, 6 mm², cage clamp, 6,00 mm², gray.

View all
$376.30
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

2-conductor fuse terminal block, for automotive blade-style fuses, with test option, with blown fuse indication by led, 24 v, for din-rail 35 x 15 and 35 x 7.5, 6 mm², cage clamp, 6,00 mm², gray.

Downloads

Specifications

Type of fuse insert
Blade fuse
Type of fuse holder
Pluggable
Type of indication element for defect indication
LED
Supply voltage for defect-indication (V)
24 V to 24 V
Voltage type for defect indication
DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.2 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.5 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²)
0.2 mm² to 6 mm²
Rated current In (A)
25
Rated voltage (V)
400
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
8
Height (mm)
The product's height without packaging.
85
Depth (mm)
The product's depth without packaging.
33.5
Closing plate required
Yes
Color
Grey
