Reference: E2A84
Brand: Wago
Mfr. Part: 282-696

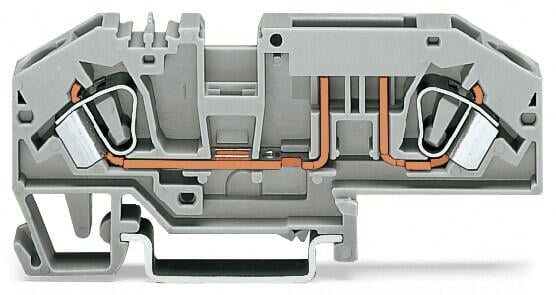

Cage clamp - 282 series. Feed-through din rail terminal connections for din rail mounting. These conductor-through terminals feature cage clamp technology for ultra-quick connection. Features and benefits. Din rail mounting on ts 35 rail. Front-wired. Intermediate or end plates are also available. 2 conductors. 282 series.

View all
$9.99
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Cage clamp - 282 series. Feed-through din rail terminal connections for din rail mounting. These conductor-through terminals feature cage clamp technology for ultra-quick connection. Features and benefits. Din rail mounting on ts 35 rail. Front-wired. Intermediate or end plates are also available. 2 conductors. 282 series.

Downloads

Product data sheet (EN)
pdf
Download

Specifications

Type of fuse insert
Blade fuse
Type of fuse holder
Pluggable
Type of indication element for defect indication
None
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.2 mm² to 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.5 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²)
0.2 mm² to 6 mm²
Rated current In (A)
25
Rated voltage (V)
400
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
8
Height (mm)
The product's height without packaging.
85
Depth (mm)
The product's depth without packaging.
33.5
Closing plate required
Yes
Color
Grey
