Reference: E3URB
Brand: Wago
Mfr. Part: 788-312

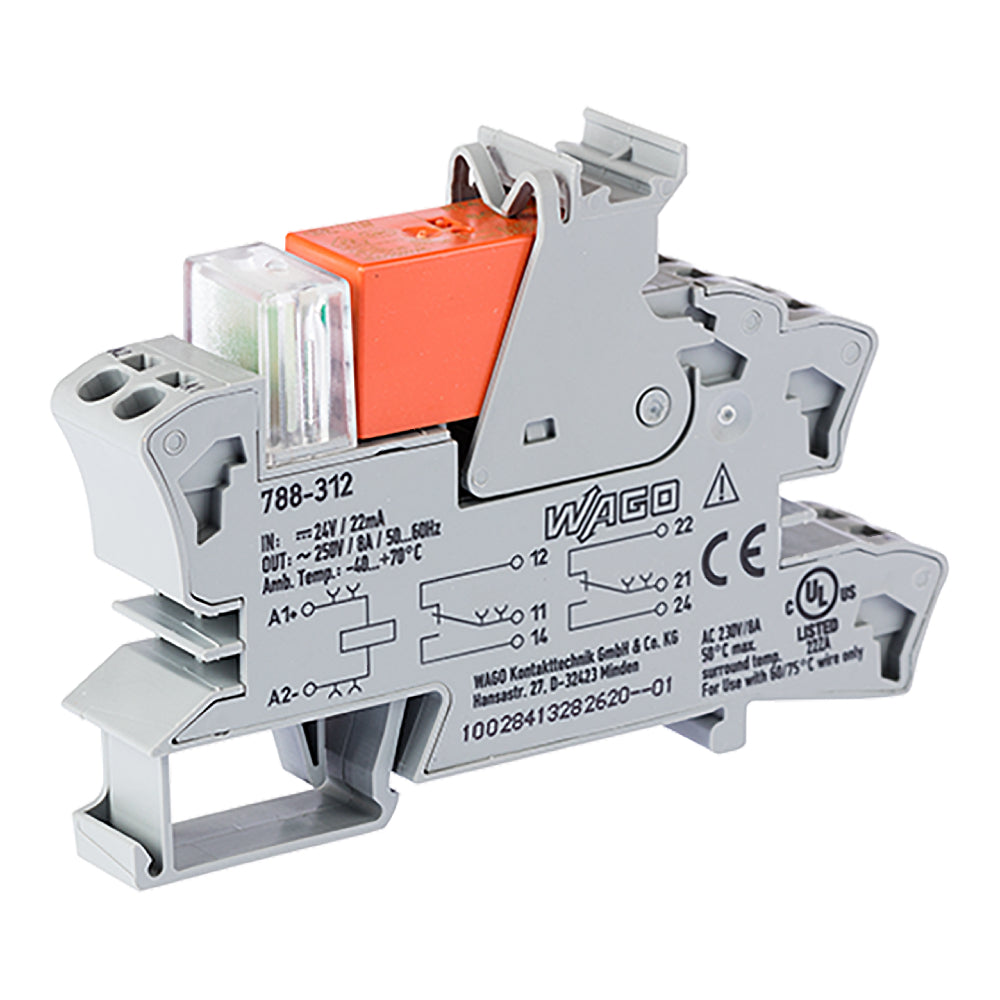

Industrial relay module featuring dual changeover contacts with 24VDC nominal input voltage and 8A continuous current rating. Equipped with red LED status indicator and push-in CAGE CLAMP connections. Compact 15mm width design with IP20 protection rating. Operating temperature range -40°C to 50°C with reinforced isolation between coil and contacts.

View all
$11.71 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

Industrial relay module featuring dual changeover contacts with 24VDC nominal input voltage and 8A continuous current rating. Equipped with red LED status indicator and push-in CAGE CLAMP connections. Compact 15mm width design with IP20 protection rating. Operating temperature range -40°C to 50°C with reinforced isolation between coil and contacts.

Pros:

  • 8A continuous current rating with 15A peak capability
  • Push-in CAGE CLAMP for quick reliable connections
  • Clear status indication via red LED
  • Wide operating temperature range -40°C to 50°C

Specifications

Electrical connectioni
Spring clamp connection
With detachable clamps
No
Nominal current
8 A
Rated control supply voltage Us at DC
24..24 V
Voltage type for actuating
DC
Drive, polarization
Polarized
Drive, switching attitude
Mono stable
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0

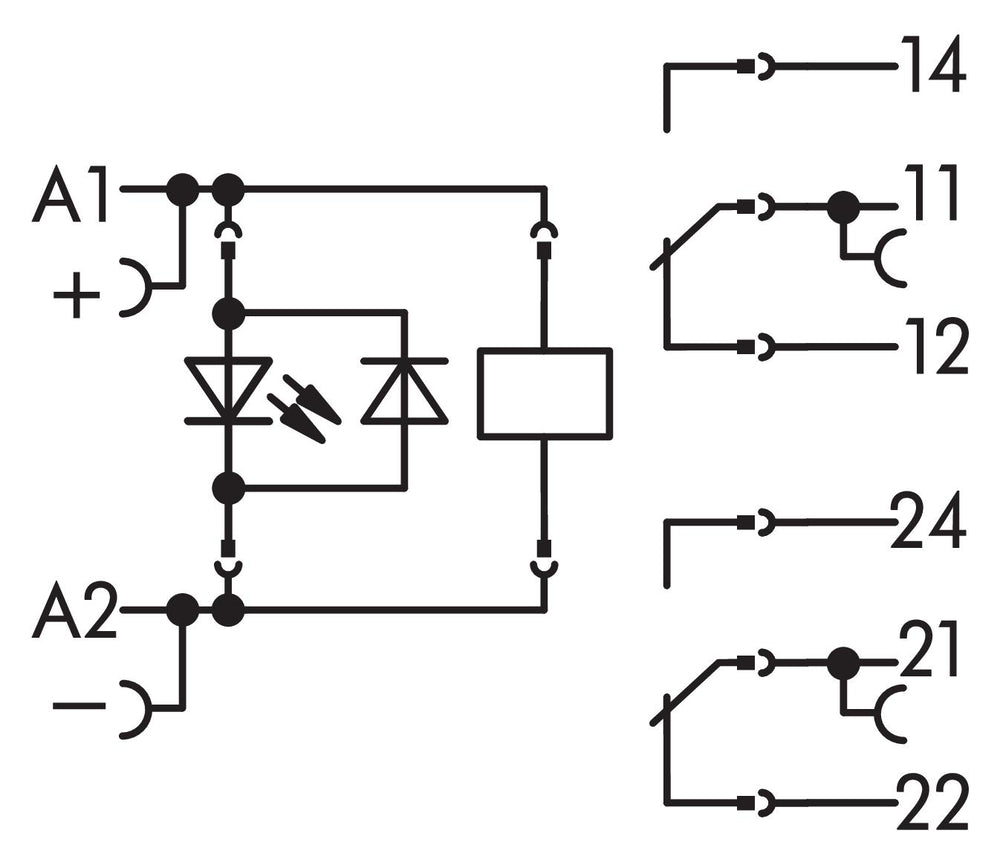

Number of contacts as change-over contact
2
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
Yes
With LED indication
Yes
Material of contact surface
Silver
Degree of protection (IP)i
IP20

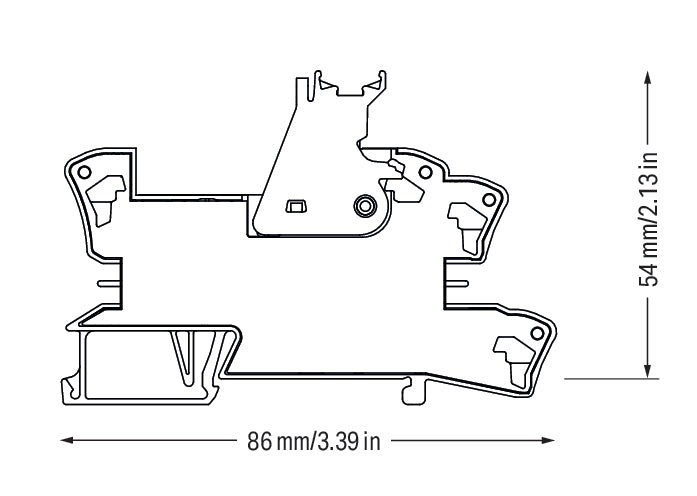

Widthi
15 mm
Heighti
86 mm
Depthi
54 mm
