Reference: E3TUX
Brand: Wago
Mfr. Part: 770-114

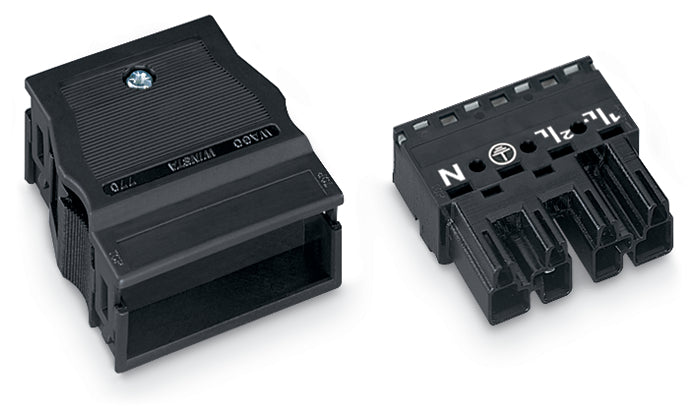

Professional 4-pole electrical connector featuring integrated strain relief housing designed for secure cable management. Compatible with 4.00 mm² wire cross-section and coded type A specifications. Engineered for reliable electrical connections in industrial and commercial applications.

View all
$6.85 USD
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Professional 4-pole electrical connector featuring integrated strain relief housing designed for secure cable management. Compatible with 4.00 mm² wire cross-section and coded type A specifications. Engineered for reliable electrical connections in industrial and commercial applications.

Pros:

  • Integrated strain relief for enhanced cable security
  • Compatible with 4.00 mm² wire specifications
  • Type A coding prevents incorrect connections

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Rated voltage (V)
400
Rated current (A)
25
Number of poles
4
Degree of protection (IP)i
IP20
Connection type
Spring clamp connection
Model
Plug
Cable diameter (mm)
9 mm to 13 mm
Connection cross section (fine-strand) (mm²)
0.5 mm² to 4 mm²
Connection cross section (solid-core) (mm²)
0.5 mm² to 4 mm²
Number of connections per pole
2
Mechanical coding
Yes
Colour coding/contact insert
Black
Locking mechanism
Separate
With strain relief
Yes
Max. continuous temperature resistance contact part (°C)
85
Max. continuous temperature resistance strain relief
105 °C
Materiali
Polyamide (PA)
Halogen free
No
Fire load
0.161 kWh
Contact material
CuSn
