Reference: E3VG2
Brand: Wago
Mfr. Part: 770-1105

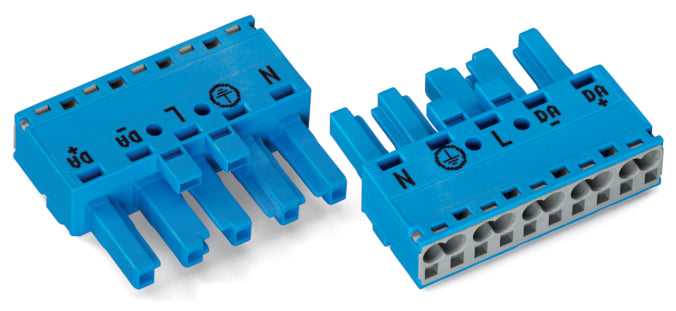

Professional 5-pole female connector socket from the Wago 770 series featuring integrated strain relief housing. Designed for 4.00 mm² cables with IP20 protection rating. Constructed with durable polyamide housing and includes mechanical coding for secure connections. Compatible with Winsta system.

View all
$9.40 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Professional 5-pole female connector socket from the Wago 770 series featuring integrated strain relief housing. Designed for 4.00 mm² cables with IP20 protection rating. Constructed with durable polyamide housing and includes mechanical coding for secure connections. Compatible with Winsta system.

Pros:

  • Integrated strain relief for cable protection
  • Supports 4.00 mm² cable cross-section
  • Mechanical coding prevents incorrect connections
  • IP20 rated protection

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Rated voltage (V)
400
Rated current (A)
25
Number of poles
5
Degree of protection (IP)i
IP20
Connection type
Spring clamp connection
Model
Bus
Connection cross section (fine-strand) (mm²)
0.5 mm² to 4 mm²
Connection cross section (solid-core) (mm²)
0.5 mm² to 4 mm²
Number of connections per pole
2
Mechanical coding
Yes
Colour coding/contact insert
Blue
Locking mechanism
Separate
With strain relief
No
Max. continuous temperature resistance contact part (°C)
85
Max. continuous temperature resistance strain relief (°C)
105
Materiali
Polyamide (PA)
Halogen free
No
Fire load (kWh)
0.072
Contact material
CuSn
Surface treatment contacts
Tinned
