WAGO 5-Pole T-Distribution Connector With Locking Clip - 770-620

WAGO 5-Pole T-Distribution Connector With Locking Clip - 770-620
WAGO 5-Pole T-Distribution Connector With Locking Clip - 770-620
WAGO 5-Pole T-Distribution Connector With Locking Clip - 770-620
WAGO 5-Pole T-Distribution Connector With Locking Clip - 770-620
Reference: E3UHR
Brand: Wago
Mfr. Part: 770-620

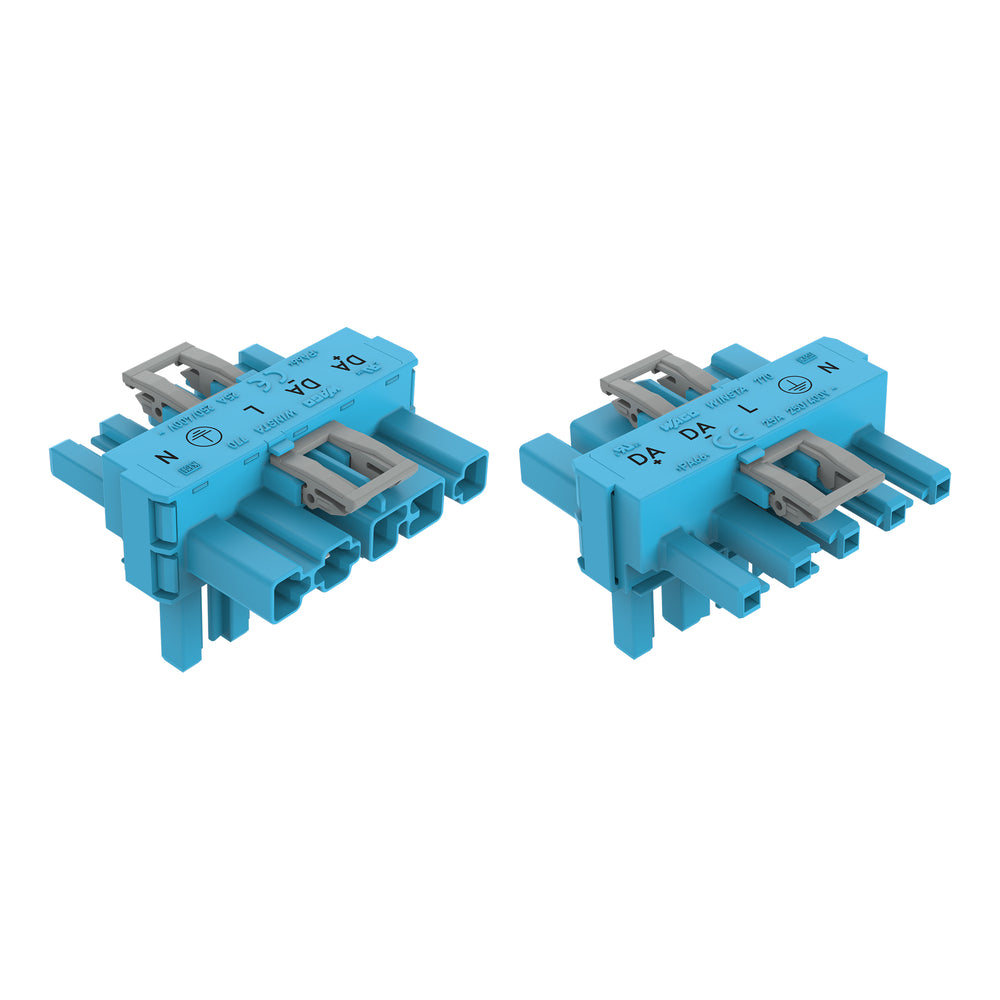

Professional-grade 5-pole T-distribution connector featuring one input and two output ports with three integrated locking levers for secure flying lead connections. Designed with blue color coding and equipped with a specialized locking clip system for enhanced connection stability.

View all
$11.15 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Professional-grade 5-pole T-distribution connector featuring one input and two output ports with three integrated locking levers for secure flying lead connections. Designed with blue color coding and equipped with a specialized locking clip system for enhanced connection stability.

Pros:

  • Dual output ports for efficient distribution
  • Secure triple locking lever system
  • Color-coded design for easy identification
  • Integrated connection stability clip

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Rated voltage
400 V
Rated current
25 A
Rated current to luminaire
25 A
Number of poles
5
Degree of protection (IP)i
IP20
Number of inputs
5
Number of outputs
10
Mechanical coding
Yes
Colour coding/contact insert
Blue
Locking mechanism
Integrated in plug-in connector
Halogen free
Yes
Max. continuous temperature resistance contact part
85 °C
Max. continuous temperature resistance strain relief
105 °C
Materiali
Polyamide (PA)
Fire load
0.129 kWh
Contact material
CuSn
Surface treatment contacts
Tinned
Pollution degree
3
Continuity resistor
1 mOhm
Rated surge voltage
6 kV
