Image may vary slightly
See specifications for accurate information.
Reference: E2J4N
Brand: Wago
Mfr. Part: 282-122

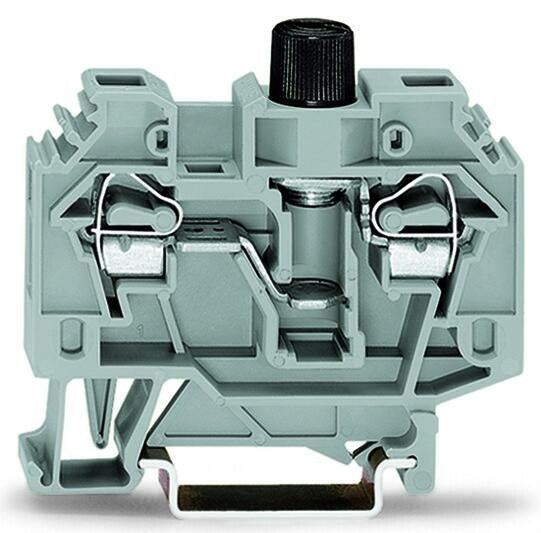

2-conductor fuse terminal block, for 5 x 20 mm miniature metric fuse, without blown fuse indication, for din-rail 35 x 15 and 35 x 7.5, 6 mm², cage clamp, 6,00 mm², gray.

View all
$431.76
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

2-conductor fuse terminal block, for 5 x 20 mm miniature metric fuse, without blown fuse indication, for din-rail 35 x 15 and 35 x 7.5, 6 mm², cage clamp, 6,00 mm², gray.

Downloads

Specifications

Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Screwable
Type of indication element for defect indication
None
Supply voltage for defect-indication (V)
0 V to 0 V
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.2 mm² to 6 mm²
Connectable conductor cross section solid-core (mm²)
0.2 mm² to 6 mm²
Connectable conductor cross section multi-wired (mm²)
0.2 mm² to 6 mm²
Rated current In (A)
10
Rated voltage (V)
500
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
105 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
13
Height (mm)
The product's height without packaging.
62
Depth (mm)
The product's depth without packaging.
54.5
Closing plate required
Yes
Color
Grey
