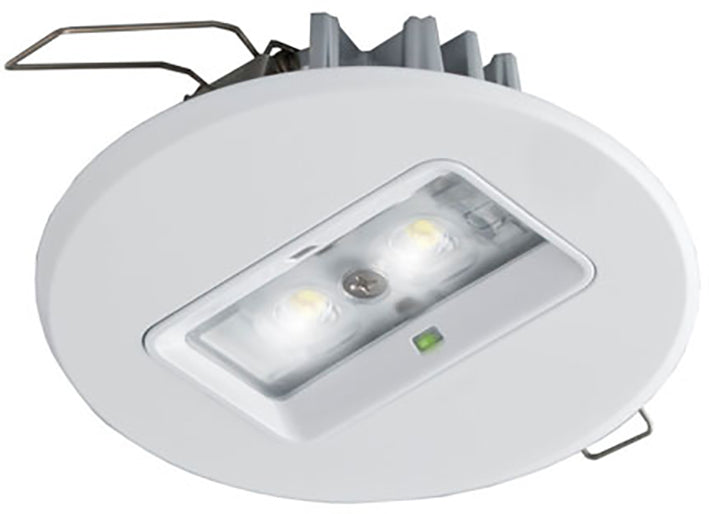

Van Lien Evago Emergency Lighting Fixture - 7TCA091160R0338

Van Lien Evago Emergency Lighting Fixture - 7TCA091160R0338
Van Lien Evago Emergency Lighting Fixture - 7TCA091160R0338
Image may vary slightly
See specifications for accurate information.
Reference: E3D7P
Brand: Van Lien
Mfr. Part: 7TCA091160R0338

Van Lien Evago R emergency lighting luminaire, (lxw) 316x100mm, effective luminous flux according to IEC 245lm, luminous flux in standby mode 245lm, temperature 5600K, recessed, power supply system decentralized (individual b, test device automatic, permanent operation yes (switchable), housing white.

View all
Note: product cannot be returned
$243.82
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Van Lien Evago R emergency lighting luminaire, (lxw) 316x100mm, effective luminous flux according to IEC 245lm, luminous flux in standby mode 245lm, temperature 5600K, recessed, power supply system decentralized (individual b, test device automatic, permanent operation yes (switchable), housing white.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Mounting method
Built-in
Function
Escape route lighting
Suitable for labelling type
Other
With pictogram
No
Monitoring equipment
Automatic self test
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
With remote control
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
1
Lamp holder
Other
Number of lighting heads
1
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Colour housing
White
Material cover
Plastic, transparent
Voltage-type
AC
Nominal voltage (V)
220 V to 240 V
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
Light distributor
Focal lens
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP42
Protection class
II
Rated ambient temperature according to IEC62722-2-1 (°C)
0 °C to 40 °C
Max. system power (W)
3
Rated luminous flux according to IEC 62722-2-1 (lm)
245
Luminous flux in standby mode (lm)
245
Colour temperature (K)
5600 K to 5600 K
Power factor
0.85
Recognition distance (m)
0
Nominal operation time (h)
1 h to 1 h
Width (mm)
The product's width without packaging.
100
Height/depth (mm)
78
Length (mm)
316
Outer-diameter (mm)
Outer diameter of the component.
100
Built-in width (mm)
68
Built-in height/depth (mm)
35
Built-in length (mm)
316
Built-in diameter (mm)
68
Type of wiring
Ending
Number of poles
7
Conductor cross section (mm²)
2.5
Connection type
Screw connection
