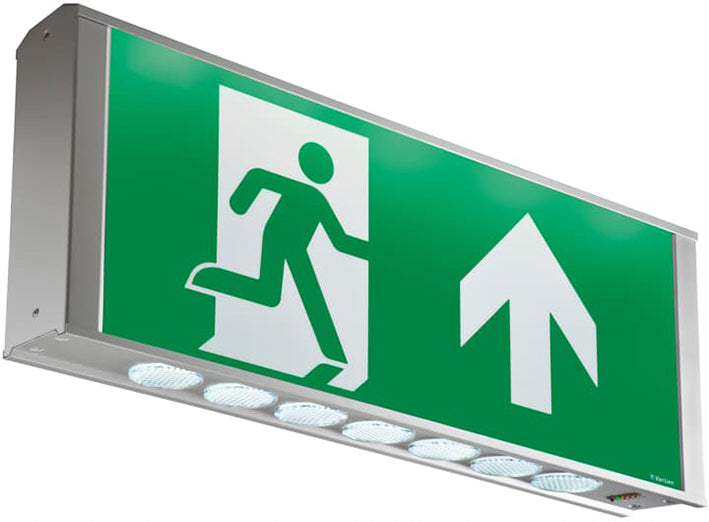

Van Lien Alulux Emergency Lighting Fixture - 7TCA091130R0333

Van Lien Alulux Emergency Lighting Fixture - 7TCA091130R0333
Van Lien Alulux Emergency Lighting Fixture - 7TCA091130R0333
Image may vary slightly
See specifications for accurate information.
Reference: E3D7V
Brand: Van Lien
Mfr. Part: 7TCA091130R0333

Van Lien Alulux TA emergency lighting fixture, (lxw) 725x300mm, temperature 6350K, wall mounted, power supply system central (central batter, testing device manual, permanent operation yes (switchable), housing aluminum, protection rating (IP) IP20, rated voltage 220 - 230V.

View all
Note: product cannot be returned
$400.50
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Van Lien Alulux TA emergency lighting fixture, (lxw) 725x300mm, temperature 6350K, wall mounted, power supply system central (central batter, testing device manual, permanent operation yes (switchable), housing aluminum, protection rating (IP) IP20, rated voltage 220 - 230V.

Downloads

Management, operation and maintenance document (EN)
pdf
Download
Other Documentation (EN)
pdf
Download

Specifications

Mounting method
Wall surface mounted
Function
Escape route signage
Suitable for labelling type
Insert sheet/plate
Type of indicator
Single/double-sided
With pictogram
No
Monitoring equipment
None
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
With remote control
No
Power supply system
Central (central battery)
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of lamps
4
Lamp holder
Other
Number of lighting heads
1
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Colour housing
Aluminium
Material cover
Plastic, structured
Voltage-type
AC/DC
Nominal voltage (V)
220 V to 230 V
Exchangeable control gear
Yes
Light distributor
Refractor lens
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Protection class
I
Rated ambient temperature according to IEC62722-2-1 (°C)
5 °C to 25 °C
Colour temperature (K)
6350 K to 6350 K
Power factor
0.58
Recognition distance (m)
56
Width (mm)
The product's width without packaging.
300
Height/depth (mm)
100
Length (mm)
725
Outer-diameter (mm)
Outer diameter of the component.
0
Built-in height/depth (mm)
0
Built-in diameter (mm)
0
Type of wiring
Ending
Number of poles
4
Conductor cross section (mm²)
2.5
Connection type
Screw connection
