Image may vary slightly
See specifications for accurate information.
Reference: V2S3E
Brand: Tameson

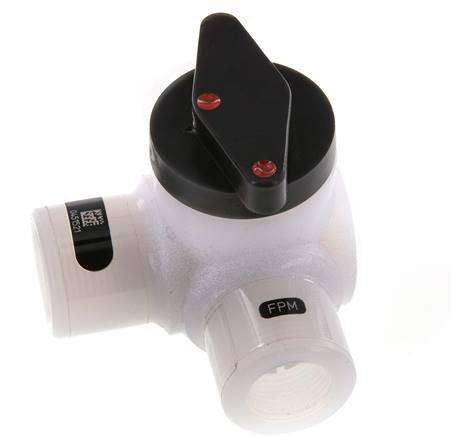

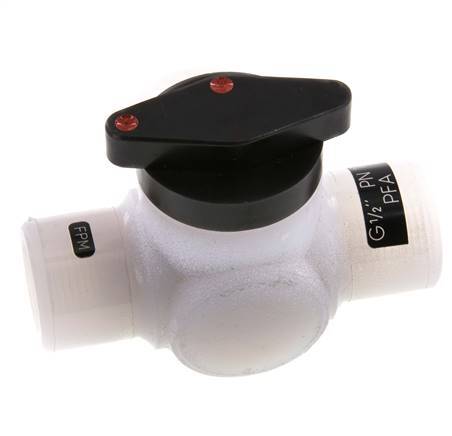

This G 1/2 inch 3-way ball valve is made of PFA with an FKM seal. The maximum operating pressure is 10 bar (145 psi) and the minimal operating pressure is -0.95 bar (-14 psi), making it suitable for vacuum. The valve is suitable for operating temperatures between -40 and 180 °C (-40 to 356 °F).

View all
$1337.12
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

501 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This G 1/2 inch 3-way ball valve is made of PFA with an FKM seal. The maximum operating pressure is 10 bar (145 psi) and the minimal operating pressure is -0.95 bar (-14 psi), making it suitable for vacuum. The valve is suitable for operating temperatures between -40 and 180 °C (-40 to 356 °F).

Pros:

  • Plastic ball valve is often a cost-effective alternative to a metal housing.
  • Plastic is lightweight, strong, and durable giving it a long service life.

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/2 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
FKM (FPM)
Vacuum (bar)
Suitable for vacuum.
-0.95
Ball bore
L-port
Max pressure difference at 20 °C (bar)
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
180
Valve bore (mm)
10
Ball valve feature
For vacuum
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
PFA
Article compression class
PN 10
