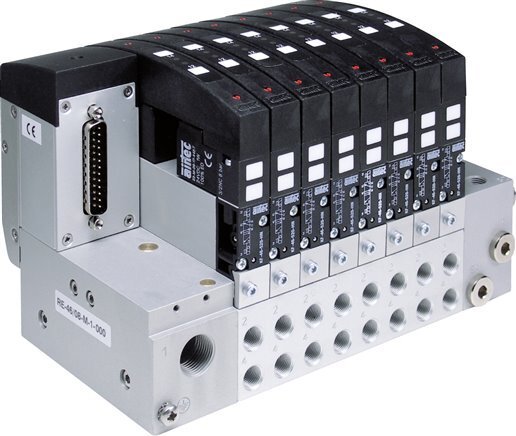

14x Pneumatic Valve Terminal 24V DC 3-8bar/42-112psi Multi-pole (44-pin) Airtec

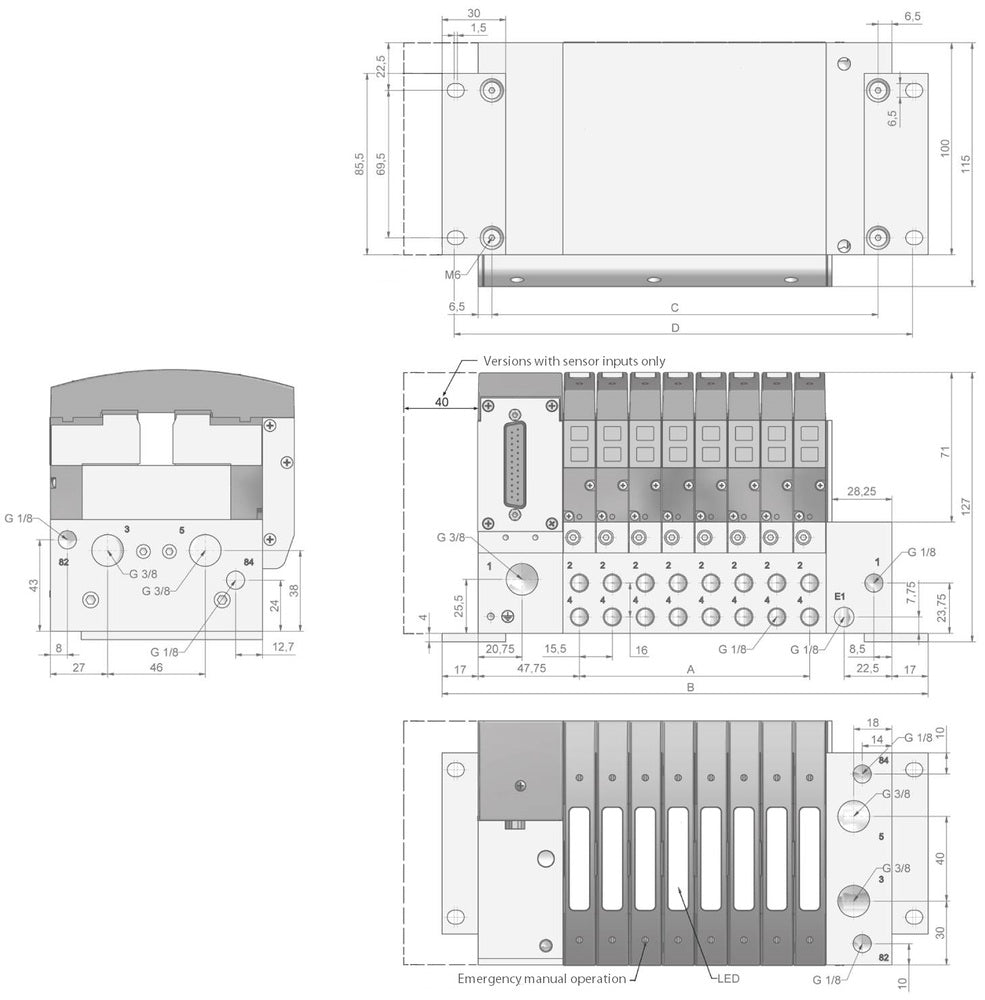

Each station has an LED status indicator and protection circuit. All stations can be fitted with valves from the RE46 model valves. A station can accommodate either 2 x 3/2-way, 1 x 5/2-way or 1 x 5/3-way valves. All valves receive compressed air (connection 1) directly from the front. All valves receive air from one port (1) located on the front. The appliance ports (2+4) for all valves are also on the front. All valves share the same vent ducts (3+5) which are located on the top and side. The G3/8" venting ports are sealed with plugs on delivery.
- Regular price
- $649.45
Description
Each station has an LED status indicator and protection circuit. All stations can be fitted with valves from the RE46 model valves. A station can accommodate either 2 x 3/2-way, 1 x 5/2-way or 1 x 5/3-way valves. All valves receive compressed air (connection 1) directly from the front. All valves receive air from one port (1) located on the front. The appliance ports (2+4) for all valves are also on the front. All valves share the same vent ducts (3+5) which are located on the top and side. The G3/8" venting ports are sealed with plugs on delivery.
The function of the valves determines how they are placed. Mount the valves in this order, starting from the multi-pole connector: 5/3-way, 5/2-way, 3/2-way and then blind plates. You have to order the valves and connection cable separately. Multi-pole cables can be used to control up to a maximum of 20 stations.
Pros:
- Fast and simple connection thanks to the multipole or bus connection
- Compact and modular design
- Safe and robust thanks to the protection circuits, LED indicators and IP 65 rating
- Replace valves easily without disassembly of the terminal
- Fit each station with either two 3/2 valves, one 5/2 valve (mono-stable or bi-stable), or one 5/3 valve
